CFA2500W6 02 – TOP AND CONSOLE
Written by
in

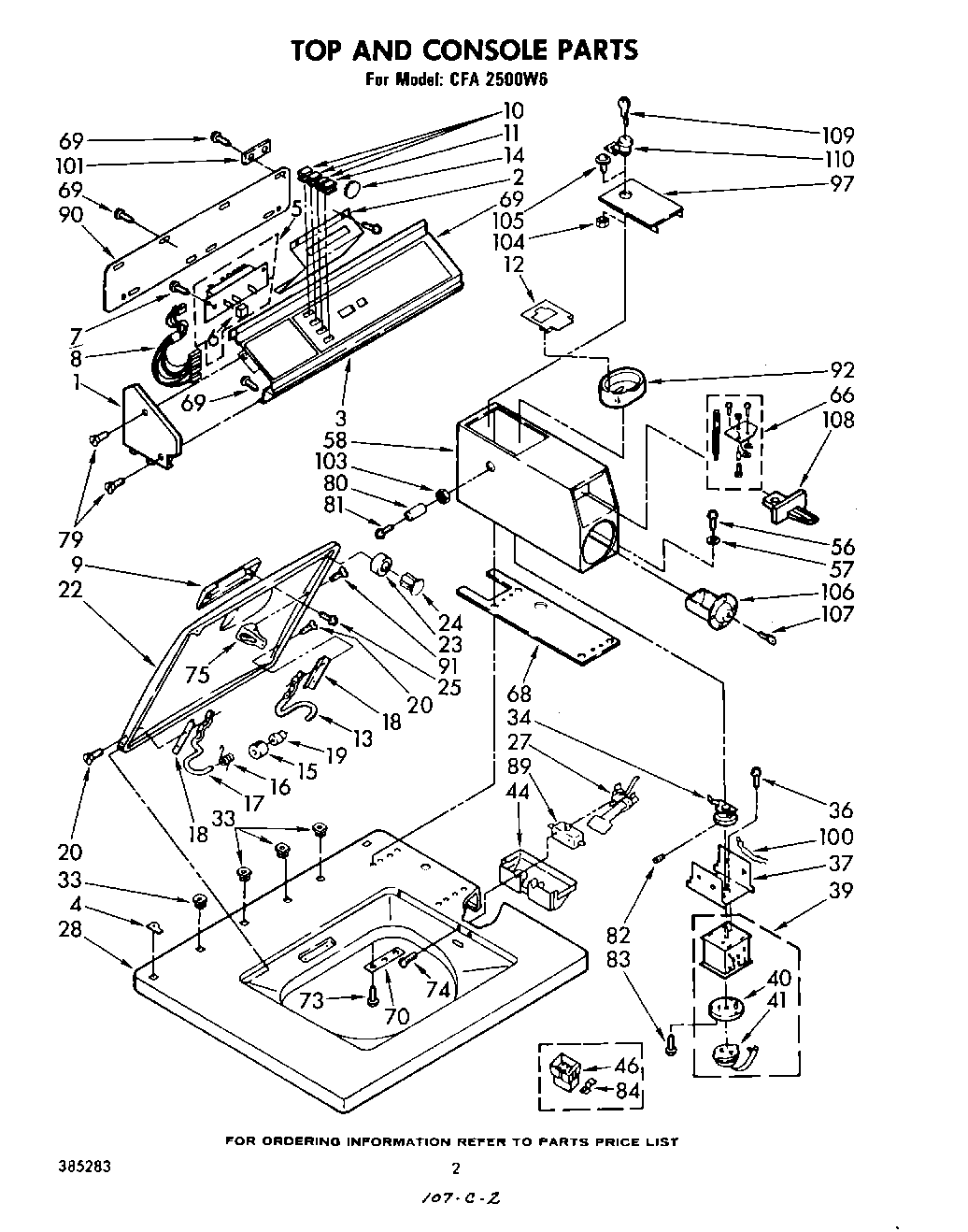

CFA2500W6 02 – TOP AND CONSOLE
Products
Position
Product
WPL ARI21404A4
WPL 37803
WPL 37560
WPL 37559
WPL ARI21405A3
WPL 37557
WPL ARI21403A2
WPL 37737
1
Cap, End (L.H.)
2
Bracket, Control
3
Billboard, Console
4
Nut, Push-In (1)
5
Switch, Cycle Selector
6
Pushbutton (5)
7
WP965173 Whirlpool Dishwasher Screw
8
Indicator Lights Assembly
9
Handle, Lid
10
Lens, Amber (3)
11
Lens, Yellow (1)
12
Shield, Coin Funnel
13
WP91770 Whirlpool Hinge
14
Plug, Button
15
Bumper, Lid Hinge
16
Spring, Hinge
17
Hinge, L.H.
18
WP21097 Whirlpool Pad
19
WP21258 Whirlpool Washer Lid Hinge Bearing
20
SCREW
22
Lid (New Avocado)
22
Lid (White)
22
Lid (Golden Harvest)
22
Lid (Almond)
23
BUMPER
24
WP356907 Whirlpool Rivet
25
WP355214 Whirlpool Screw
27
Switch Actuator Assembly
28
Top (White)
28
Top (Almond)
28
Top (Golden Harvest)
28
Top (New Avocado)
33
Nut, Push-In (2)
34
Clutch, Timer
36
WP356418 Whirlpool Screw
37
Bracket, Timer
39
Timer, 60 Hz.
40
Escapement
41
Motor, Timer
44
WP359231 Whirlpool Shield
46
Cap, Terminal
56
Bolt, 5/16-24 x 3/4 (4)
57
Lockwasher, 5/16
58
Meter Case Assembly (White)
58
Meter Case Assembly (Almond)
58
Meter Case Assembly (Golden Harvest)
58
Meter Case Assembly (New Avocado)
66
Slide Extension Bag Assembly
68
WP3954812 Whirlpool Cushion
69
SCREW
70
Plate & Nut Assembly
73
Screw
74
Screw & Washer, Lid Switch (2)
75
Strike, Lid Switch
79
WP355515 Whirlpool Screw
80
Stop, Lid
81
Screw, 10-24 x 1-1/4
82
Setscrew, 10-32
83
WP90767 Whirlpool Screw
84
WP90016 Whirlpool Clip
89
W10820036 Whirlpool Door Switch Kit
90
WPL 356441
91
Screw & Washer
92
WPL 355446
97
W11283272 Whirlpool Washer Dryer Meter Case Access Door
97
WPL 359501
97
WPL 377867
97
WPL 377868
100
WPL 355635
101
WPL 357856
103
W10080180 Whirlpool Nut
104
WP90406 Whirlpool Nut
105
Screw & Washer
106
WPL ARI21400A3
107
WPL 814006
107
WPL 814001
107
WPL 814002
107
WPL 814004
107
WPL 814005
107
WPW10208653 Whirlpool Insulation
107
WPL ARI21401A6
108
WPL 111010
108
WPL 121212
108
WPL 121030
108
WPL 121010
108
WPL ARI21402A7
108
WPL 111115
108
WPL 111111
109
WPL 820
110
WPL 20198
110
WPL 681124
←
