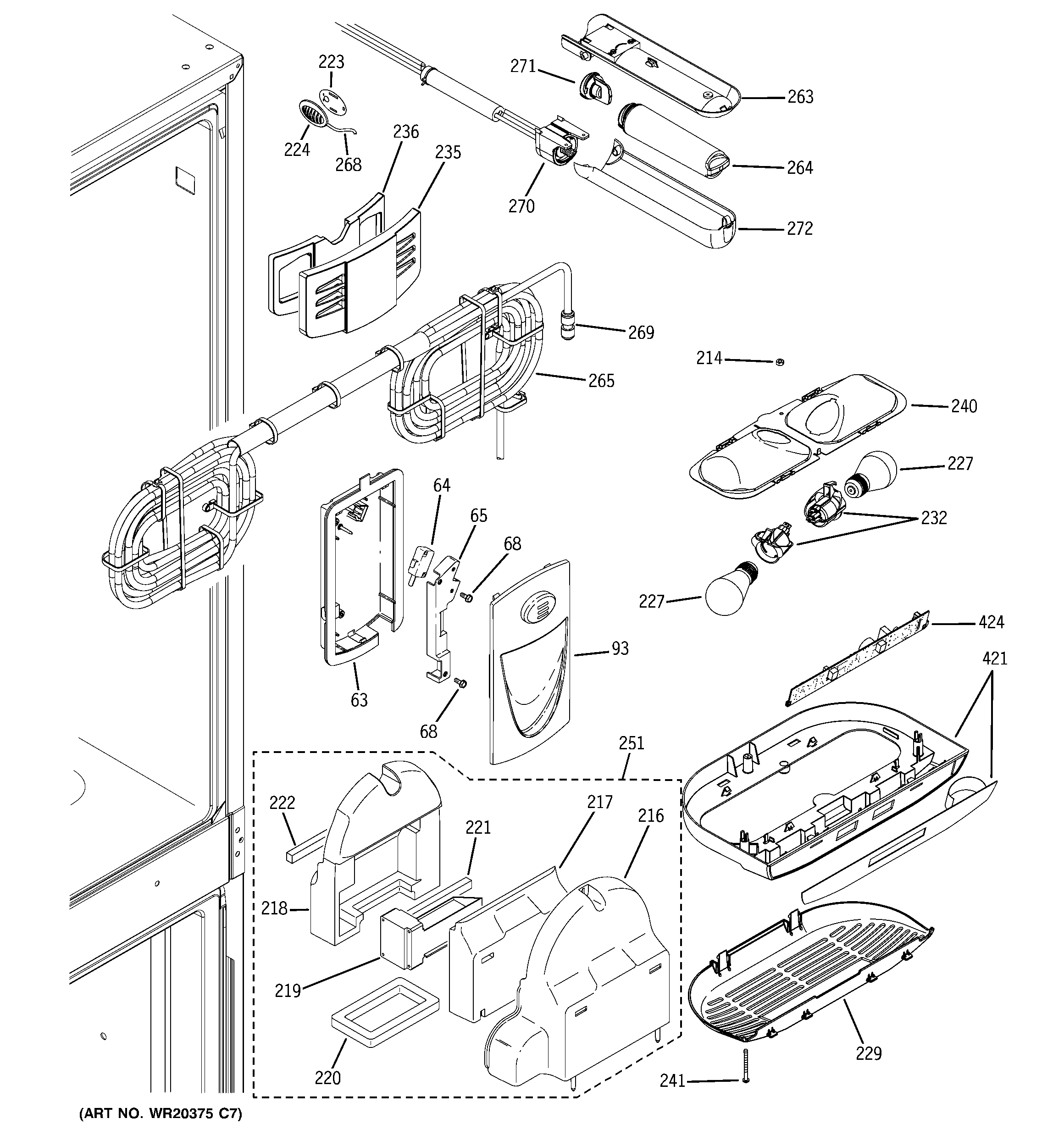

CFCP1NIXBSS FRESH FOOD SECTION

CFCP1NIXBSS FRESH FOOD SECTION

Written by

in

CFCP1NIXBSS FRESH FOOD SECTION

Products

PositionProduct
63GEN WR17X11564
64WR23X10333 GE Refrigerator Actuator Switch
65WR02X11614 GE Refrigerator Cover Harness
68WE02X10011 GE Screw
93WR55X10794 GE Refrigerator Dispenser Assembly
214WR01X10212 GE Refrigerator 8-32 Nut
216WR17X12260 GE Air Tower Cover
217WR17X12261 GE EPS Air Tower
218WR17X12262 GE Refrigerator Air Tower Back EPS
219AIR DAMPER ASSM
220GASKET FF INLET
221WR14X10228 GE Refrigerator Tower Gasket
222GASKET TOWER FF
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
227RANGE ONLY 40W 120V APPL BULB
229GEN WR17X12264
232WR2X9391 GE Socket and Terminal
235GEN WR17X12501
236WR17X12266 GE Refrigerator EPS Vent Duct Vertical
240WR02X12387 GE Refrigerator Reflector
241GEN WR01X1792
263GEN WR17X12300
264GSWF GE Replacement GE SmartWater Water Filter Cartridge
265WR17X20006 GE Refrigerator Single Coil Water Tank
268WR55X10025 GE Refrigerator Temperature Sensor
269WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
270WR17X12301 GE Refrigerator Filter and Tube Assembly
271WR17X22073 GE Refrigerator GSWF Bypass
272WR17X12299 GE Refrigerator Lower Filter Cover Assembly
421GEN WR55X10689
424WR55X10684 GE Refrigerator Temperature Control Board Assembly
