CFCP1NIZCSS DOORS

CFCP1NIZCSS DOORS

Written by

in

CFCP1NIZCSS DOORS

Products

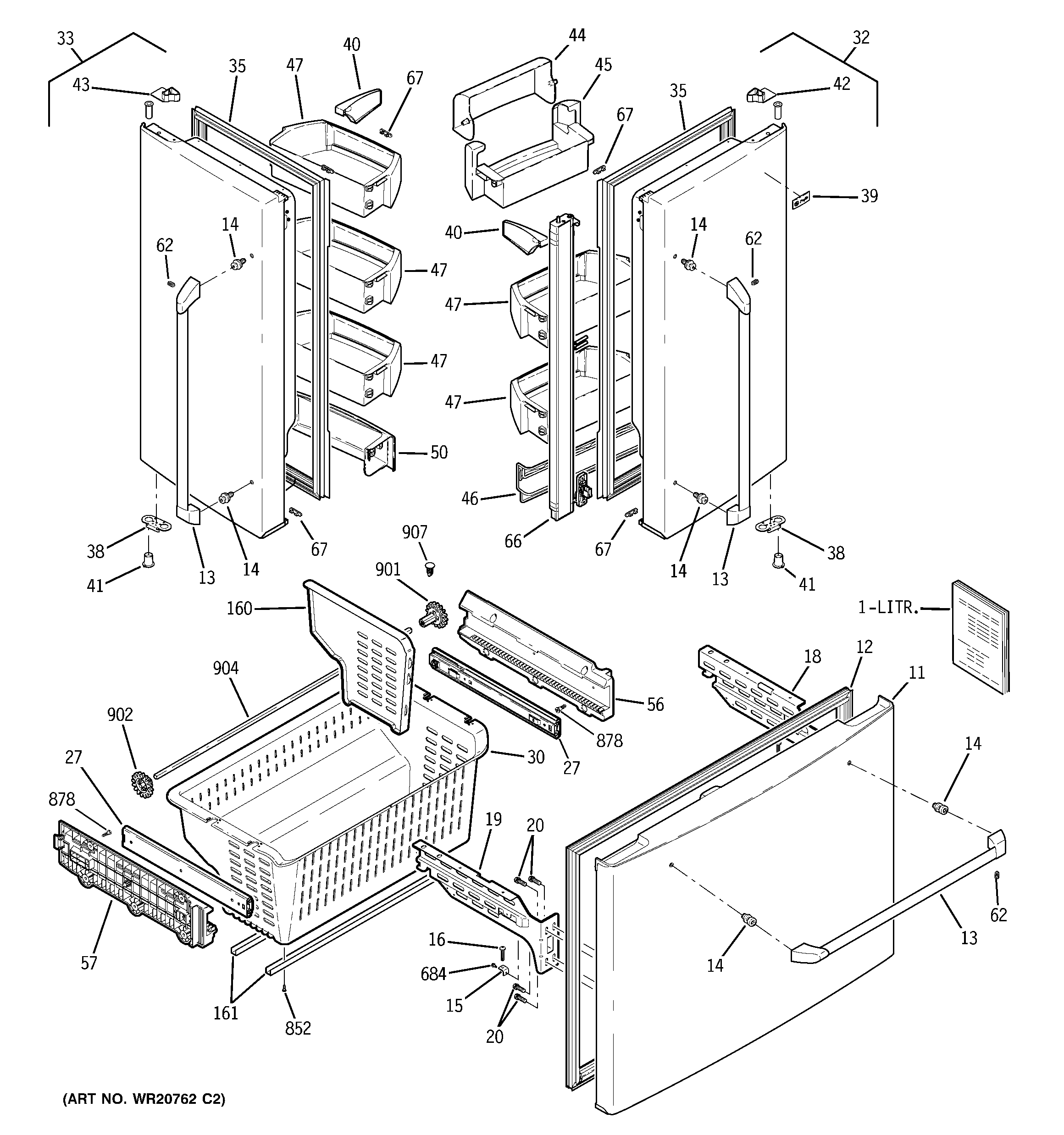

Position	Product
1	PM MINI WIRING MANUAL
1	GEN 49-60626
11	DOOR FOAM ASM FZ FLAT
12	WR14X10330 GE Refrigerator Gasket
13	GEN WR12X10983
14	WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
15	WR02X12870 GE Refrigerator Bracket Support
16	WR01X10843 GE Refrigerator 1/4-20 UNC Screw
18	WR02X13378 GE Refrigerator Lower Right Hand Slide Bracket
19	WR02X13379 GE Refrigerator Left Hand Lower Slide Bracket
20	WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
27	GEN WR17X12855
30	BASKET LOWER SD
32	GEN WR78X12703
33	DOOR FOAM ASM FLAT LH
35	WR14X10237 GE Refrigerator French Door Gasket with Flap
38	STOP DOOR BM
39	GEN WD34X11435
40	WR02X10582 GE Refrigerator Modu Snug R
41	WR02X12798 GE Refrigerator Door Thimble
42	WR02X12793 GE Refrigerator Cam Closure Right Hand
43	WR02X12794 GE Refrigerator Left Hand Cam Closure
44	WR02X12364 GE Refrigerator Clear Dairy Door
45	WR71X10871 GE Refrigerator Dairy Compartment
46	BEVERAGE RACK
47	WR71X10875 GE Refrigerator Module Shelf Assembly
50	WR17X12830 GE Refrigerator Fixed Shelf Module
56	WR02X13380 GE Refrigerator Rail Holder Lower Right Hand 21
57	WR02X13381 GE Refrigerator Lower Left Hand Rail Holder
62	WR01X10450 GE Refrigerator Screw Set
66	WR17X12753 GE Mullion Articulation
67	WR02X12469 GE Refrigerator French Door Bumper
160	WR02X13597 GE Refrigerator Divider Basket Bottom 21
161	WR02X13383 GE Refrigerator Stiffener
684	WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
852	WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
878	WR01X10939 GE Refrigerator Screw 10-14 PL FLT20 3/4 S
901	WR02X13387 GE Refrigerator Right Hand Gear Pinion
902	GEAR PINION LH
904	CROSS BAR PINION
907	WR01X10947 GE Refrigerator Fastener Push
