CFCP1NIZDSS CASE PARTS

CFCP1NIZDSS CASE PARTS

Written by

in

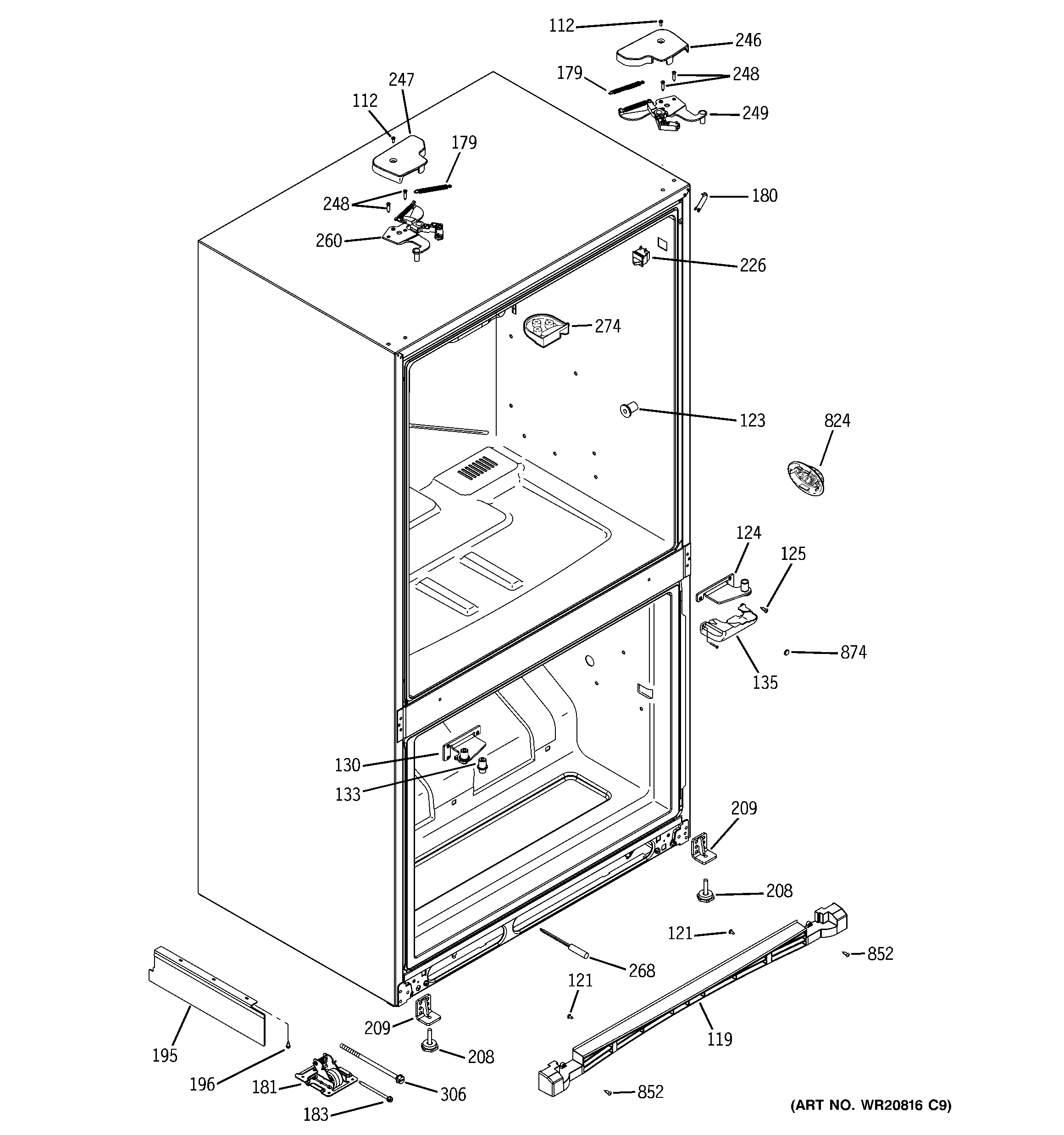

CFCP1NIZDSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GEN WR02X12799
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10430
125WR01X10683 GE Refrigerator Screw 12-24 TT HXT20 .90 S
130WR13X10431 GE Refrigerator Left Hand Center Hinge Assembly
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
135GEN WR02X12589
179WR01X10827 GE Refrigerator Closure Spring
180WR02X10781 GE Refrigerator Corner Cap Black
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
246GEN WR02X12388
247GEN WR02X12389
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249GEN WR13X10427
260WR13X10429 GE Refrigerator Hinge Closure Assembly
268WR55X10025 GE Refrigerator Temperature Sensor
274WR02X13442 GE Top Mullion Striker
306WR02X12271 GE Refrigerator Mobility Screw
824WR02X13224 GE Refrigerator Grille Sensor
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874GEN WR01X10855
