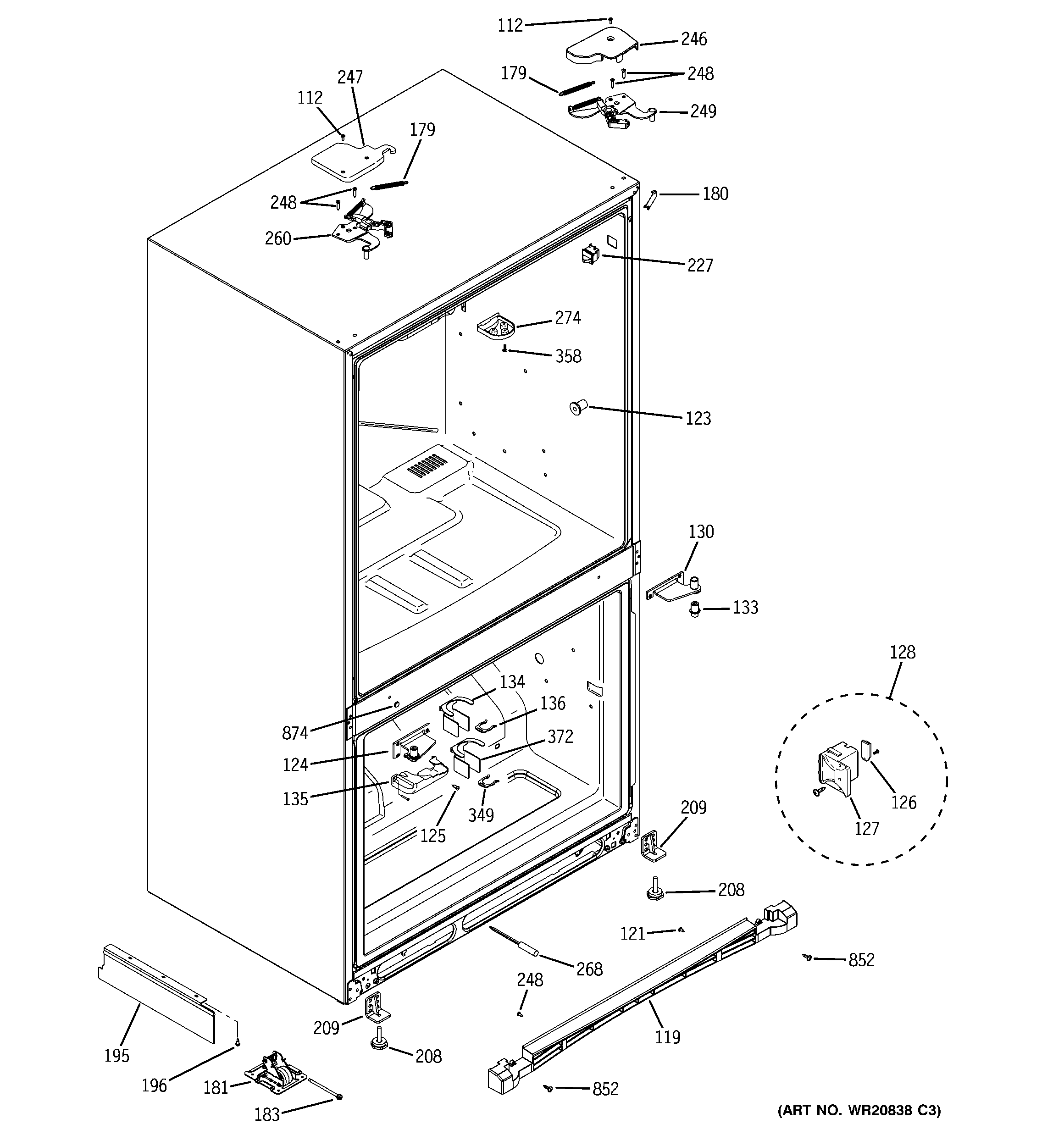

CFCP1RKBA SS CASE PARTS

CFCP1RKBA SS CASE PARTS

Written by

in

CFCP1RKBA SS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119WR02X12380 GE Refrigerator Base Grille Cover
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10934
125WR01X10683 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126WR02X12711 GE Refrigerator Humidity Sensor
127WR17X12443 GE Humidity Sensor Housing
128WR55X10748 GE Refrigerator Humidity Sensor Assembly
130GEN WR13X10935
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
134SUPPORT WATER LINE
135GEN WR02X13511
136CLIP LOCKING
179WR01X10827 GE Refrigerator Closure Spring
180WR02X10781 GE Refrigerator Corner Cap Black
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
227FREEZER LIGHT SWITCH
246GEN WR02X12388
247GEN WR02X13513
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249GEN WR13X10427
260GEN WR13X10936
268WR55X10025 GE Refrigerator Temperature Sensor
274STRIKER TOP MULLION
349SUPPORT WATER LINE
372CLIP LOCKING
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874WASHER HINGE
