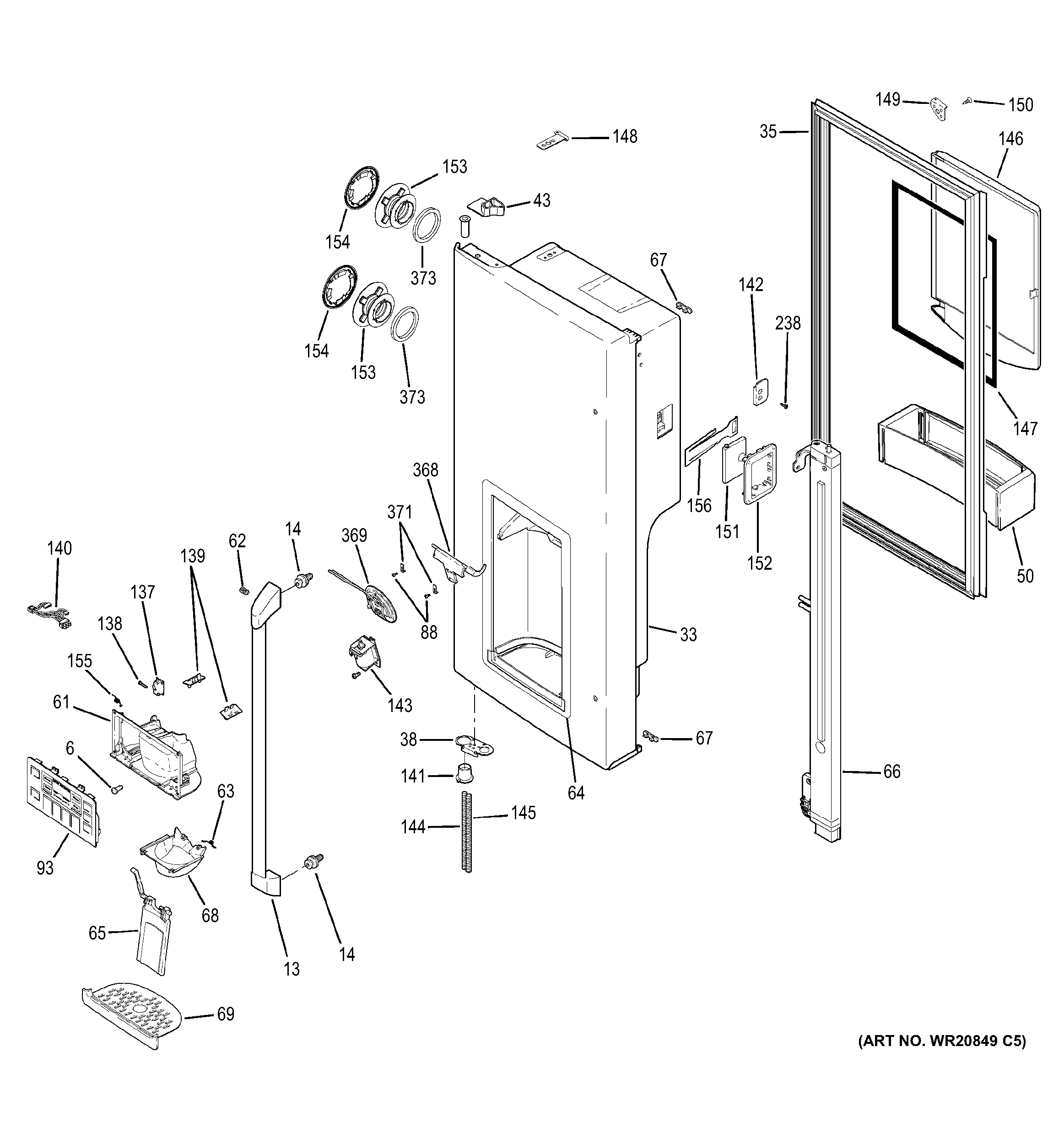

CFCP1RKBA SS DISPENSER DOOR

CFCP1RKBA SS DISPENSER DOOR

Written by

in

CFCP1RKBA SS DISPENSER DOOR

Products

PositionProduct
6WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
13GEN WR12X10983
14WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
33DOOR FOAM ASM FR FLAT LH
35WR14X10237 GE Refrigerator French Door Gasket with Flap
38GEN WR02X13521
43GEN WR02X13520
50MODULE SHELF ASM FF
61WR17X12771 GE Refrigerator Housing Shield Dispenser
62GEN WR02X12437
62WR17X12983 GE Refrigerator Ice Dispenser Funnel
63SPRING TORSION
64GEN WR38X10457
65PADDLE ASM
66GEN WR17X13009
67WR02X12469 GE Refrigerator French Door Bumper
69GEN WR17X12324
88WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
93WR55X11100 GE Refrigerator Interface Dispenser Assembly
137WR23X10783 GE Refrigerator Dispenser Micro Switch
138WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
139WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
140GEN WR23X10657
141GEN WR02X13512
142CLIP MULLION HINGE
143WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
144WR02X13488 GE Refrigerator Spring Water Conduit
145SPRING WATER CONDUIT
146WR17X12984 GE Refrigerator Door Ice Box Assembly
147GASKET ICEBOX DOOR
148DOOR ICEBOX HINGE TOP
149DOOR ICEBOX HINGE BOTTOM
150SCR 8-18 HI-LO FLP 1/2 S
151LATCH BUTTON
152LATCH TRIM
153GASKET RETAINER
154PORT GASKET
155SPRING DUCT DOOR
156LATCH HOUSING
156LATCH KEEPER
238WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
368WR17X10706 GE Refrigerator Door Crank Recess
369DUCT DOOR HEATER ASM
371WR2X8818 GE Refrigerator Retainer
373FOAM TAPE
