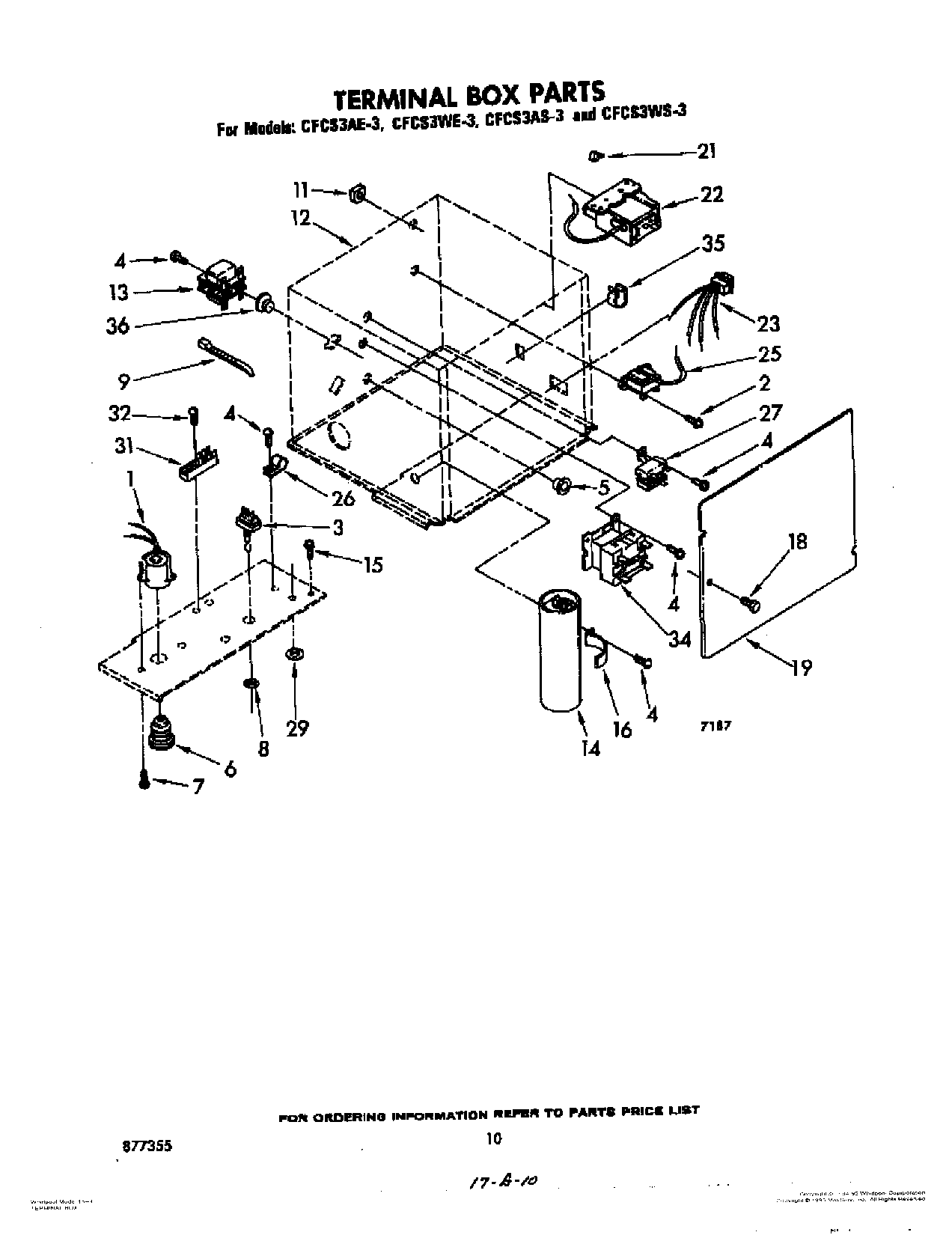

CFCS3AE3 07 – TERMINAL BOX

Products

Position	Product
1	Receptacle, Fustat
2	WP313808 Whirlpool Screw
3	Switch, Service
4	WP90767 Whirlpool Screw
5	Bushing, Snap
6	Fustat, 8 Amp
7	Screw, 10-32 x 3/8 (2)
8	Nut, Switch (2)
9	WPW10339879 Whirlpool Wire Tie
11	Grommet
12	Terminal Box (Not a Serviceable Part)
13	Transformer (14.25 V)
14	Capacitor, Start
15	Screw (Compressor Ground)
16	Clamp, Capacitor
18	WP488787 Whirlpool Refrigerator Screw
19	Cover, Terminal Box
21	Clip
22	Switch, Hi-Pressure (CFCS3WE-3)
23	Harness, Control
25	Thermostat, Bin Control
26	Clamp, Wire
27	Relay, Compresor Start
29	Bushing, Snap (4)
31	Terminal Board
32	Screw, 8-32 x 5/8
34	Relay, Defrost Control
35	Retainer, Wire
36	Bushing, Snap
