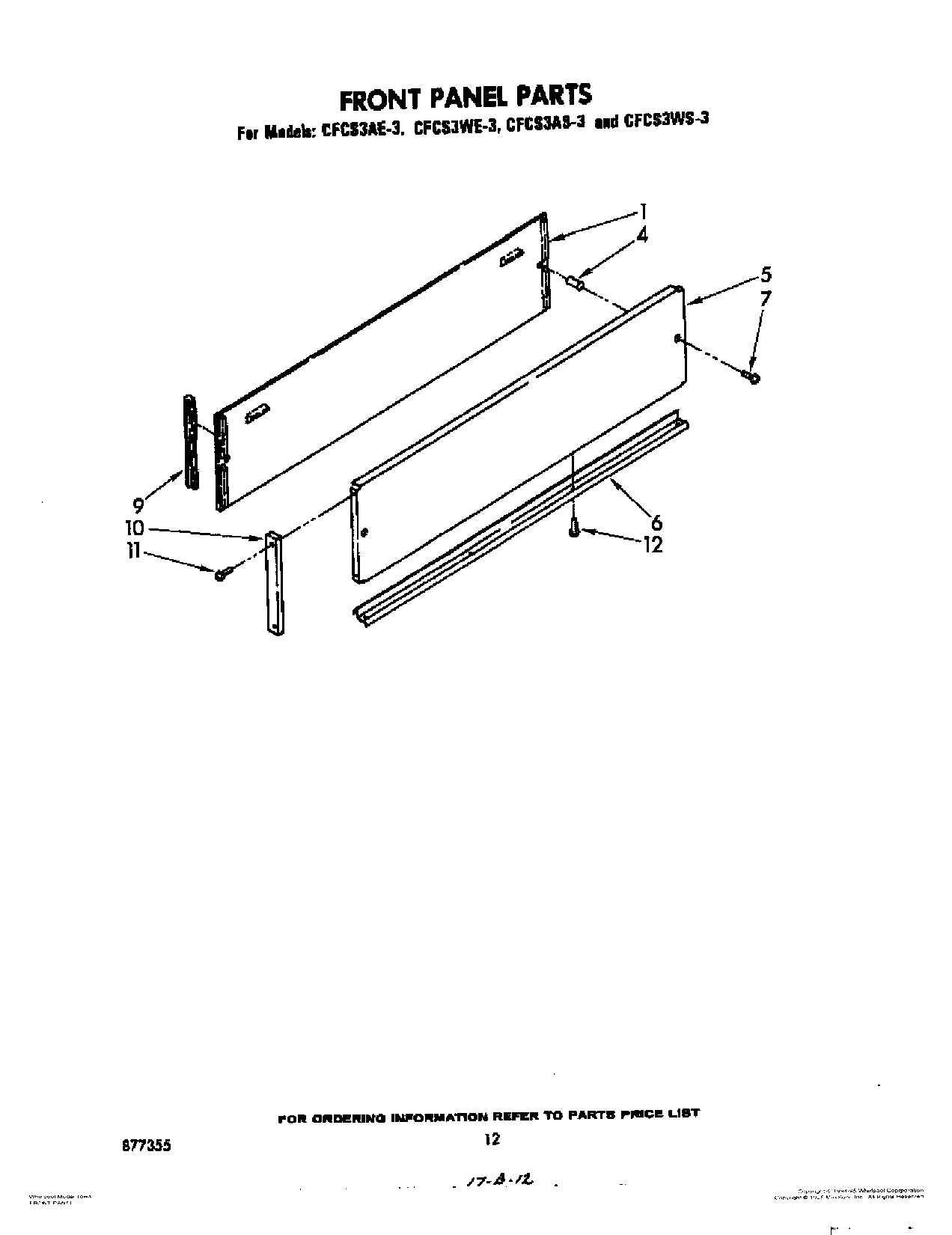

CFCS3AE3 09 – FRONT PANEL

Products

Position	Product
1	Panel, Interior
4	Sleeve, Panel (2)
5	Panel, Outer (CFCS3WE-3) (CFCS3AS-3)
5	Panel, Outer (CFCS3AE-3)
6	Shield, Front Panel (CFCS3WE-3) (CFCS3AS-3)
6	Shield, Front Panel (CFCS3AE-3)
7	Screw
9	Gasket, Panel
10	Cap. End (CFCS3WE-3) (CFCS3AS-3)
10	Cap. End (CFCS3AE-3)
11	Screw (8)
12	WP965173 Whirlpool Dishwasher Screw
