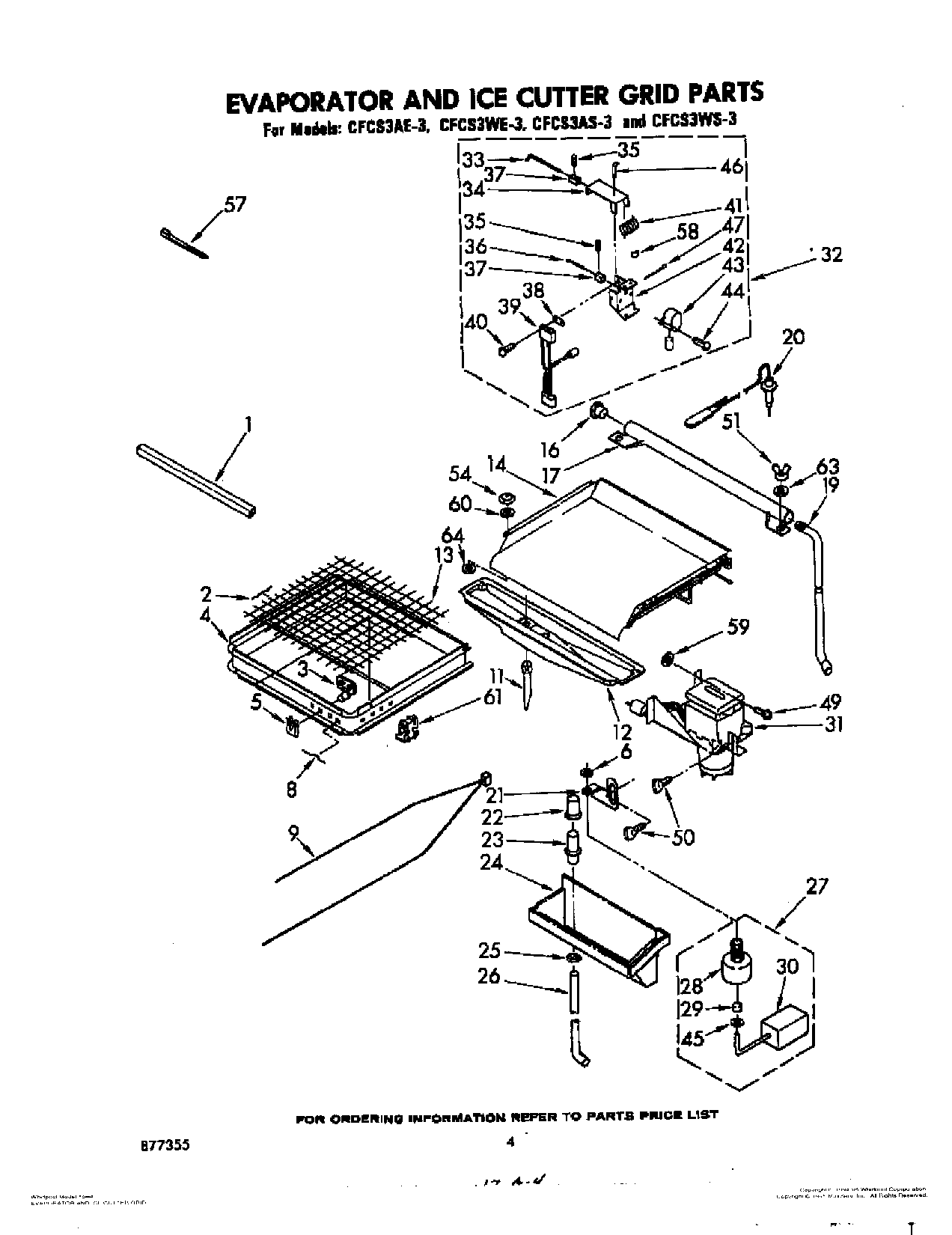

CFCS3AS3 03 – EVAPORATOR AND ICE CUTTER GRID

Products

Position	Product
1	Deflector, Ice Slab
2	Pin, Grid (4)
2	Pin, Cutter Wire (1-2/4“ Grid (9))
2	Pin, Grid Wire (17)
3	Insulator, Grid Wires (38)
4	Frame, Cutter Grid (Not a Serviceable Part)
5	Clip, Grid Wires (38)
6	Washer
8	Pin, Grid Wires (4)
9	Harness, Grid Connecting ((1-2/4“ Grid))
9	Harness, Grid Connecting ((3/4“ Grid))
11	Pipe, Stand
12	Trough, Water
13	Wire Kit, Grid Cutter ((3/4“ Grid))
13	Wire Kit, Grid Cutter ((1-2/4“ Grid))
14	Evaporator
16	Seal, Dispenser
17	Dispenser, Water
19	Hose, Dispenser
20	Valve, Thermo Expansion
21	Bracket, Float Valve
22	Cap, Siphon
23	Tube, Siphon
24	Pan, Water
25	Nut, Siphon Tube
26	Hose, Siphon
27	Valve, Float
28	Body, Valve
29	Plunger
30	Float & Stem Assembly
31	Pump, Water (See Page 9 for Breakdown)
32	Control Assembly (Ice Thickness)
33	Shaft, Ice Thickness Control
34	Bracket, Shaft
35	Setscrew (4)
36	Shaft, Flexible
37	Coupling, Shaft (2)
38	Spacer
39	Switch & Harness (Ice Thickness Control)
40	Screw
41	Spring, Hold Down
42	Bracket, Motor
43	Motor, Ice Thickness Control
44	Screw
45	Washer
46	Screw, Adjusting
47	Pin, Cotter
49	Screw, 10-32 x 3/8
50	WPL 681302
51	WPL 681584
54	WP486255 Whirlpool Air Conditioner Nut
57	WPW10339879 Whirlpool Wire Tie
58	WPL 596681
59	Washer (2)
60	WPL 562336
61	WPL 756058
63	WPL 680396
64	WPL 486260
