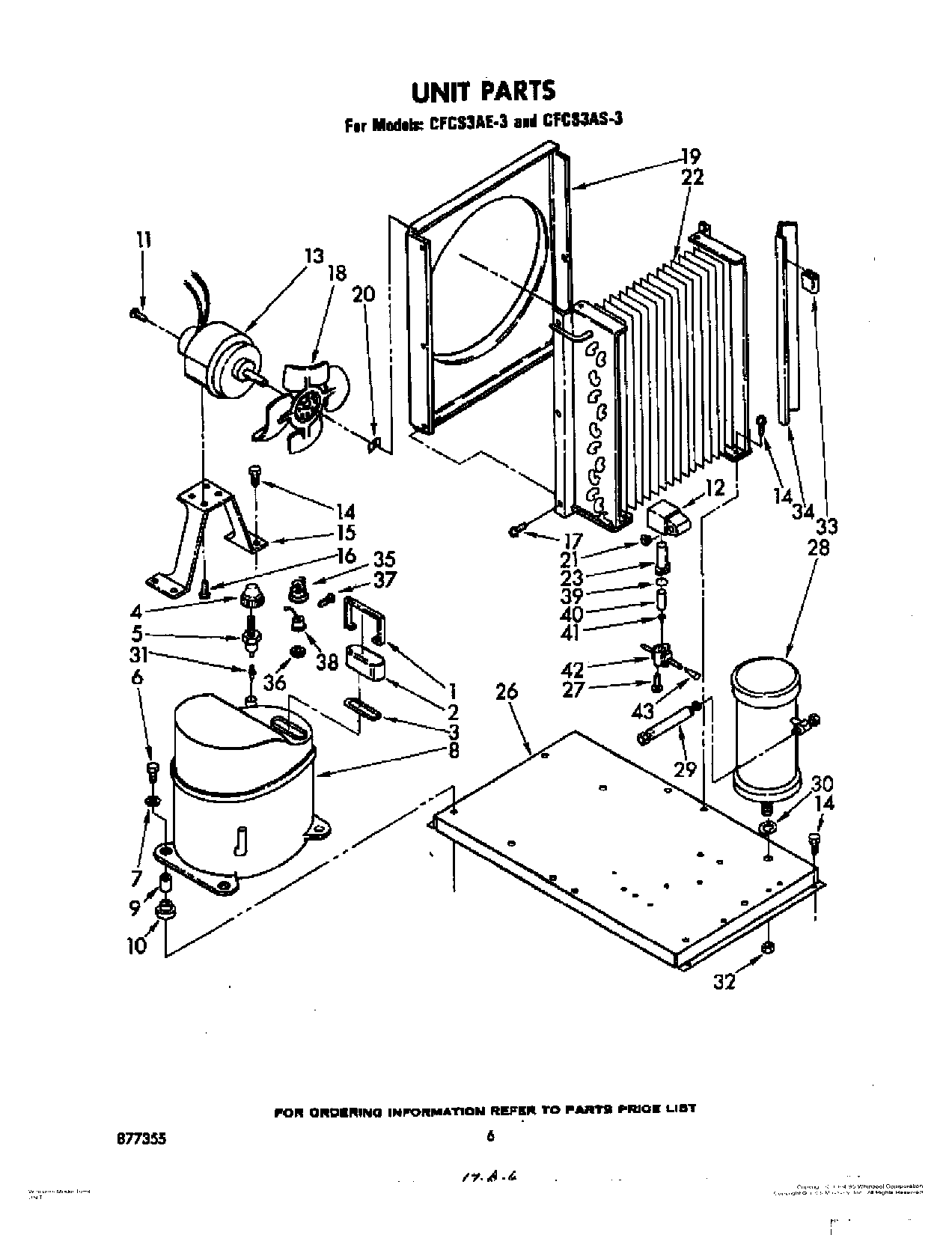

CFCS3AS3 04 – UNIT

Products

Position	Product
1	Strap, Bale
2	Cover, Terminal
3	Gasket, Cover
4	Cap, Valve
5	Core, Valve
6	Screw
7	Washer, Flat (4)
8	Compressor, Service
9	Sleeve, Grommet (4)
10	Grommet (4)
12	Coil, Solenoid
13	Motor, Fan
14	Screw, 1/4-20 x 1/2
15	Bracket, Fan Motor
16	Screw, 8-36 x 1/2 (Included W/Fan Motor)
17	WP90767 Whirlpool Screw
18	Blade, Fan
19	Shroud, Condenser
20	WP486692 Whirlpool Refrigerator Nut
21	Bushing, Snap
22	Condenser
23	Bonnet Assembly
26	Base, Unit
27	WP486579 Whirlpool Air Conditioner Screw
28	Receiver Assembly
29	Drier
30	Washer, Lock
31	Body, Valve
32	Nut (1)
33	Clip
34	Baffle, Condenser (L.S.)
34	Baffle, Condenser (R.S.)
35	Spring, Overload
36	Adapter, Overload
37	Screw, 6-32 x 1/4
38	Overload
39	Seal, Bonnet
40	Plunger
41	Diaphragm
42	Body, Solenoid
43	Strainer
