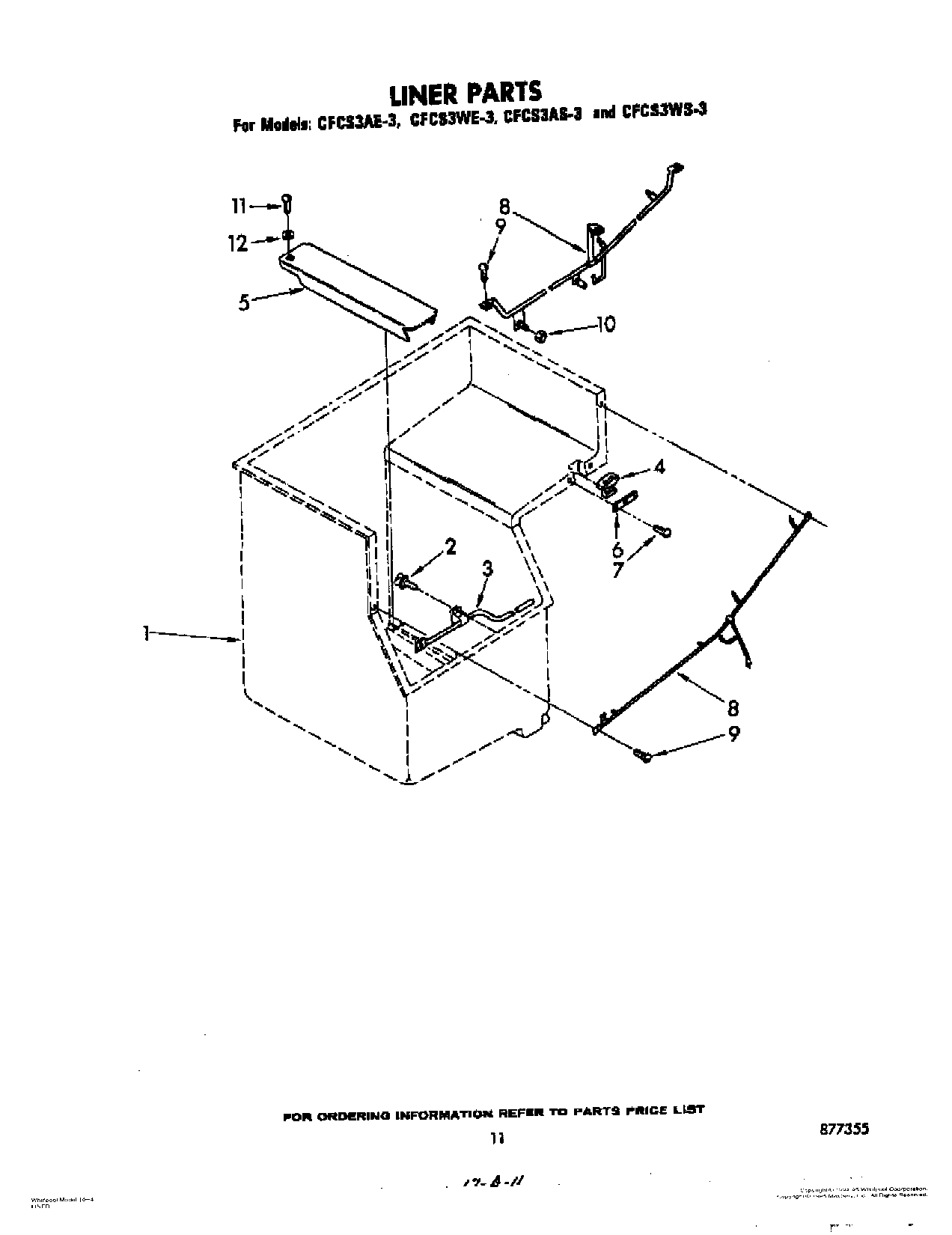

CFCS3WE3 08 – LINER

Written by

CFCS3WE3 08 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Screw, 10 x 1/2
3	Well, Thermostat
4	Grommet, Tubing
5	Cover, Drain
6	Plate, Mounting
7	Screw (2)
8	Support Mounting (Front)
8	Support Mounting (Rear)
9	Screw, 1/4-20 x 1/2
10	WP486255 Whirlpool Air Conditioner Nut
11	Screw, 10-32 x 3/8
12	Washer (2)
