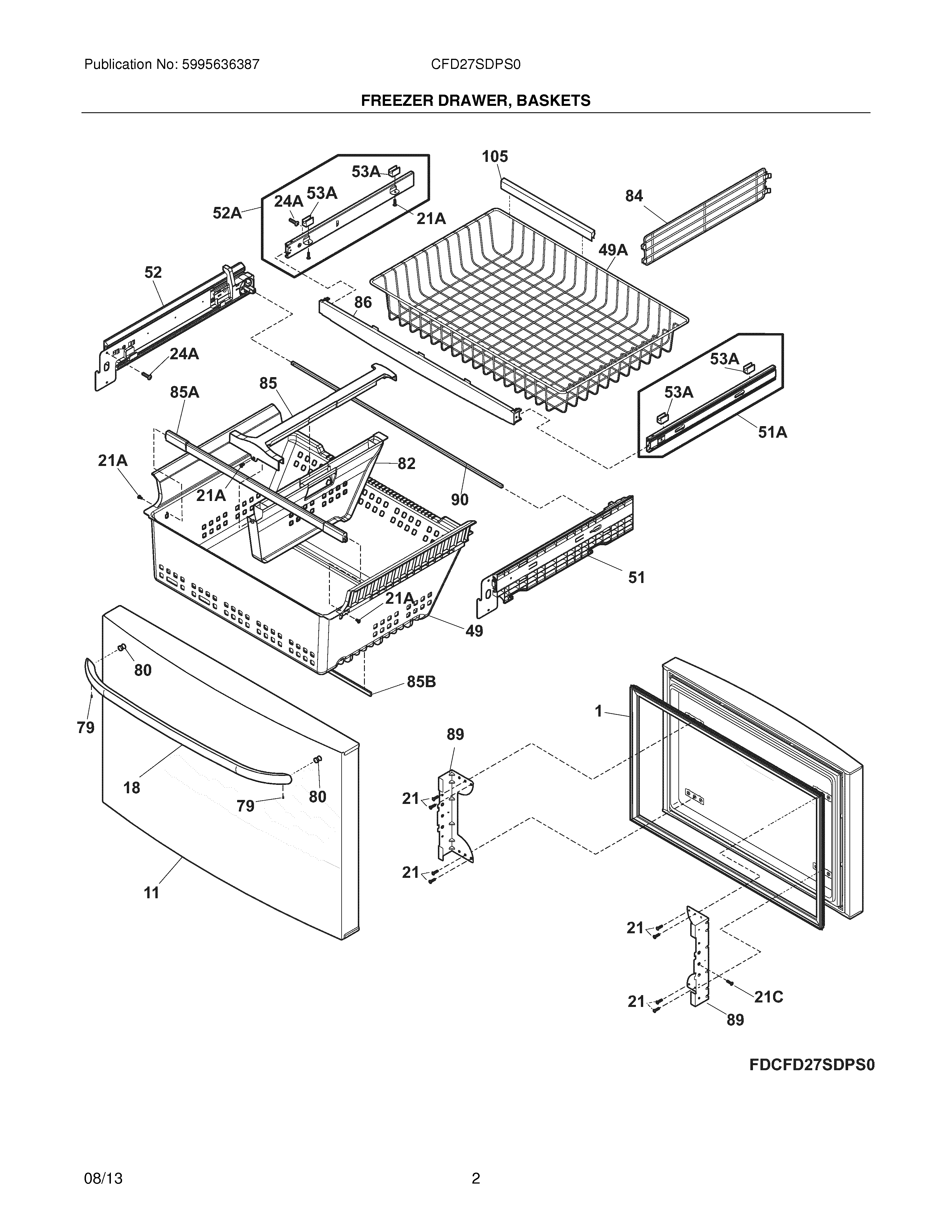

CFD27SDPS0 03 – FREEZER DRAWER, BASKETS

CFD27SDPS0 03 – FREEZER DRAWER, BASKETS

Written by

in

CFD27SDPS0 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI5304453707 Frigidaire Oven Screw
NI242146401 Frigidaire Refrigerator Screw
NI242015001 Frigidaire Refrigerator Screw
NI242011101 Frigidaire Refrigerator Pin-Lock
NI242039702 Frigidaire Refrigerator Screw
NI242139201 Frigidaire Compression Spring
NI5304467131 Frigidaire Refrigerator Wrench
NI5304497384 Frigidaire Refrigerator Plate
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
1GASKET
11241987933 Frigidaire Refrigerator Freezer Door
18242090501 Frigidaire Stainless Steel Door Handle
21C241899703 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
49AWCI 241780815
49WCI 242159401
515303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
51A242039701 Frigidaire Refrigerator Screw
51A241894223 Frigidaire Drawer Slide Rail, Right
52WCI 242130513
52A241894224 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82WCI 242168701
84241780904 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85BWCI 241872204
85AWCI 242168501
86WCI 242090701
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90WCI 242136903
105242116801 Frigidaire Refrigerator Trim-Basket
