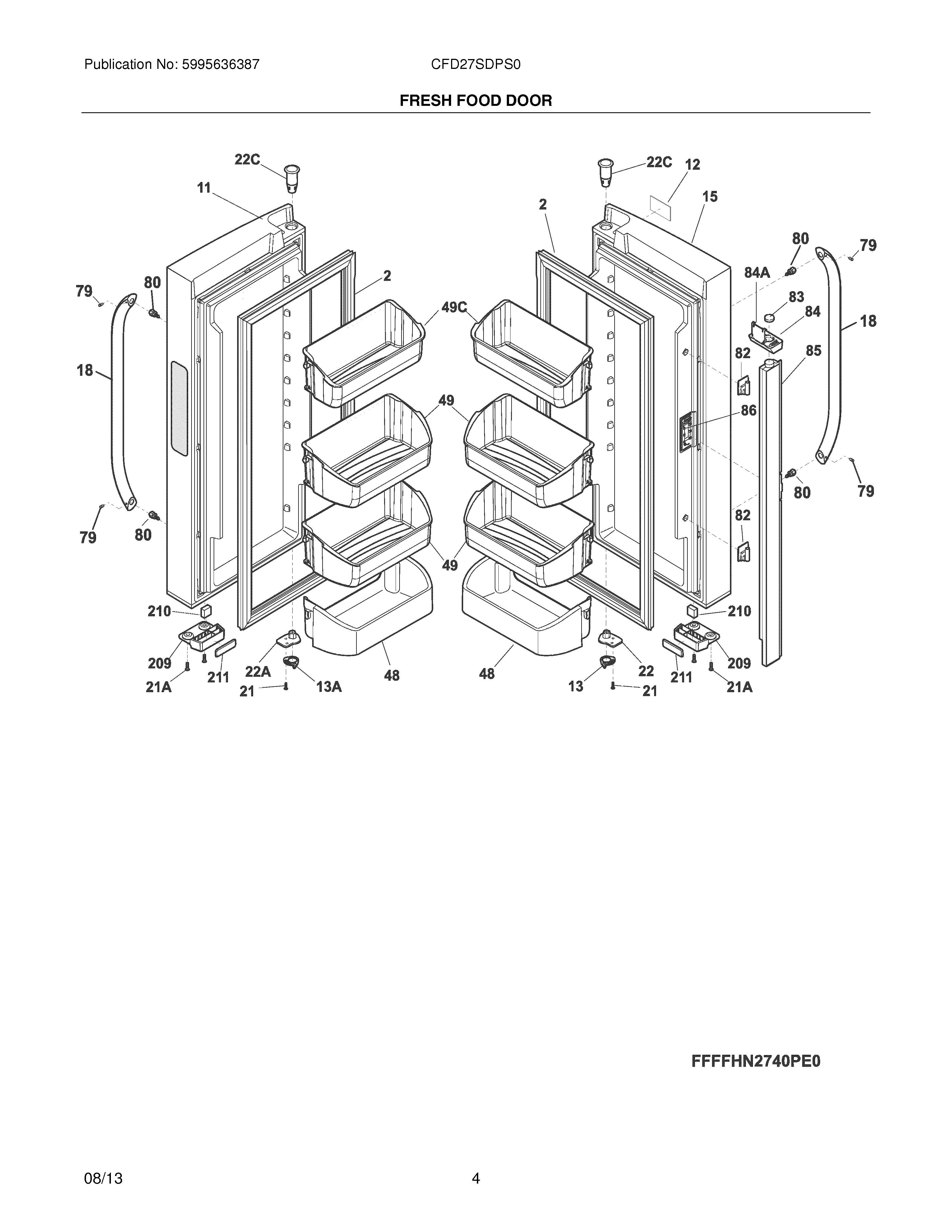

CFD27SDPS0 05 – FRESH FOOD DOORS

CFD27SDPS0 05 – FRESH FOOD DOORS

Written by

in

CFD27SDPS0 05 – FRESH FOOD DOORS

Products

PositionProduct
NI242045402 Frigidaire Harness-WIRING
NI242015001 Frigidaire Refrigerator Screw
NI5304520993 Frigidaire Refrigerator Harness-Mullion
NI5304467131 Frigidaire Refrigerator Wrench
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI242068601 Frigidaire Refrigerator Bumper
NI240451503 Frigidaire Refrigerator Screw
2GASKET-DR
11WCI 242185628
12NAMEPLATE, CROSLEY
13241868401 Frigidaire Refrigerator Door Stop
13A241868402 Frigidaire Refrigerator Door Stop
15WCI 242185629
18WCI 242059301
21242017501 Frigidaire Refrigerator Screw
21A5304453707 Frigidaire Oven Screw
22A242075602 Frigidaire Refrigerator Cam
22CAM, UPPER HINGE, RH
22C241760401 Frigidaire Refrigerator Bearing
48242071401 Frigidaire Refrigerator Door Shelf Bin White
49242079701 Frigidaire Refrigerator Door Bin
49C242079901 Frigidaire Refrigerator Door Bin
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83241812202 Frigidaire Refrigerator Magnet
84808274201 Frigidaire Door Guide Assembly
84A242190501 Frigidaire Refrigerator Mullion Assembly
85241778811 Frigidaire Refrigerator Flipper Mullion Assembly
86241779802 Frigidaire Door Hinge Mullion Flipper
209242291001 Frigidaire Refrigerator Housing
210241779101 Frigidaire Refrigerator Magnet
211241979601 Frigidaire Refrigerator Bumper
