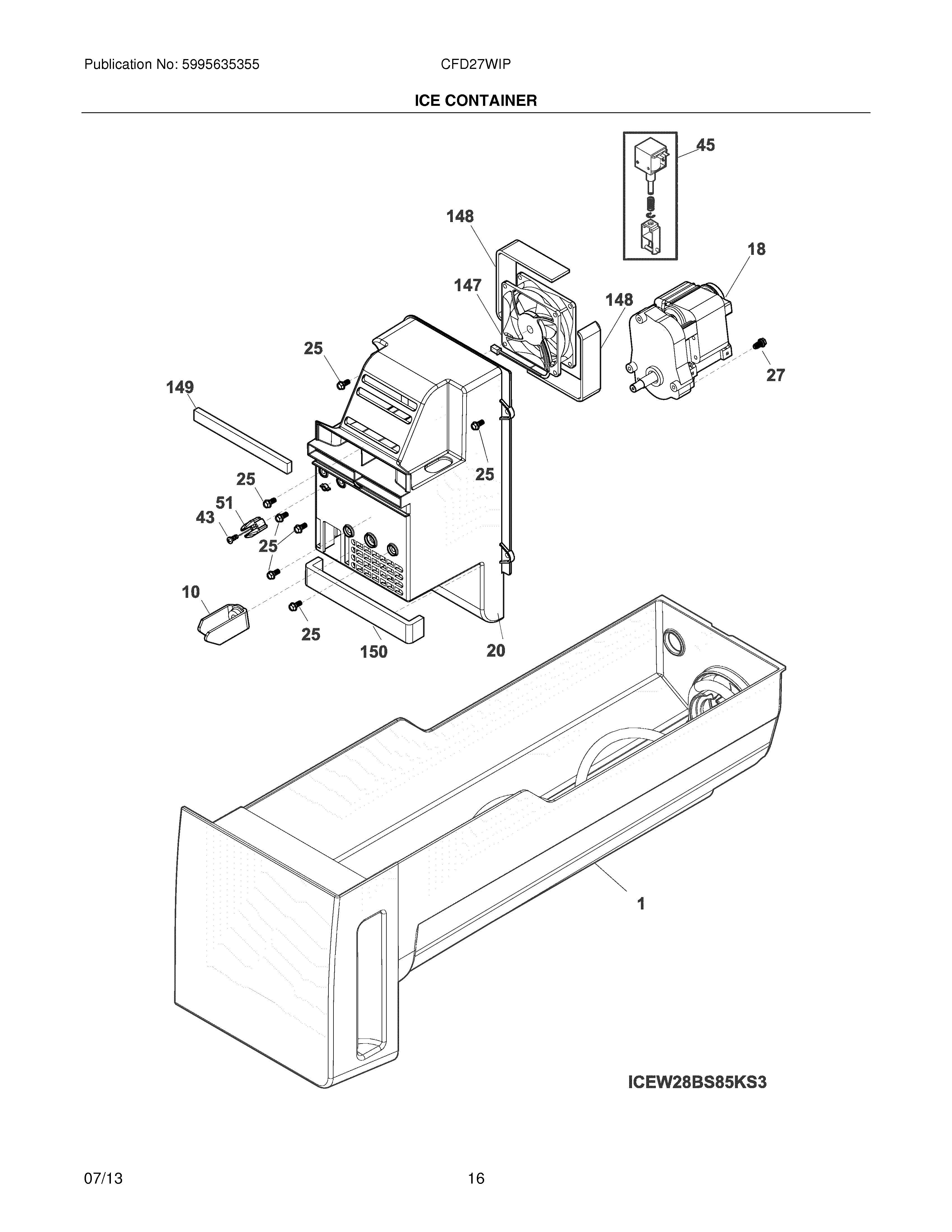

CFD27WIPS2 15 – ICE CONTAINER

CFD27WIPS2 15 – ICE CONTAINER

Written by

in

CFD27WIPS2 15 – ICE CONTAINER

Products

PositionProduct
NI242095804 Frigidaire Refrigerator Wiring Harness
1242093003 Frigidaire Refrigerator Ice Container Assembly
10241829001 Frigidaire Refrigerator Bar Drive
18241816602 Frigidaire Refrigerator Motor-AUGER
20242095702 Frigidaire Refrigerator Air Handler Housing
25240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
43241641502 Frigidaire Refrigerator Screw
45241675704 Frigidaire Refrigerator Solenoid Assembly
51242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
1475304493604 Frigidaire Refrigerator Gasket & Fan Kit
148242095406 Frigidaire Refrigerator Gasket
1495303918784 Frigidaire Refrigerator Air Handler Housing
