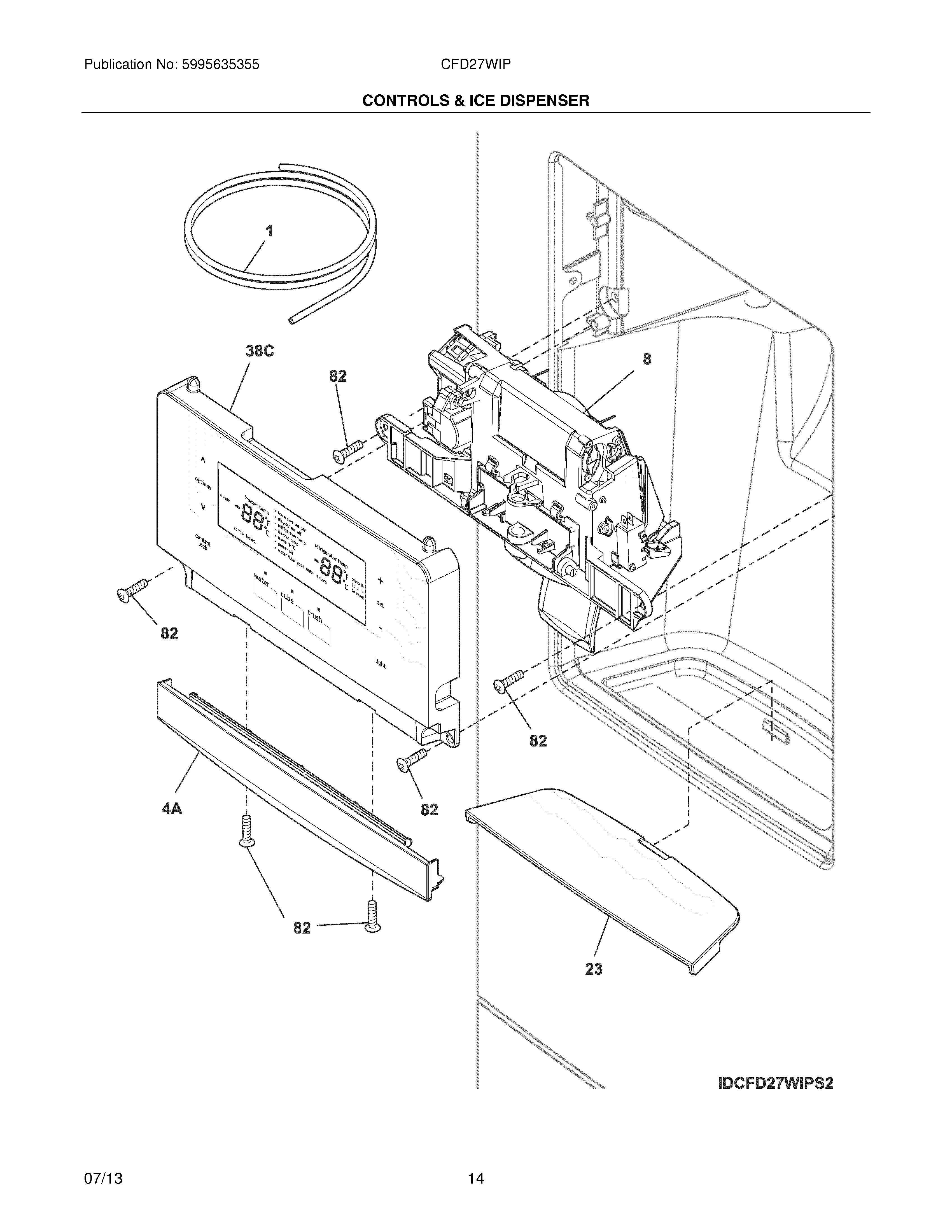

CFD27WIPW2 13 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI5303918484 Frigidaire Dispenser
NI241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NI5303918602 Frigidaire Refrigerator Water Tube Kit
NI241964707 Frigidaire Refrigerator Water Tube
NI241920106 Frigidaire Fill Tube Kit
NI5304521784 Frigidaire Refrigerator Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976436 Frigidaire Refrigerator Water Inlet Tube
4A242176401 Frigidaire Refrigerator Trim
8242270106 Frigidaire Refrigerator Module
23SUMP, DISPENSER, WHITE
38C5304527929 Frigidaire Control Board Dispenser
38C241953902 Frigidaire Refrigerator Screw
