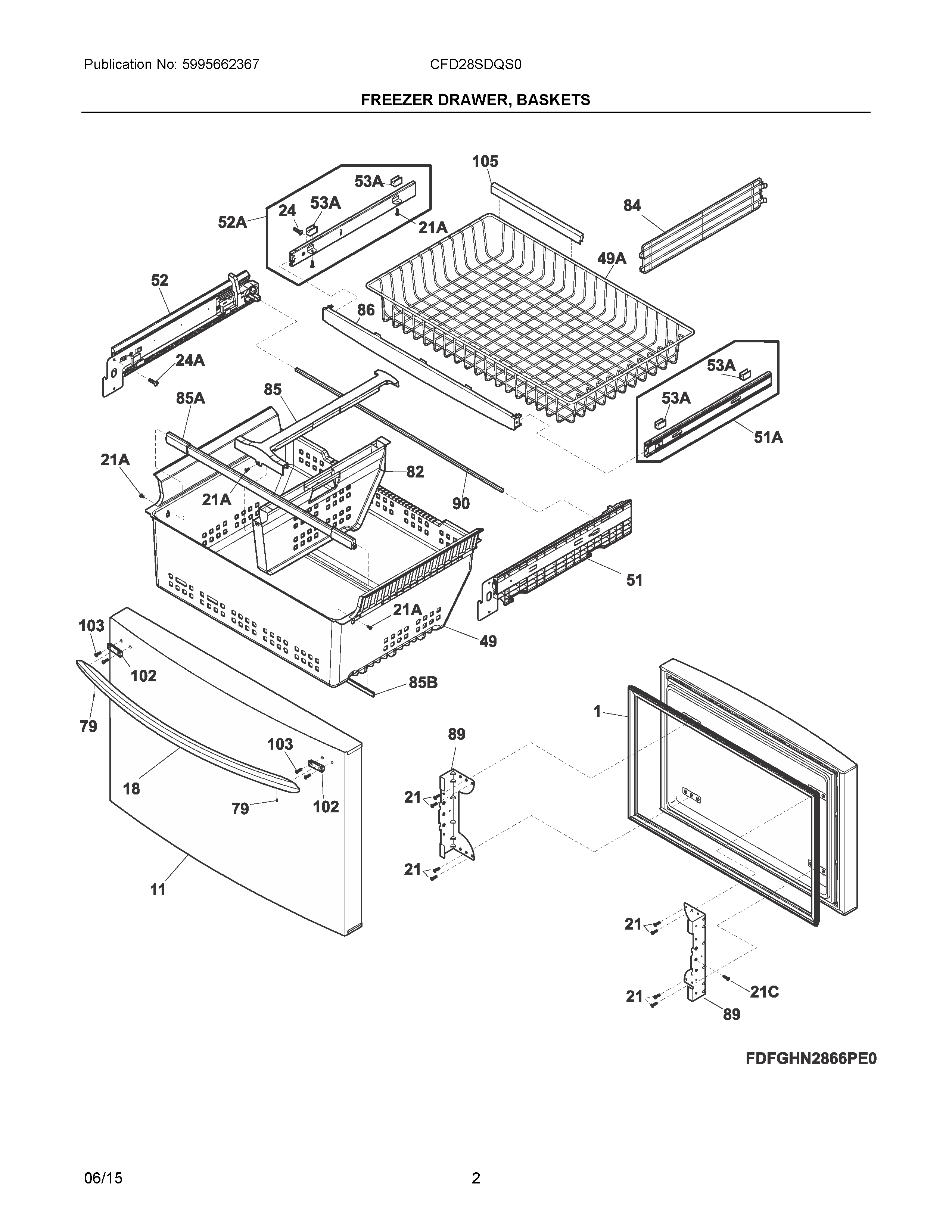

CFD28SDQS0 02 – FREEZER DRAWER, BASKETS

CFD28SDQS0 02 – FREEZER DRAWER, BASKETS

Written by

in

CFD28SDQS0 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242139201 Frigidaire Compression Spring
NIA242039701 Frigidaire Refrigerator Screw
NIA5304467131 Frigidaire Refrigerator Wrench
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI5304453707 Frigidaire Oven Screw
1GASKET
11241987933 Frigidaire Refrigerator Freezer Door
18242090501 Frigidaire Stainless Steel Door Handle
21A241953902 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
495303918736 Frigidaire Refrigerator Lower Basket Kit
49A241780810 Frigidaire Refrigerator Basket-Frzr
515303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
52SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER
52A241894224 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
865304507340 Frigidaire Refrigerator Trim
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
