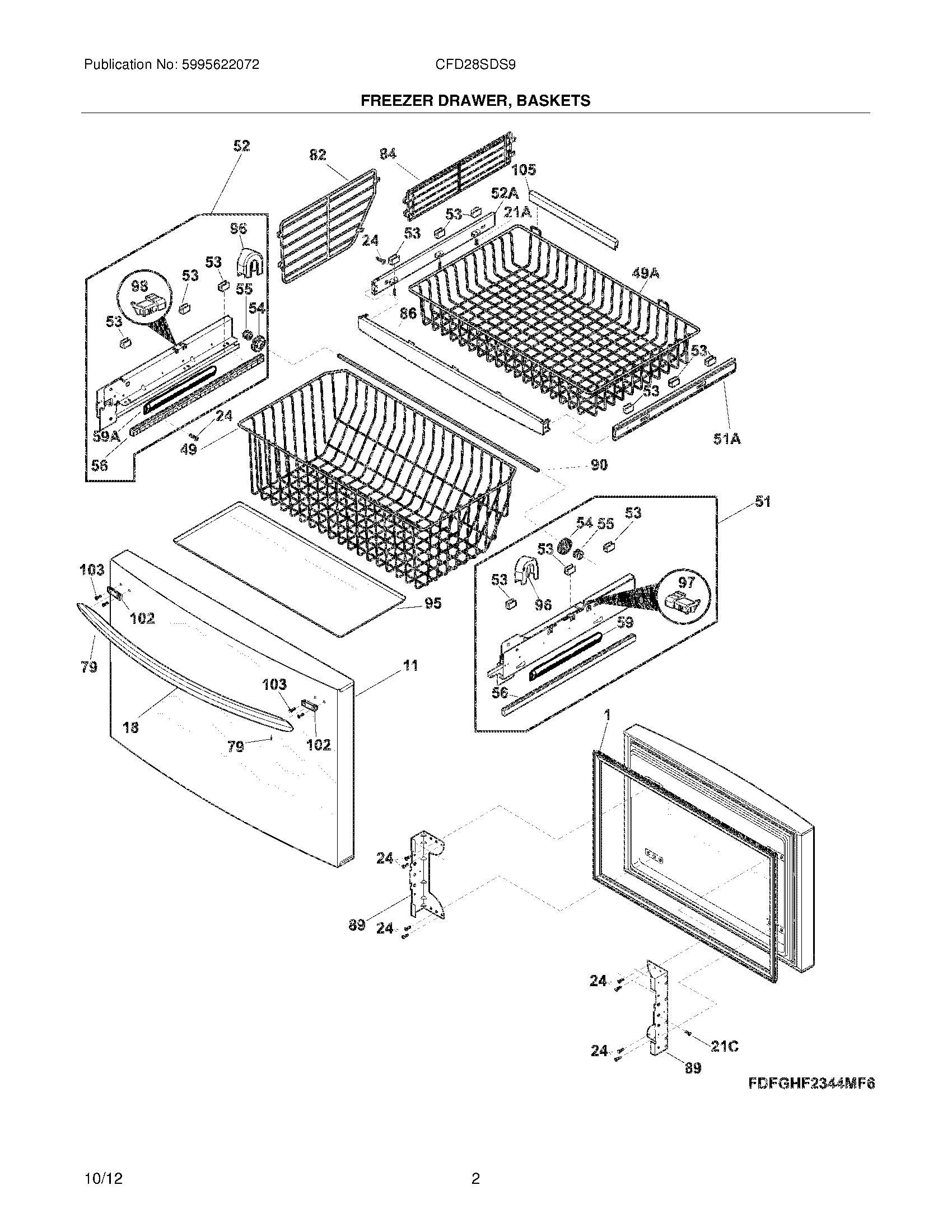

CFD28SDS9 03 – FREEZER DRAWER, BASKETS

CFD28SDS9 03 – FREEZER DRAWER, BASKETS

Written by

in

CFD28SDS9 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
NI5304467131 Frigidaire Refrigerator Wrench
NI242039701 Frigidaire Refrigerator Screw
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI241979601 Frigidaire Refrigerator Bumper
NIWCI 241999901
NI241899703 Frigidaire Refrigerator Screw
NIWCI 241999902
1GASKET
11241987921 Frigidaire Refrigerator Freezer Door DSP
18Handle-door,stainless ,frz drwr ,w/set screw
21C5304497384 Frigidaire Refrigerator Plate
21A241953902 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49WCI 242026801
49AWCI 241780805
51A241894223 Frigidaire Drawer Slide Rail, Right
515304489981 Frigidaire Refrigerator Basket Slide Kit
52A241894224 Frigidaire Refrigerator Slide Assembly
52241883704 Frigidaire Refrigerator Slide Assembly
53WCI 241824201
54241770201 Frigidaire Refrigerator Pinion
55241770301 Frigidaire Guard
56WCI 242158001
59A5304474656 Frigidaire Refrigerator Self-Close Assembly
595304474655 Frigidaire Refrigerator Self-Close Assembly
79218755402 Frigidaire Refrigerator Set Screw
82WCI 242026901
84241780904 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90241770705 Frigidaire Bar
95WCI 241770808
96241973501 Frigidaire Refrigerator Cover Pinion White
97241926401 Frigidaire Refrigerator Actuator
98241926402 Frigidaire Refrigerator Actuator
102242029301 Frigidaire Refrigerator Door Handle Mounting Block
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
