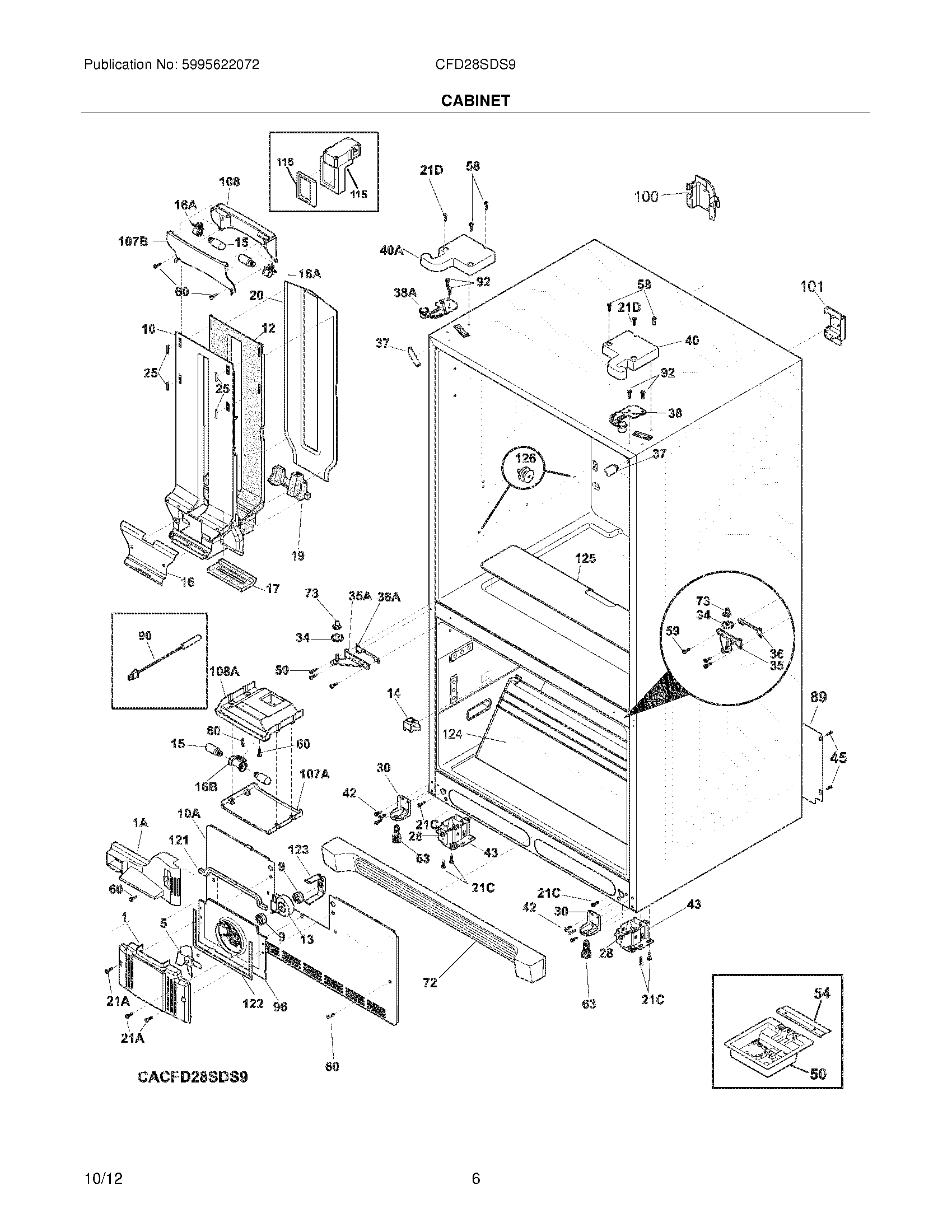

CFD28SDS9 07 – CABINET

CFD28SDS9 07 – CABINET

Written by

in

CFD28SDS9 07 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	WCI 242061602
NI	242104901 Frigidaire Refrigerator Wiring Harness
NI	WCI 241953904
NI	241969001 Frigidaire Refrigerator Cap
NI	WCI 242118001
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	242072501 Frigidaire Refrigerator Insulation
NI	215474201 Frigidaire Refrigerator Washer
1A	WCI 242052101
1	241859701 Frigidaire Refrigerator Fan Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10	WCI 242072001
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
12	242072402 Frigidaire Refrigerator Insulation-Air Duct
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	5304517886 Frigidaire Refrigerator Light
16B	241622802 Frigidaire Refrigerator Socket-Light
16B	241510802 Frigidaire Refrigerator Wiring Harness
16A	240590403 Frigidaire Refrigerator Light Socket
16A	241969202 Frigidaire Refrigerator Wiring Harness
16	242072101 Frigidaire Refrigerator Cover
17	5303918479 Frigidaire Refrigerator Gasket
19	242072601 Frigidaire Refrigerator Support
20	242072201 Frigidaire Refrigerator Cover
21A	5304453707 Frigidaire Oven Screw
21C	218252201 Frigidaire Refrigerator Screw
21D	241548003 Frigidaire Refrigerator Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	242099810 Frigidaire Refrigerator Upper Hinge Cover
40	COVER-UPPER HINGE, GRAY, RH
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5303918506 Frigidaire Refrigerator Switch Board
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	218362501 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	242054804 Frigidaire Refrigerator Kickplate Grille
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
100	242157601 Frigidaire Refrigerator Cover
101	242157801 Frigidaire Refrigerator Cover
107	241971601 Frigidaire Refrigerator Light Shield
107	241971202 Frigidaire Refrigerator Light Shield
108	WCI 242118101
108	WCI 241971402
108	241679901 Frigidaire Refrigerator Screw
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
124	242006903 Frigidaire Refrigerator Air Duct
125	242071201 Frigidaire Refrigerator Cover
126	5304515677 Frigidaire Package of 4 Screws
