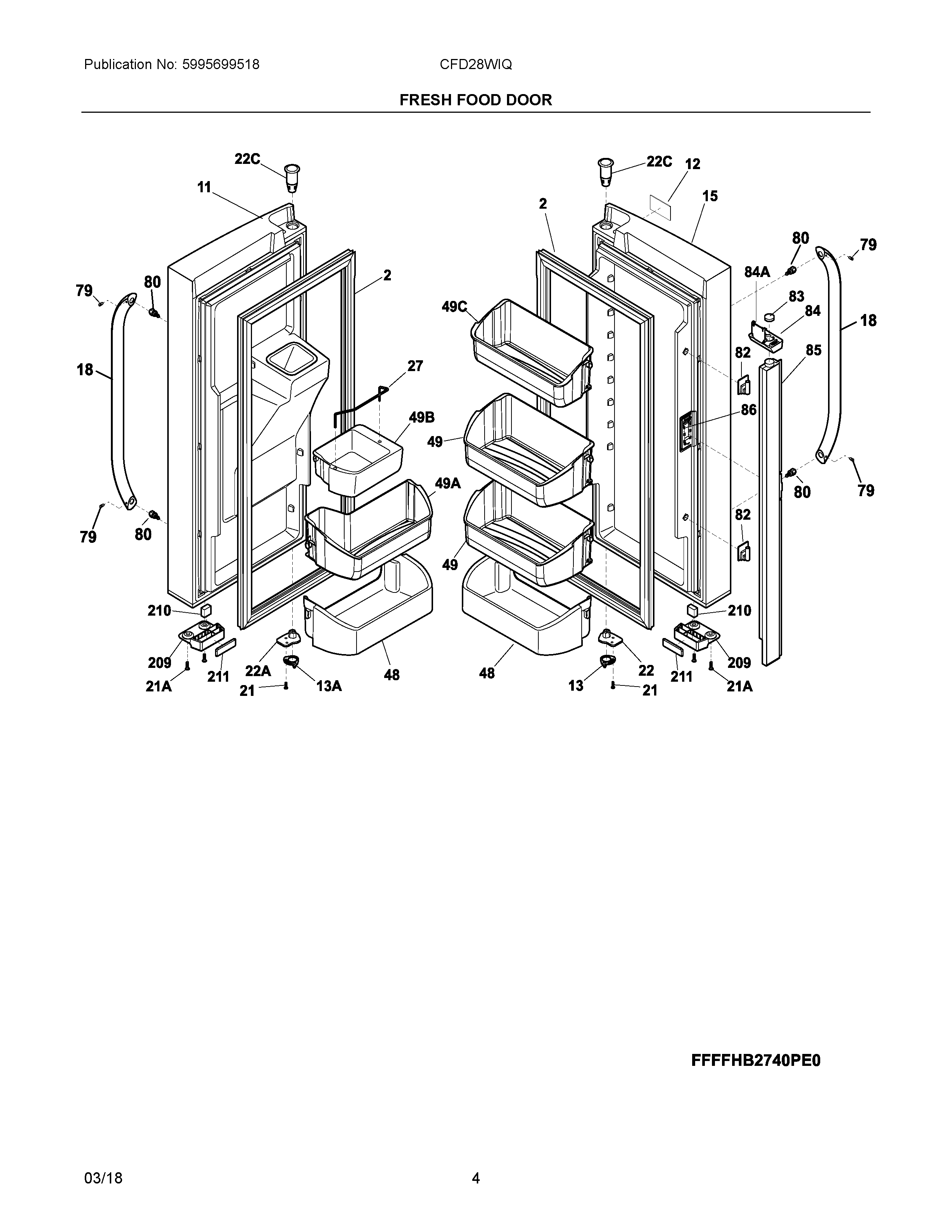

CFD28WIQB8 03 – FRESH FOOD DOOR

CFD28WIQB8 03 – FRESH FOOD DOOR

Written by

in

CFD28WIQB8 03 – FRESH FOOD DOOR

Products

PositionProduct
NI241806601 Frigidaire Refrigerator Water Connector
NIB5304520993 Frigidaire Refrigerator Harness-Mullion
NIC240451503 Frigidaire Refrigerator Screw
NIA242068601 Frigidaire Refrigerator Bumper
NI5304521784 Frigidaire Refrigerator Harness
NIA241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI242015001 Frigidaire Refrigerator Screw
NI5304467131 Frigidaire Refrigerator Wrench
2GASKET-DR
11WCI 242185633
12NAMEPLATE, CROSLEY
13241868401 Frigidaire Refrigerator Door Stop
13A241868402 Frigidaire Refrigerator Door Stop
15WCI 242185632
18WCI 242059303
21AA241953902 Frigidaire Refrigerator Screw
21242017501 Frigidaire Refrigerator Screw
21A5304453707 Frigidaire Oven Screw
22C241760401 Frigidaire Refrigerator Bearing
22A242075602 Frigidaire Refrigerator Cam
22CAM, UPPER HINGE, RH
27241752703 Frigidaire Refrigerator Retainer
48242071401 Frigidaire Refrigerator Door Shelf Bin White
49B242011701 Frigidaire Bin Shelf Door
49A242071301 Frigidaire Refrigerator Clear Door Bin
49C242079901 Frigidaire Refrigerator Door Bin
49242079701 Frigidaire Refrigerator Door Bin
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83241812202 Frigidaire Refrigerator Magnet
84A242190501 Frigidaire Refrigerator Mullion Assembly
84808274201 Frigidaire Door Guide Assembly
85241778808 Frigidaire Refrigerator White Mullion Assembly with Heater
86241779802 Frigidaire Door Hinge Mullion Flipper
209242291002 Frigidaire Refrigerator Housing
210241779101 Frigidaire Refrigerator Magnet
211241979602 Frigidaire BUMPER
