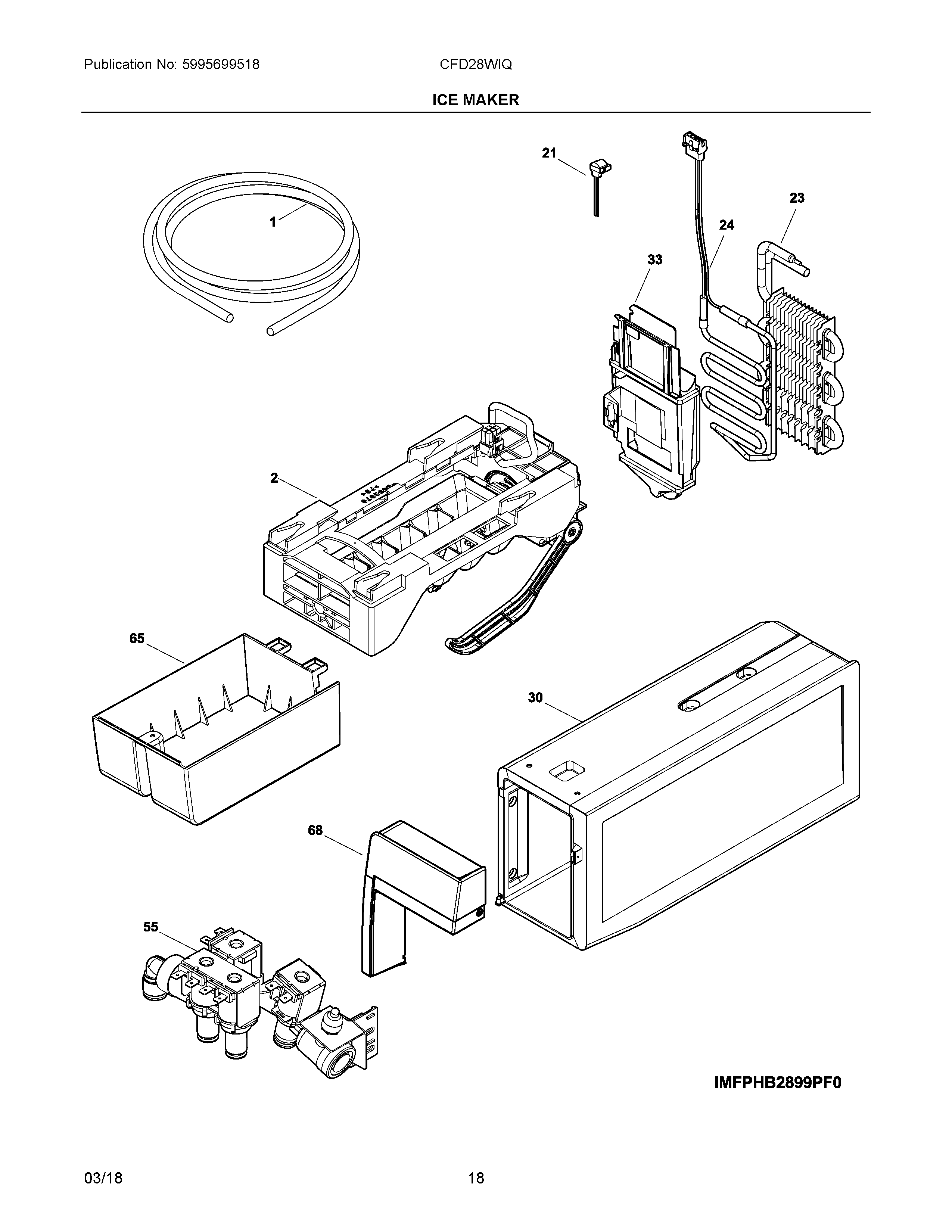

CFD28WIQB8 09 – ICE MAKER

Products

Position	Product
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	241806601 Frigidaire Refrigerator Water Connector
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NIA	242200102 Frigidaire Refrigerator Clip
NIA	242096001 Frigidaire Refrigerator Insulation
1	218976436 Frigidaire Refrigerator Water Inlet Tube
2	243297613 Frigidaire Refrigerator Ice Maker
21	5303918568 Frigidaire Thermostat Defrost
23	242094603 Frigidaire Refrigerator Evaporator
24	5304515677 Frigidaire Package of 4 Screws
30	242142203 Frigidaire Refrigerator Cover
33	HOUSING-EVAPORATOR
45	5303307980 Frigidaire Oven Screw
55	QUAD WATER VALVE
65	808456301 Frigidaire Refrigerator Cover
68	242095002 Frigidaire Refrigerator Cover
