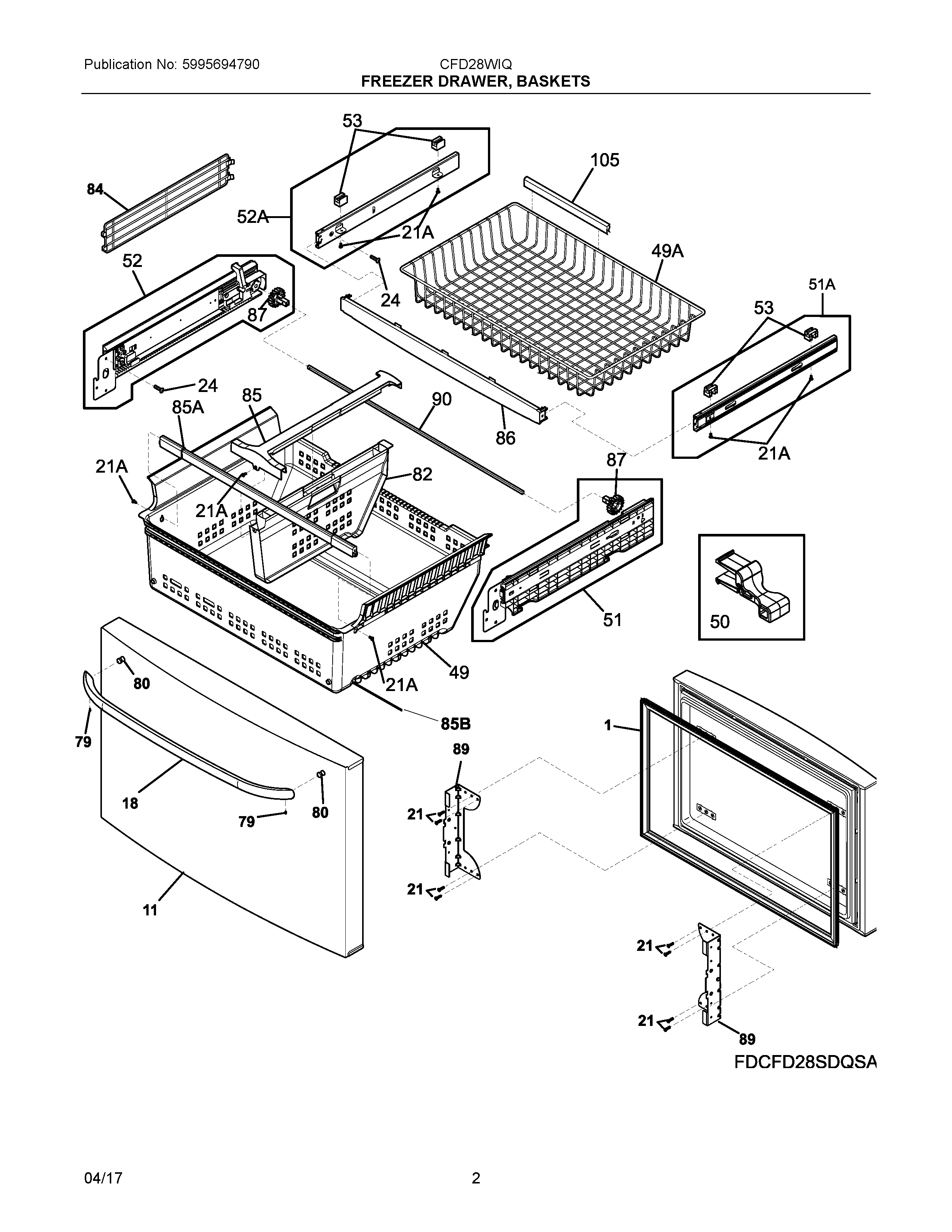

CFD28WIQBA 02 – FREEZER DRAWER, BASKETS

CFD28WIQBA 02 – FREEZER DRAWER, BASKETS

Written by

in

CFD28WIQBA 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
NIA5304467131 Frigidaire Refrigerator Wrench
NIA241701902 Frigidaire Refrigerator 3/32" Screwdriver
NIAA242039701 Frigidaire Refrigerator Screw
1GASKET
11WCI 241987935
18242090503 Frigidaire Refrigerator Door Handle
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
495304525892 Frigidaire Refrigerator Freezer Basket
49A241780810 Frigidaire Refrigerator Basket-Frzr
505304501271 Frigidaire Shelf Clip
515304502748 Frigidaire Refrigerator Slide Assembly
51A241894229 Frigidaire Refrigerator Assembly Slide
525304502749 Frigidaire Refrigerator Slide Assembly
52A241894230 Frigidaire Refrigerator Slide Assembly
535303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85242130901 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
875304507999 Frigidaire Refrigerator Pinion
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
