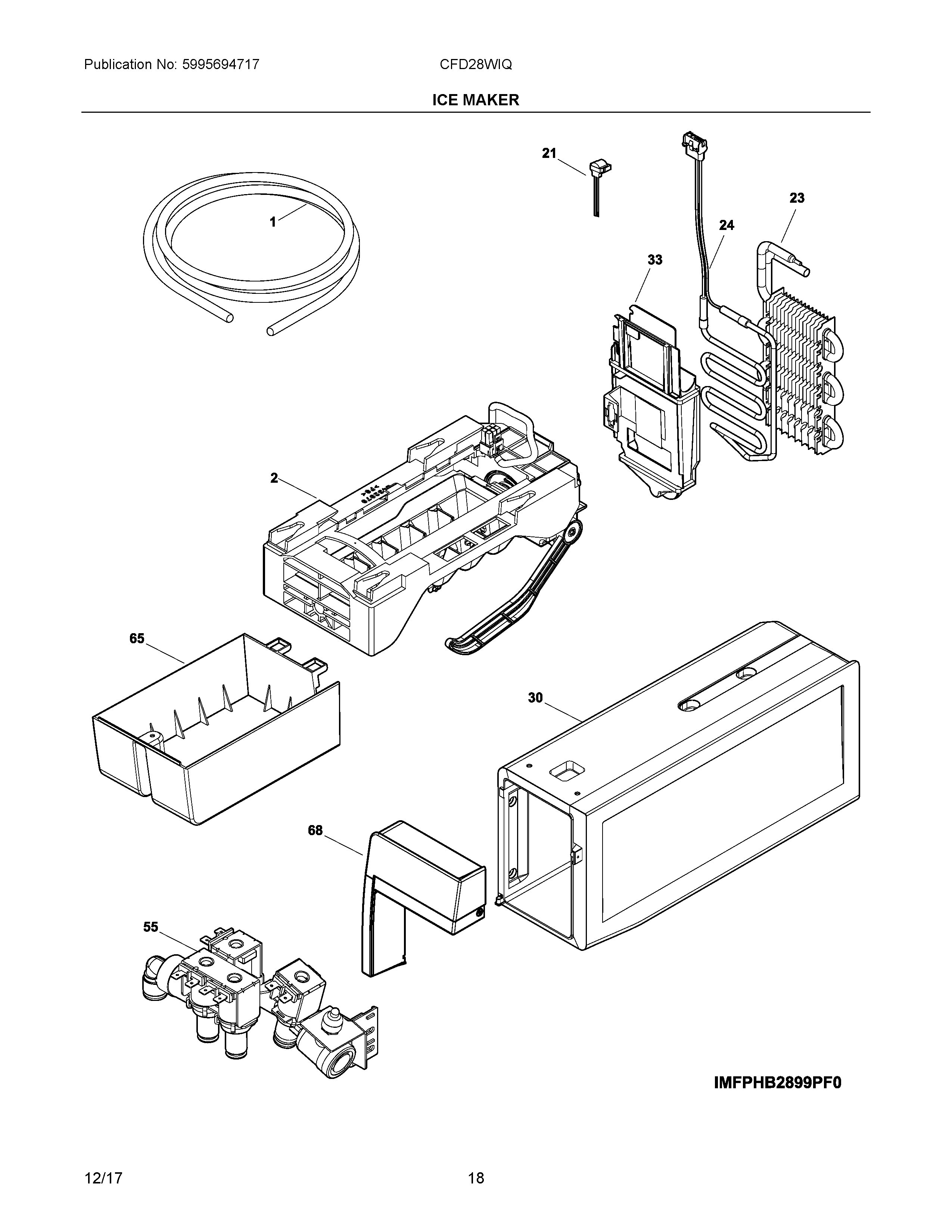

CFD28WIQS0 09 – ICE MAKER

Products

Position	Product
NIA	241953902 Frigidaire Refrigerator Screw
NIH	242095425 Frigidaire Gasket
NIB	5303918784 Frigidaire Refrigerator Air Handler Housing
NIB	HOUSING-EVAPORATOR
NIA	5304485759 Frigidaire Refrigerator Tape
NIA	241695906 Frigidaire Screw
NIA	242200102 Frigidaire Refrigerator Clip
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	218362501 Frigidaire Refrigerator Screw
NI	5304455650 Frigidaire Refrigerator Screw
1	242220204 Frigidaire Water Inlet Tube
2	243297613 Frigidaire Refrigerator Ice Maker
21	5303918568 Frigidaire Thermostat Defrost
23	242094603 Frigidaire Refrigerator Evaporator
24	242094802 Frigidaire Defrost Heater
30	242093501 Frigidaire Refrigerator Housing
55	QUAD WATER VALVE
65	808456301 Frigidaire Refrigerator Cover
68	242095002 Frigidaire Refrigerator Cover
