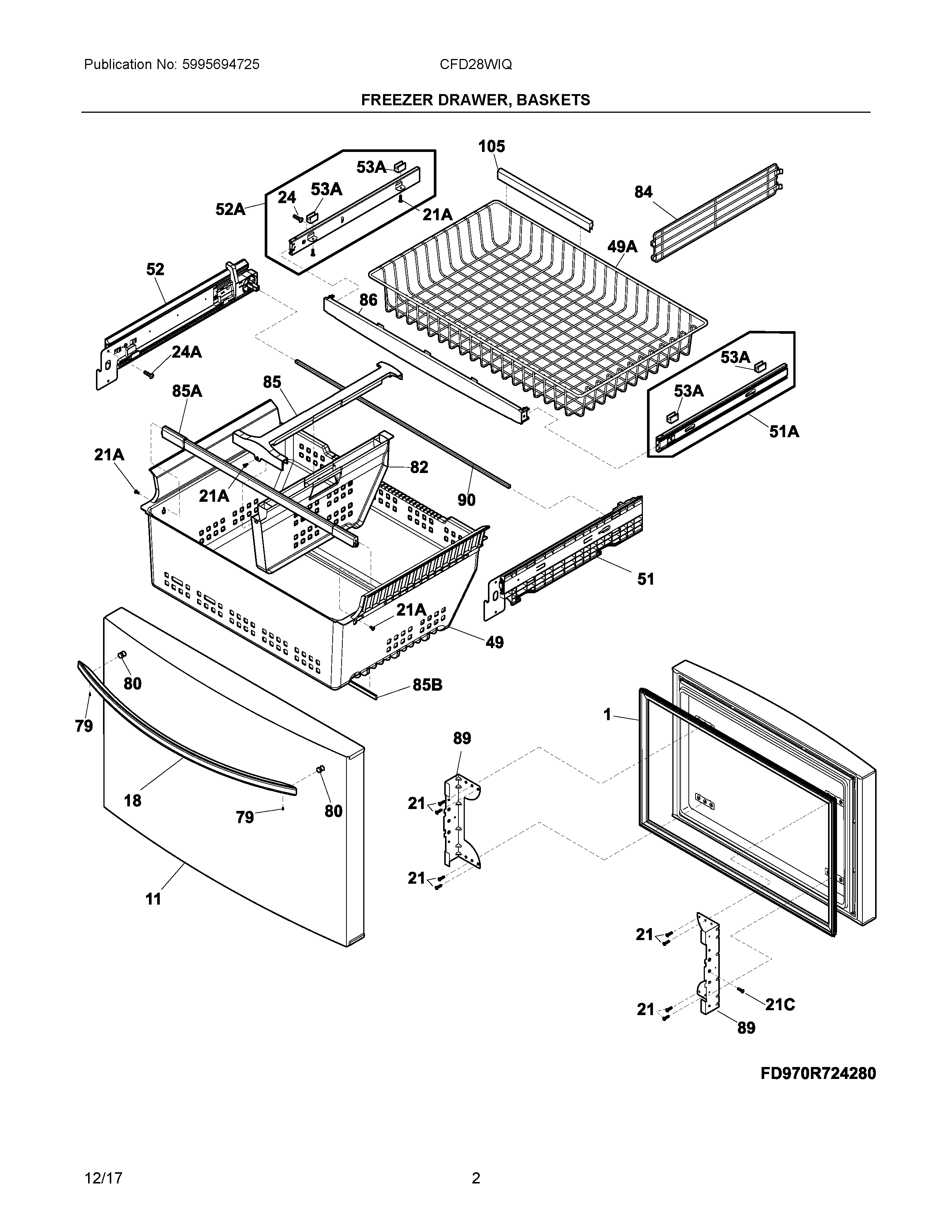

CFD28WIQS1 02 – FREEZER DRAWER, BASKETS

CFD28WIQS1 02 – FREEZER DRAWER, BASKETS

Written by

in

CFD28WIQS1 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242039702 Frigidaire Refrigerator Screw
NIAA242039701 Frigidaire Refrigerator Screw
NIA5304497384 Frigidaire Refrigerator Plate
NI5304467131 Frigidaire Refrigerator Wrench
NIA242139201 Frigidaire Compression Spring
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI5304453707 Frigidaire Oven Screw
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11241987933 Frigidaire Refrigerator Freezer Door
18242090501 Frigidaire Stainless Steel Door Handle
21241690602 Frigidaire Refrigerator Screw
21C241899703 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
495303918736 Frigidaire Refrigerator Lower Basket Kit
49A241780810 Frigidaire Refrigerator Basket-Frzr
515303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
51A241894223 Frigidaire Drawer Slide Rail, Right
52A241894224 Frigidaire Refrigerator Slide Assembly
52SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85B241872203 Frigidaire Refrigerator Beam Support
85A242139301 Frigidaire Refrigerator Support-Beam
85242130901 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
