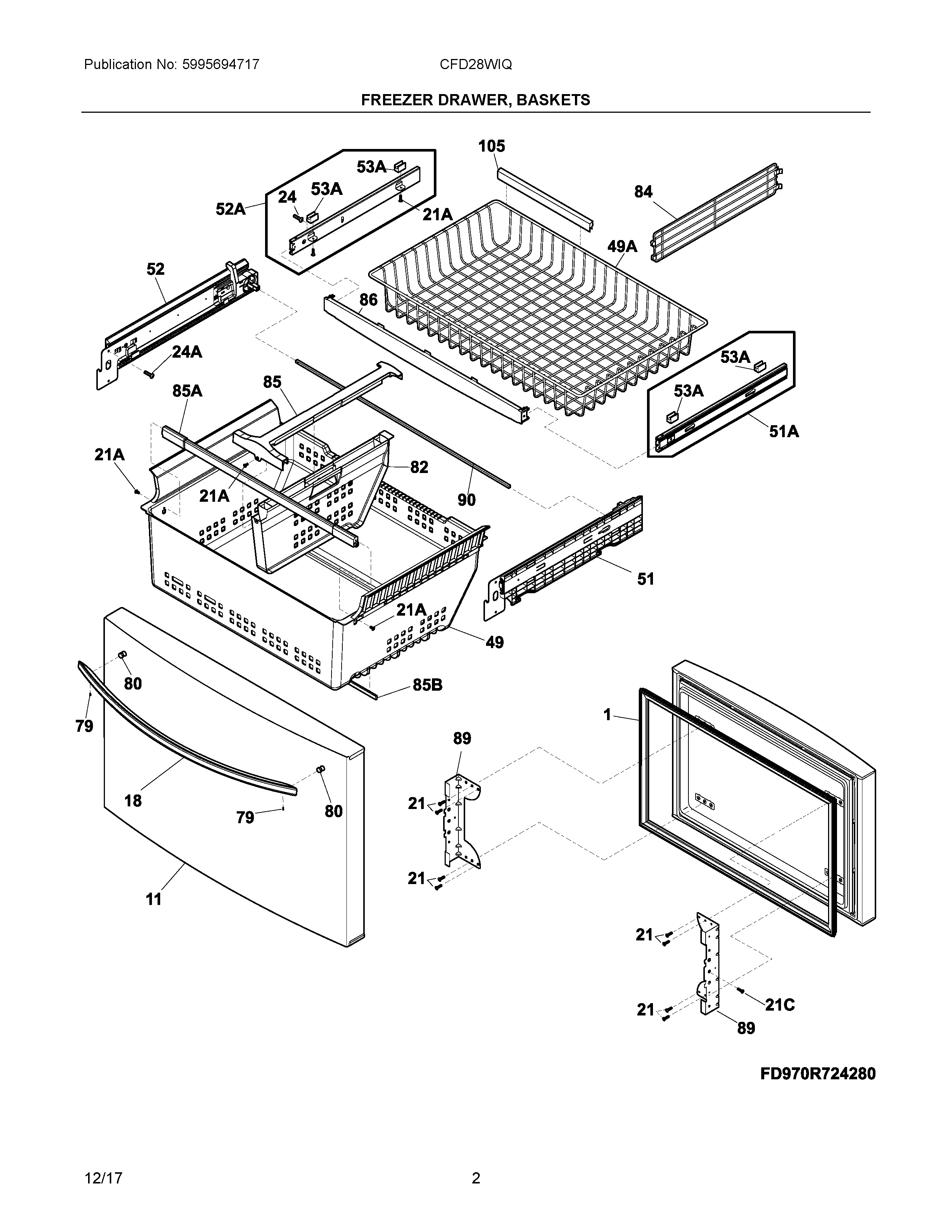

CFD28WIQW0 02 – FREEZER DRAWER, BASKETS

Products

Position	Product
NIA	242011101 Frigidaire Refrigerator Pin-Lock
NIAA	242039701 Frigidaire Refrigerator Screw
NIA	5304497384 Frigidaire Refrigerator Plate
NI	5304467131 Frigidaire Refrigerator Wrench
NIA	242139201 Frigidaire Compression Spring
NIA	242039702 Frigidaire Refrigerator Screw
NI	5304453707 Frigidaire Oven Screw
NI	242146401 Frigidaire Refrigerator Screw
1	GASKET
11	DOOR-FRZR, WHITE, COMPLETE ASSY
18	242090502 Frigidaire Refrigerator Door Handle
21	241690602 Frigidaire Refrigerator Screw
21C	241899703 Frigidaire Refrigerator Screw
21A	241953902 Frigidaire Refrigerator Screw
24A	240383412 Frigidaire Refrigerator Screw
24	5304515677 Frigidaire Package of 4 Screws
49A	241780810 Frigidaire Refrigerator Basket-Frzr
51	5303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
51A	241894223 Frigidaire Drawer Slide Rail, Right
52	SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER
52A	241894224 Frigidaire Refrigerator Slide Assembly
53A	5303918801 Frigidaire Refrigerator Retainer Set of 4
79	218755402 Frigidaire Refrigerator Set Screw
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	5304503705 Frigidaire Refrigerator Divider
84	241780904 Frigidaire Refrigerator Divider
85B	241872203 Frigidaire Refrigerator Beam Support
85A	242139301 Frigidaire Refrigerator Support-Beam
85	242130901 Frigidaire Refrigerator Divider
86	5304507340 Frigidaire Refrigerator Trim
89	241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90	242136901 Frigidaire Refrigerator Timing Bar
105	242116801 Frigidaire Refrigerator Trim-Basket
