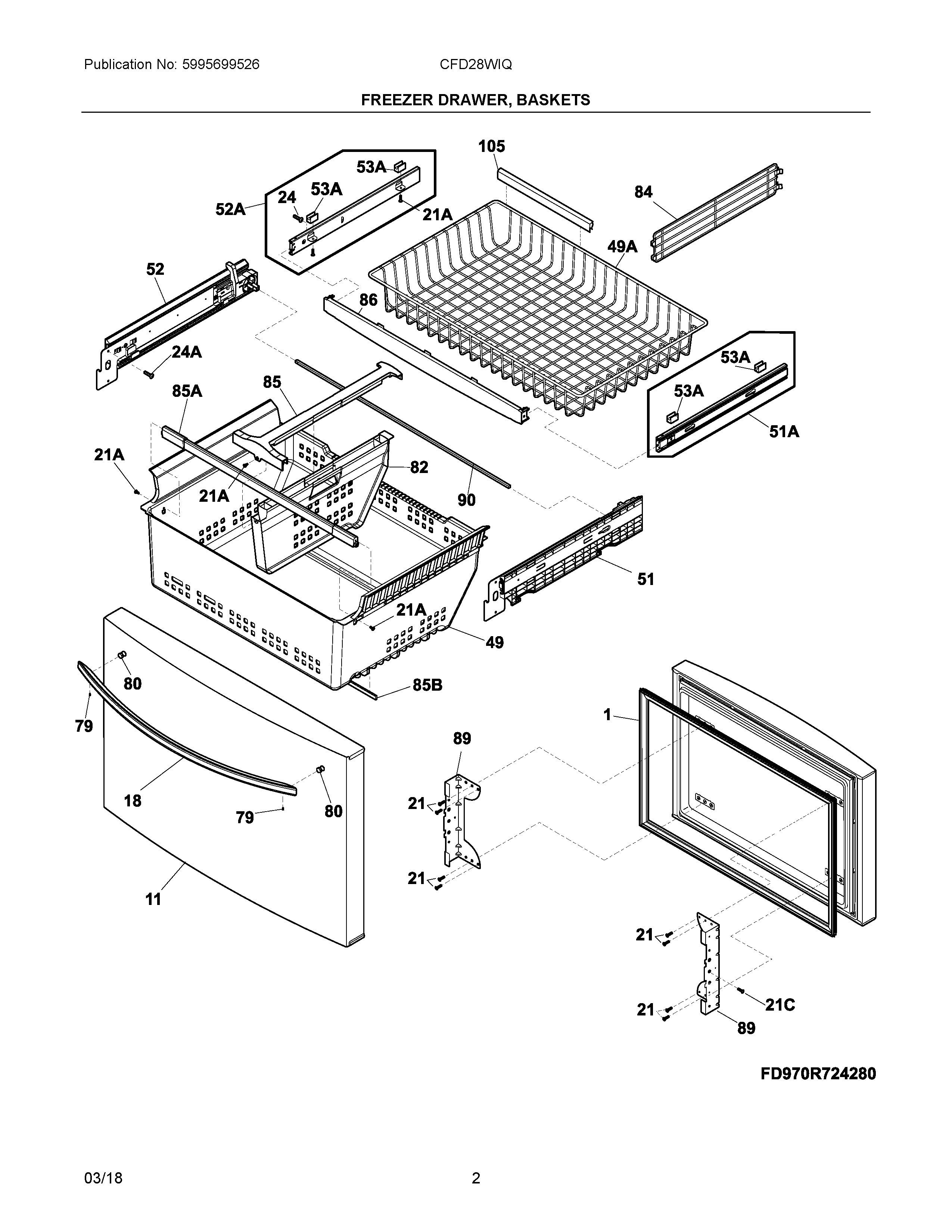

CFD28WIQW9 02 – FREEZER DRAWER, BASKETS

CFD28WIQW9 02 – FREEZER DRAWER, BASKETS

Written by

in

CFD28WIQW9 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242139201 Frigidaire Compression Spring
NI5304453707 Frigidaire Oven Screw
NIA241953908 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA242039702 Frigidaire Refrigerator Screw
NI242146401 Frigidaire Refrigerator Screw
NI5304467131 Frigidaire Refrigerator Wrench
NIA5304497384 Frigidaire Refrigerator Plate
NIAA242039701 Frigidaire Refrigerator Screw
NIA241701902 Frigidaire Refrigerator 3/32" Screwdriver
1GASKET
11DOOR-FRZR, WHITE, COMPLETE ASSY
18242090502 Frigidaire Refrigerator Door Handle
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21C241899703 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49A241780810 Frigidaire Refrigerator Basket-Frzr
495304525892 Frigidaire Refrigerator Freezer Basket
515304502748 Frigidaire Refrigerator Slide Assembly
51A241894229 Frigidaire Refrigerator Assembly Slide
525304502749 Frigidaire Refrigerator Slide Assembly
52A241894230 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
865304507340 Frigidaire Refrigerator Trim
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
