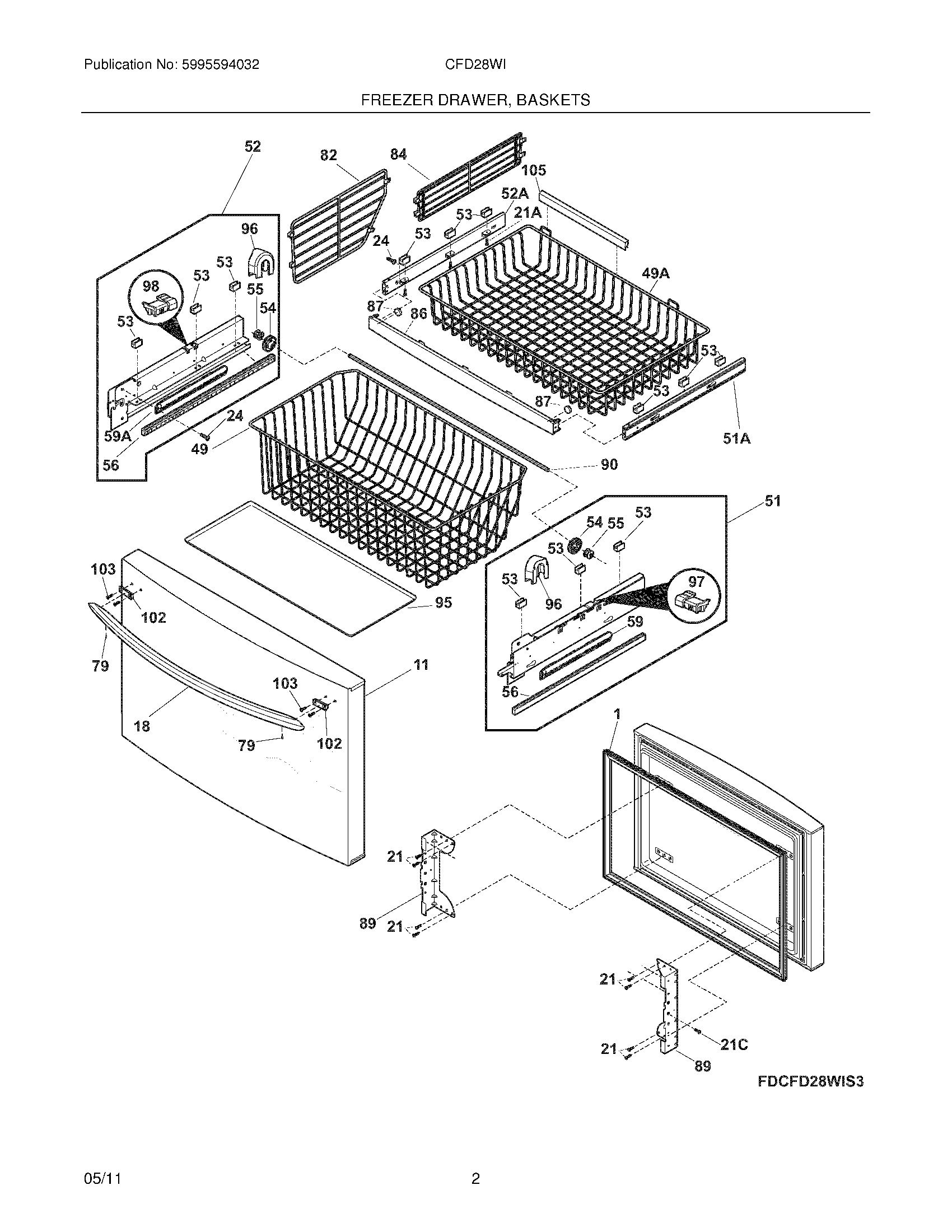

CFD28WIS0 03 – FREEZER DRAWER, BASKETS

CFD28WIS0 03 – FREEZER DRAWER, BASKETS

Written by

in

CFD28WIS0 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242146401 Frigidaire Refrigerator Screw
NI242011101 Frigidaire Refrigerator Pin-Lock
NI5304453707 Frigidaire Oven Screw
NI242039701 Frigidaire Refrigerator Screw
NI5304471621 Frigidaire Refrigerator Handle Trim Kit
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI241979601 Frigidaire Refrigerator Bumper
NIWCI 241999901
NIWCI 241999902
NI5304467131 Frigidaire Refrigerator Wrench
1GASKET
11DOOR-FRZR, STAINLESS, COMPLETE ASSY
18242029401 Frigidaire Refrigerator Brushed Door Handle
21240383407 Frigidaire Refrigerator Screw
21D5304497384 Frigidaire Refrigerator Plate
21A241953902 Frigidaire Refrigerator Screw
21C241899703 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49AWCI 241780802
49WCI 242026801
515304489981 Frigidaire Refrigerator Basket Slide Kit
51A241894223 Frigidaire Drawer Slide Rail, Right
52A5304491063 Frigidaire Slide Rail Assembly Set
52241883704 Frigidaire Refrigerator Slide Assembly
53WCI 241824201
54241770201 Frigidaire Refrigerator Pinion
55241770301 Frigidaire Guard
56WCI 241762801
59A5304474656 Frigidaire Refrigerator Self-Close Assembly
595304474655 Frigidaire Refrigerator Self-Close Assembly
79218755402 Frigidaire Refrigerator Set Screw
82WCI 242026901
86241953202 Frigidaire Refrigerator Bar Assembly
87241812202 Frigidaire Refrigerator Magnet
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90241770705 Frigidaire Bar
95WCI 241770802
96241973501 Frigidaire Refrigerator Cover Pinion White
97241926401 Frigidaire Refrigerator Actuator
98241926402 Frigidaire Refrigerator Actuator
102242029301 Frigidaire Refrigerator Door Handle Mounting Block
103242077302 Frigidaire Screw
