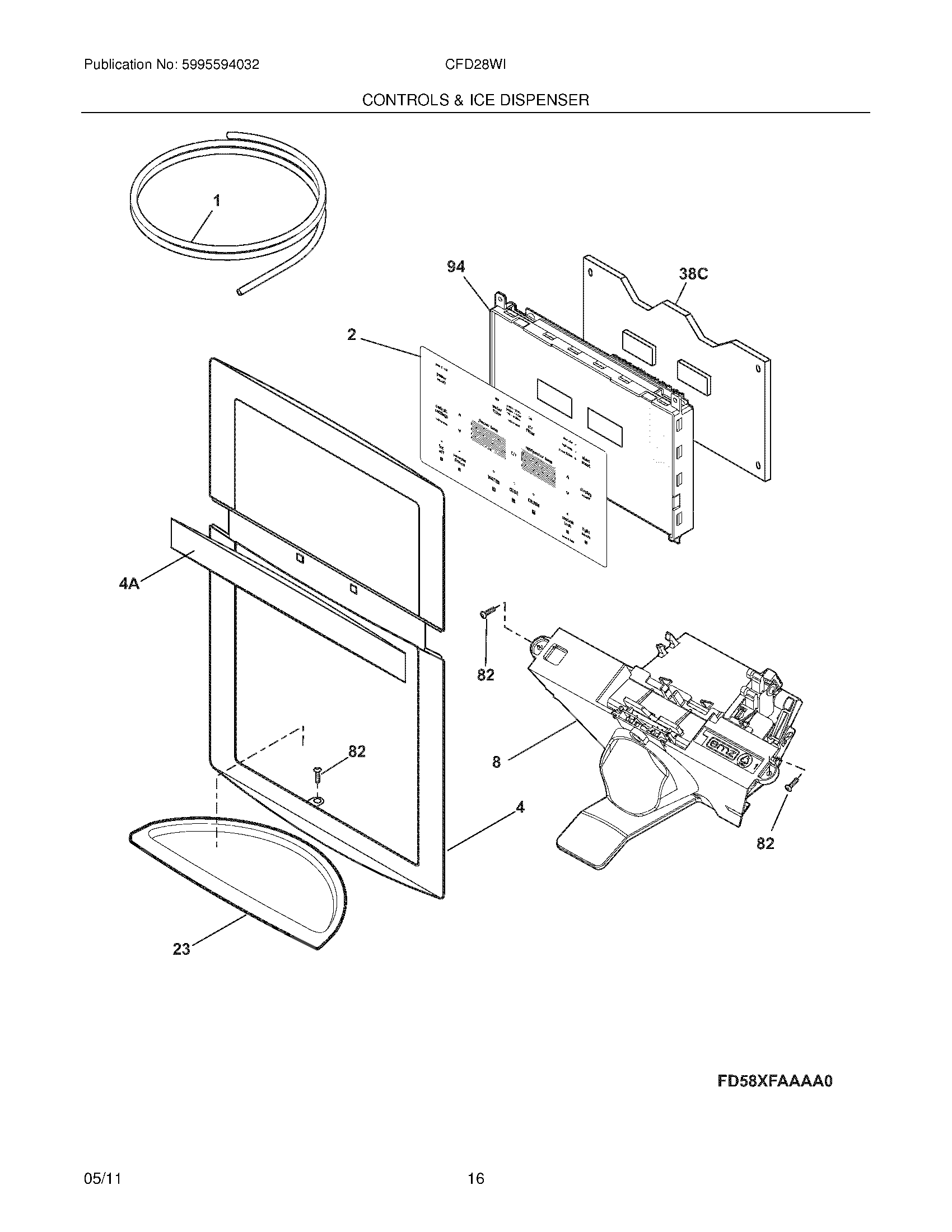

CFD28WIS1 13 – CONTROLS & ICE DISPENSER

CFD28WIS1 13 – CONTROLS & ICE DISPENSER

Written by

in

CFD28WIS1 13 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI241920101 Frigidaire Refrigerator Water Inlet Tube
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI5303918484 Frigidaire Dispenser
NITube-water,5/16 – 67“ ,natural
1Tube-water,5/16 – 64“ ,yellow ,SD
2242166901 Frigidaire Refrigerator Switch
4AWCI 242033903
4WCI 242034203
8242074216 Frigidaire Refrigerator Dispenser Module
23WCI 242034004
38C241973711 Frigidaire Refrigerator Dispenser Control Board
82241953902 Frigidaire Refrigerator Screw
94WCI 242034101
