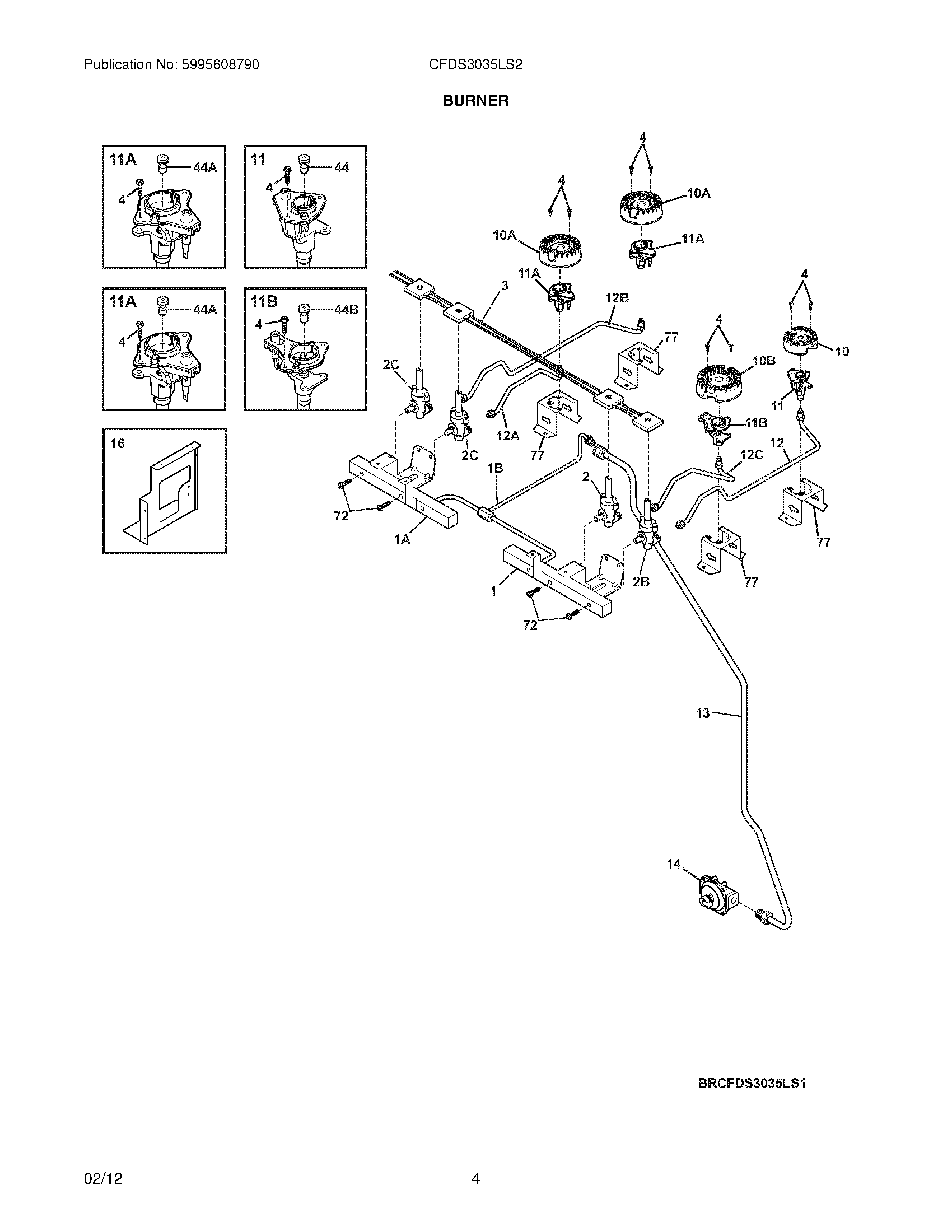

CFDS3035LS2 05 – BURNER

Products

Position	Product
NI	5303323129 Frigidaire Oven Screw
NI	Screw,No.8-18 x 3/8 ,(10)
NI	318199776 Frigidaire Electrical Harness
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318186911
1A	WCI 318305601
1B	318305410 Frigidaire Oven Tube
1	318305600 Frigidaire Oven Manifold
2	WCI 318233930
2B	318233900 Frigidaire Oven Valve
2C	WCI 318233910
3	WCI 318232668
4	316240600 Frigidaire Igniter Mounting Screw
10	316438200 Frigidaire Range Sealed Burner, 5K
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
11	316540800 Frigidaire Igniter/Orifice Assembly
11B	316543206 Frigidaire Igniter Orifice Assembly
11A	316540700 Frigidaire Igniter/Orifice Assembly
12A	318916501 Frigidaire Tube
12B	WCI 318916601
12C	WCI 318916701
12	318916801 Frigidaire Tube
13	WCI 318305110
14	WCI 318122715
16	WCI 318590003
44B	316527513 Frigidaire Oven Orifice
44A	316527500 Frigidaire Oven Burner Orifice
44	316527504 Frigidaire Oven Orifice
72	316215600 Frigidaire Oven Screw
77	WCI 318920300
