CFE1300W2 02 – BULKHEAD

CFE1300W2 02 – BULKHEAD

Written by

in

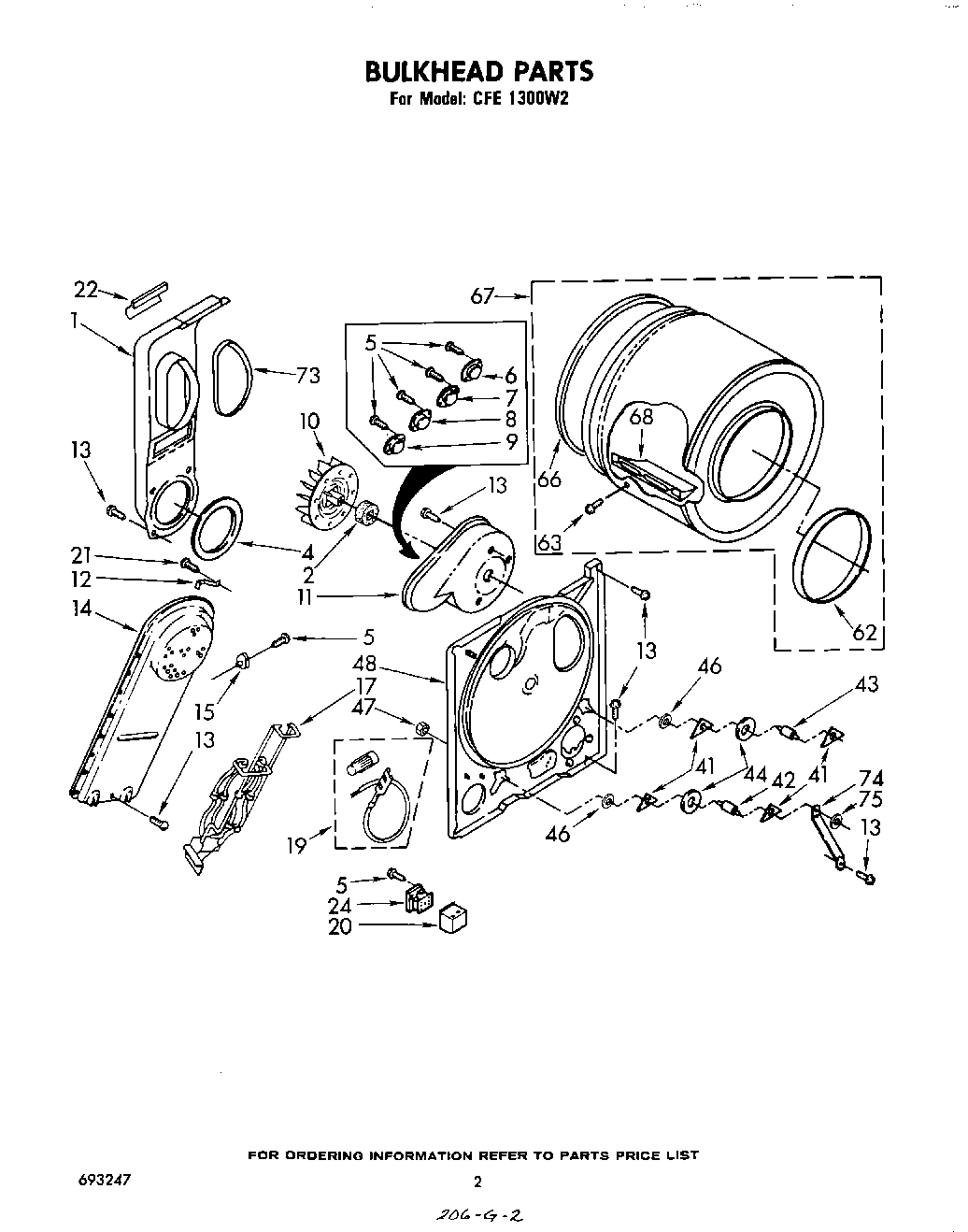

CFE1300W2 02 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2Seal, Blower
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6(Alt.)
6Thermostat, 180~F (82~C)
6(Alt.)
7WP694674 Whirlpool Cycling Thermostat
8Thermostat, 140
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
17WP279462 Whirlpool Element
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20Shield, Relay
22686770 Whirlpool Support Bracket
24Relay, Power
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
