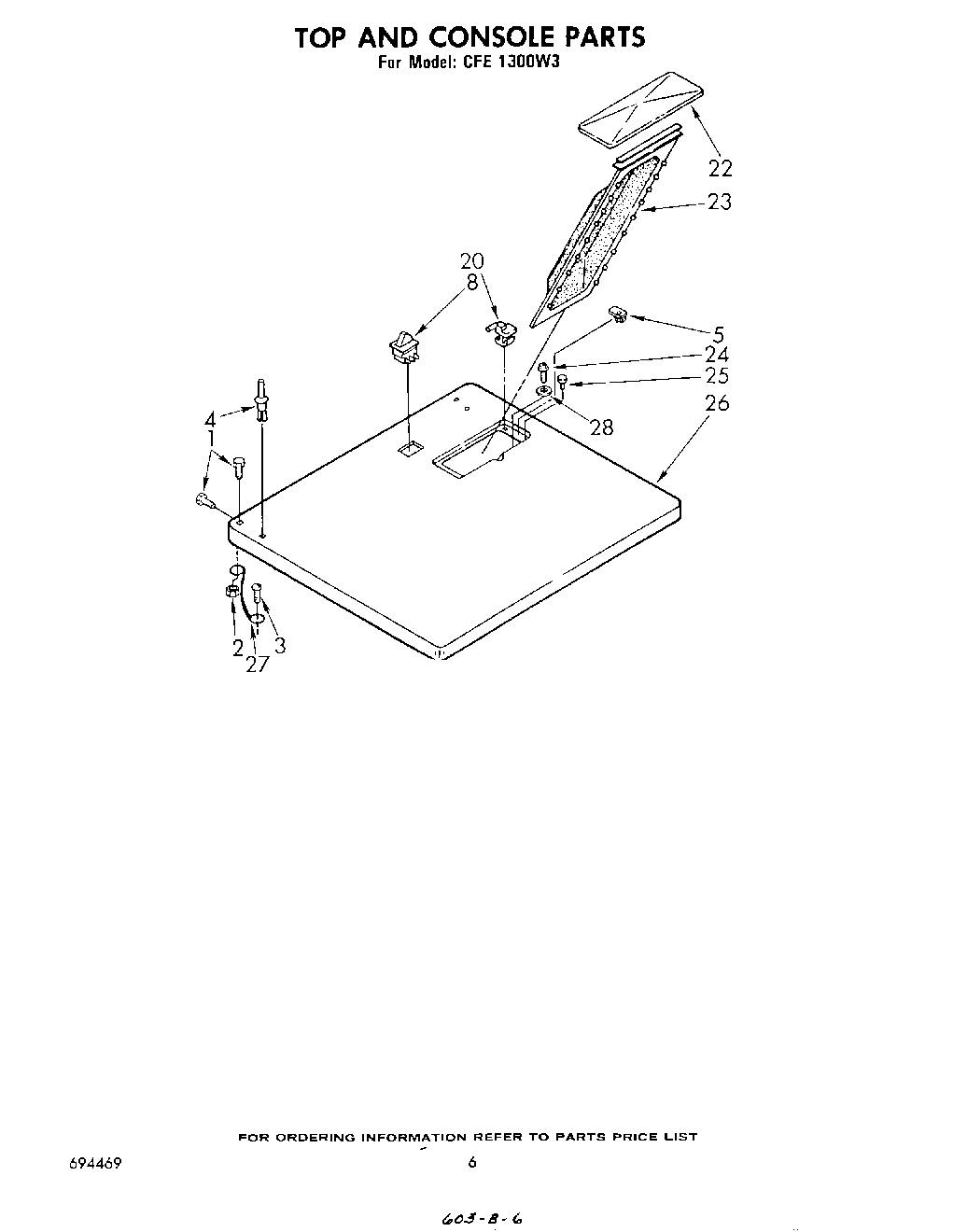

CFE1300W3 04 – TOP AND CONSOLE

Products

PositionProduct
1SCREW
2WP112432 Whirlpool Nut Assembly
4WP356907 Whirlpool Rivet
598460 Whirlpool Nut
8Switch, Push-To-Start
20WPW10044470 Whirlpool Hinge Assembly
20WPW10044480 Whirlpool Hinge Assembly
22Cover, Lint Screen (New Avocado)
22Cover, Lint Screen (Golden Harvest)
22Cover, Lint Screen (Almond)
22Cover, Lint Screen (White)
23339392V Whirlpool Dryer Lint Filter Screen
24W11693756 Whirlpool Screw Assembly
25Bumper, Lint Lid
26Top, Dryer (Almond)
26Top, Dryer (White)
26Top, Dryer (New Avocado)
26Top, Dryer (Golden Harvest)
27Wire, Ground
28Washer (2)
