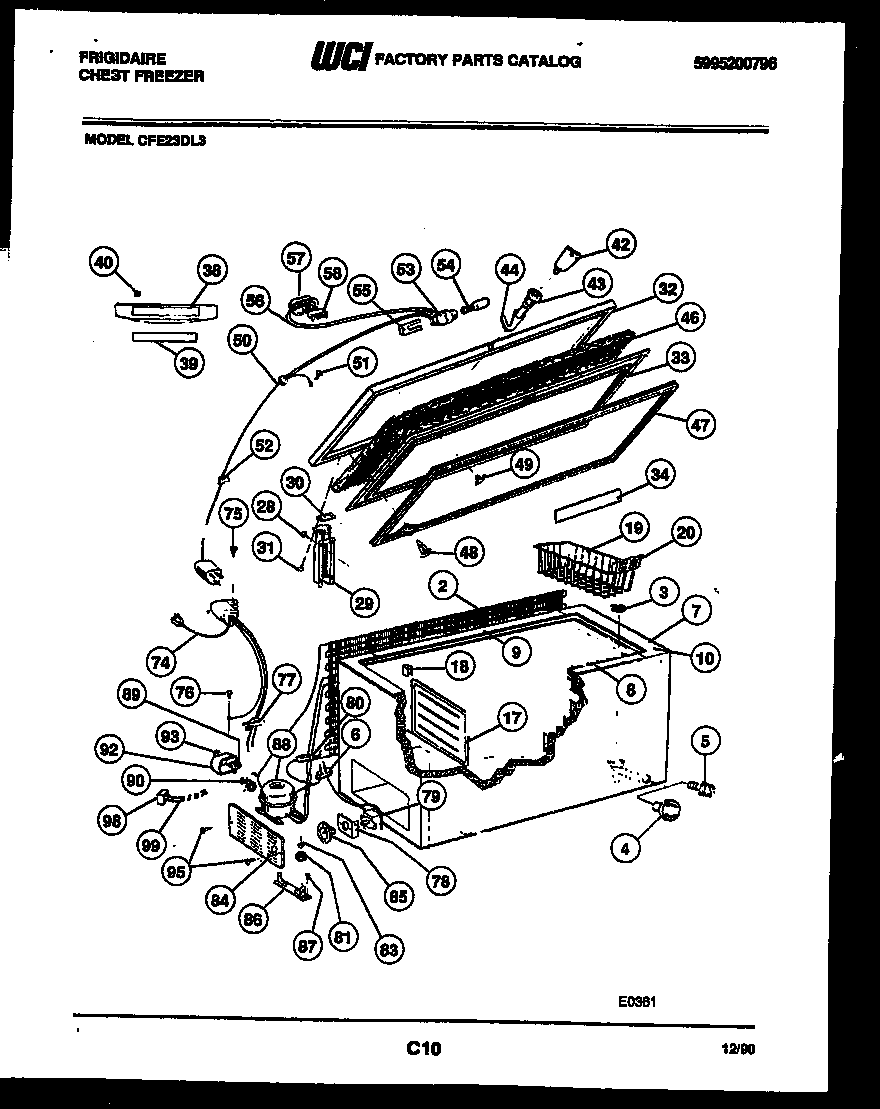

CFE23DL3 02 – CHEST FREEZER PARTS

Products

Position	Product
1	5300300173 Frigidaire Refrigerator Condenser (O/S2)
3	PLUG, DRAIN, LINER
4	WCI 5306599932
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303211221
9	BREAKER REAR
10	WCI 5303211222
12	WCI 08016769
13	WCI 08016771
14	WCI 08016770
17	WCI 5308016784
18	WCI 5306594584
19	BASKET
20	HANDLE BASKET-BLUE (2)
20	HANDLE BASKET-GREEN (2)
20	HANDLE BASKET-YELLOW
20	HANDLE BASKET-RED (2)
23	INSERT NUT
28	SCREW HINGE BASE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	WCI 5309950602
32	WCI 3017353
33	WCI 08016796
34	LIGHT SHIELD
38	WCI 5309950054
39	WCI 08013602
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
44B	LATCH CATCH SUPPORT
44A	LATCH CATCH
46	WCI 5300128901
47	GASKET LID BROWN
48	5303212828 Frigidaire Refrigerator Primary Clip
49	WCI 5309948955
50	HARNESS LID
51	WCI 08037851
52	WCI 09950610
53	WCI 06599955
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
56	WCI 06599965
57	WCI 5308037857
58	WCI 5308002706
74	WCI 5308016805
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	THERMOSTAT TEMP (2 TERM)
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 3003664
85	WCI 5308016783
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR W/ ELECTRICALS-SERVICE
89	WCI 5303017753
90	WCI 5303206836
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
95A	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	CAPACITOR
99	WCI 5303091425
