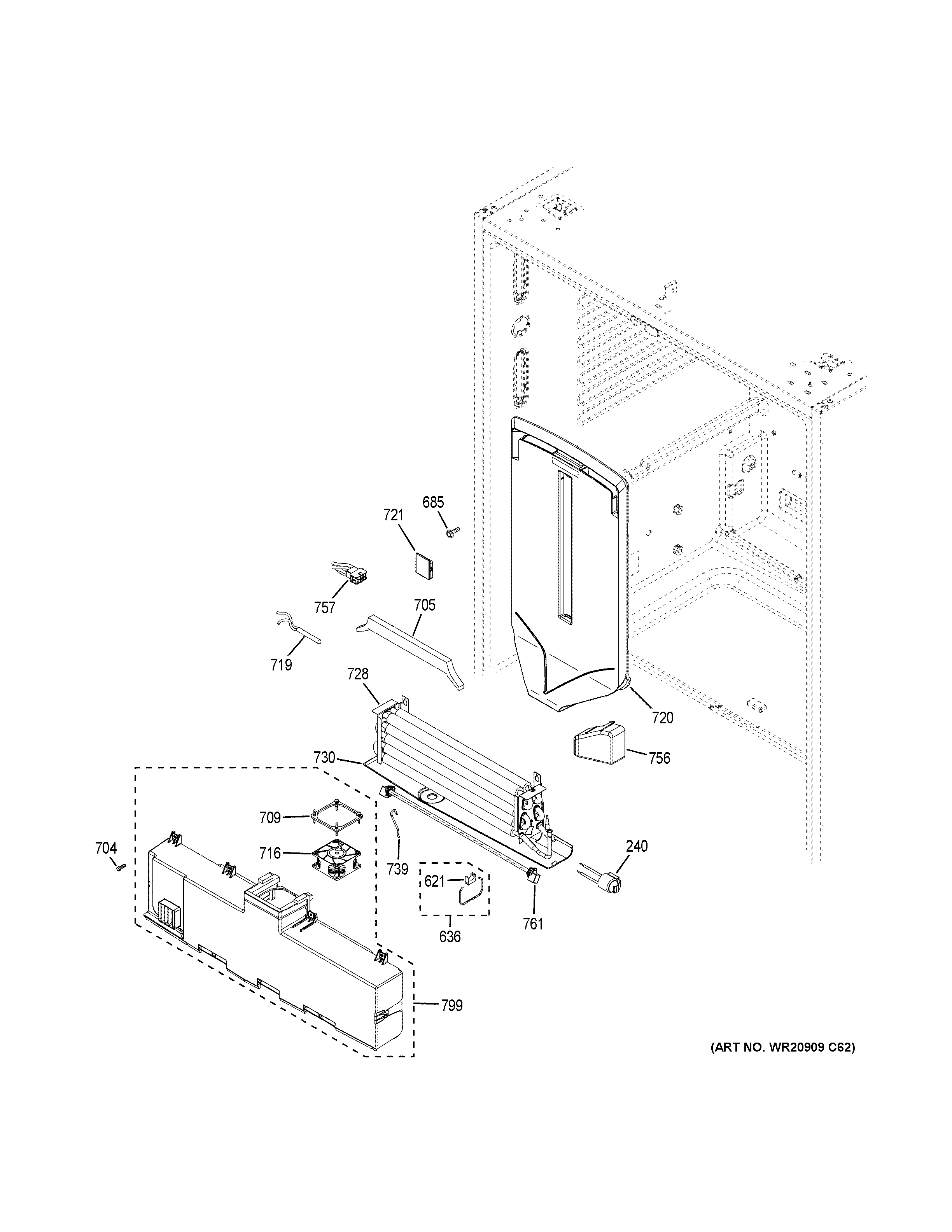

CFE28TP3MBD1 FRESH FOOD SECTION

CFE28TP3MBD1 FRESH FOOD SECTION

Written by

in

CFE28TP3MBD1 FRESH FOOD SECTION

Products

PositionProduct
240THERMOSTAT DEFROST FZ
621WR02X10518 GE Refrigerator Element Holder
636WR02X13678 GE Refrigerator Holder Element Assembly
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
704WR01X11061 GE Refrigerator Screw 8-18 HI/LO HWX 3/4
705WR02X29333 GE Refrigerator Foam Seal
709WR02X30166 GE Refrigerator Mounting Fan Bracket
716WR60X26866 GE Refrigerator Evaporator Fan Motor Assembly
719WR55X10025 GE Refrigerator Temperature Sensor
720WR17X35668 GE Refrigerator Air Tower
721WR02X29328 GE Center Track Screw Cover
728WR87X36103 GE Refrigerator Evaporator
730WR17X13091 GE Refrigerator Trough Drain
739WR51X10133 GE Heater Conduit
756WR17X28921 GE Refrigerator Fresh Food Fan Connector Cover
757HEATER HARNESS FF
761WR51X10132 GE Refrigerator Heater Defrost
799WR17X28923 GE Refrigerator Cover
