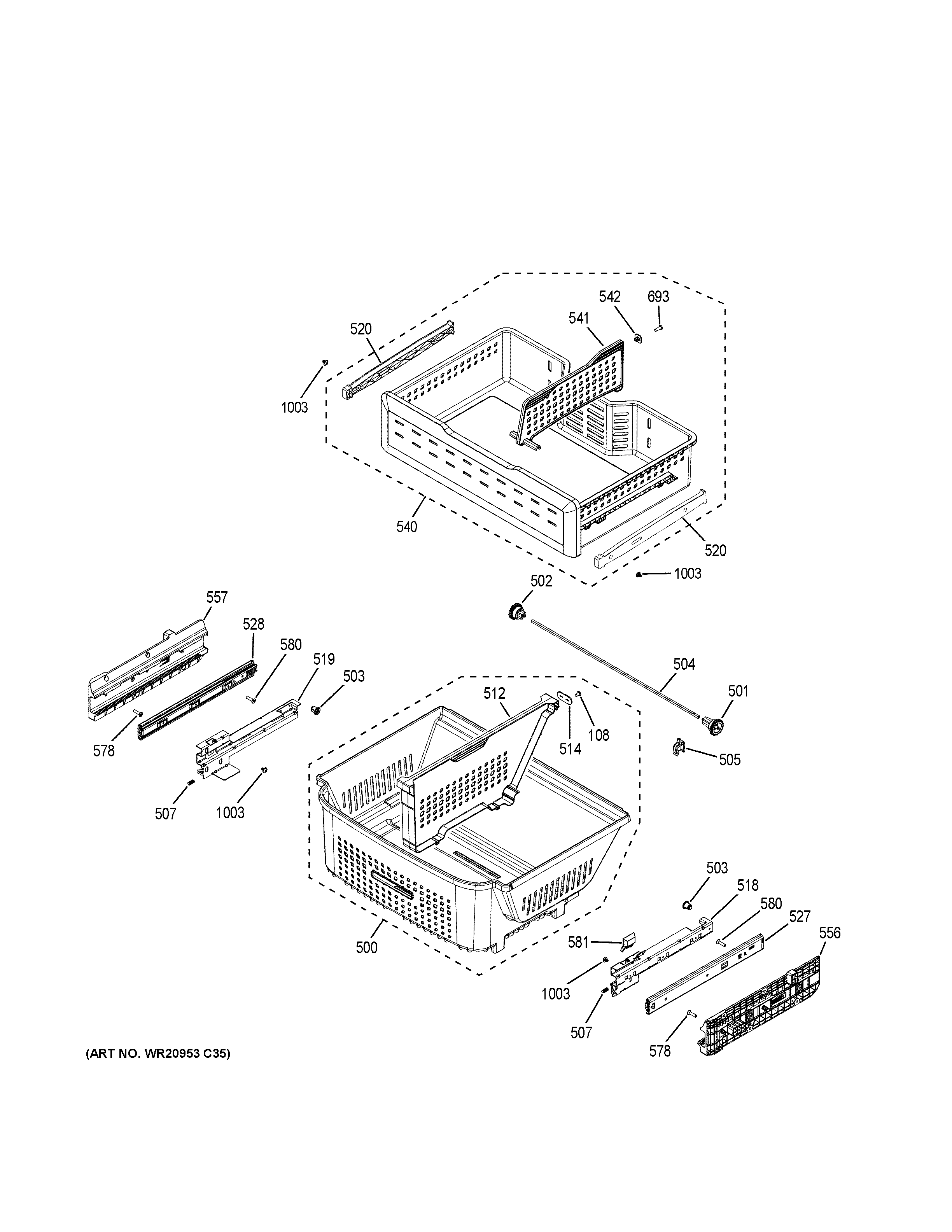

CFE28TP3MFD1 FREEZER SHELVES

CFE28TP3MFD1 FREEZER SHELVES

Written by

in

CFE28TP3MFD1 FREEZER SHELVES

Products

PositionProduct
108WB1X5364 GE Oven Mounting Screw
501WR02X13629 GE Refrigerator Lower Drawer Right Hand Gear
502WR02X13630 GE Refrigerator Lower Left Hand Drawer Gear
503WR02X13631 GE Refrigerator Connector Gear Pinion
504WR02X13670 GE Refrigerator Crossbar Pinion
505WR01X11023 GE Refrigerator Retainer
507WR01X11036 GE Refrigerator Door Screw Set
512WR21X10249 GE Refrigerator Basket Bottom Assembly
514WR02X13674 GE Freezer Slide Support
518WR17X13144 GE Refrigerator Right Hand Slide Bracket Assembly
519WR17X13145 GE Refrigerator Left Hand Slide Bracket Assembly
520WR72X27635 GE Refrigerator Left Hand & Right Hand Glide Support
527WR72X10427 GE Refrigerator Slide Lower Right Hand
528WR72X10428 GE Refrigerator Lower Left Hand Slide
540WR32X26451 GE Refrigerator Freezer Bin
541WR02X13705 GE Freezer Upper Divider Basket
542WR02X13706 GE Refrigerator Stopper Divider Upper
556WR72X20645 GE Refrigerator Holder Slide Right Hand
557WR72X20644 GE Refrigerator Holder Slide Left Hand
578WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
580WR01X11013 GE Refrigerator Screw 10-18 FLT20 3/4 S
581WR02X13632 GE Refrigerator Striker Light Switch
693WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
1003WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
