CFE28TP3MMD1 ICE MAKER & DISPENSER

CFE28TP3MMD1 ICE MAKER & DISPENSER

Written by

in

CFE28TP3MMD1 ICE MAKER & DISPENSER

Products

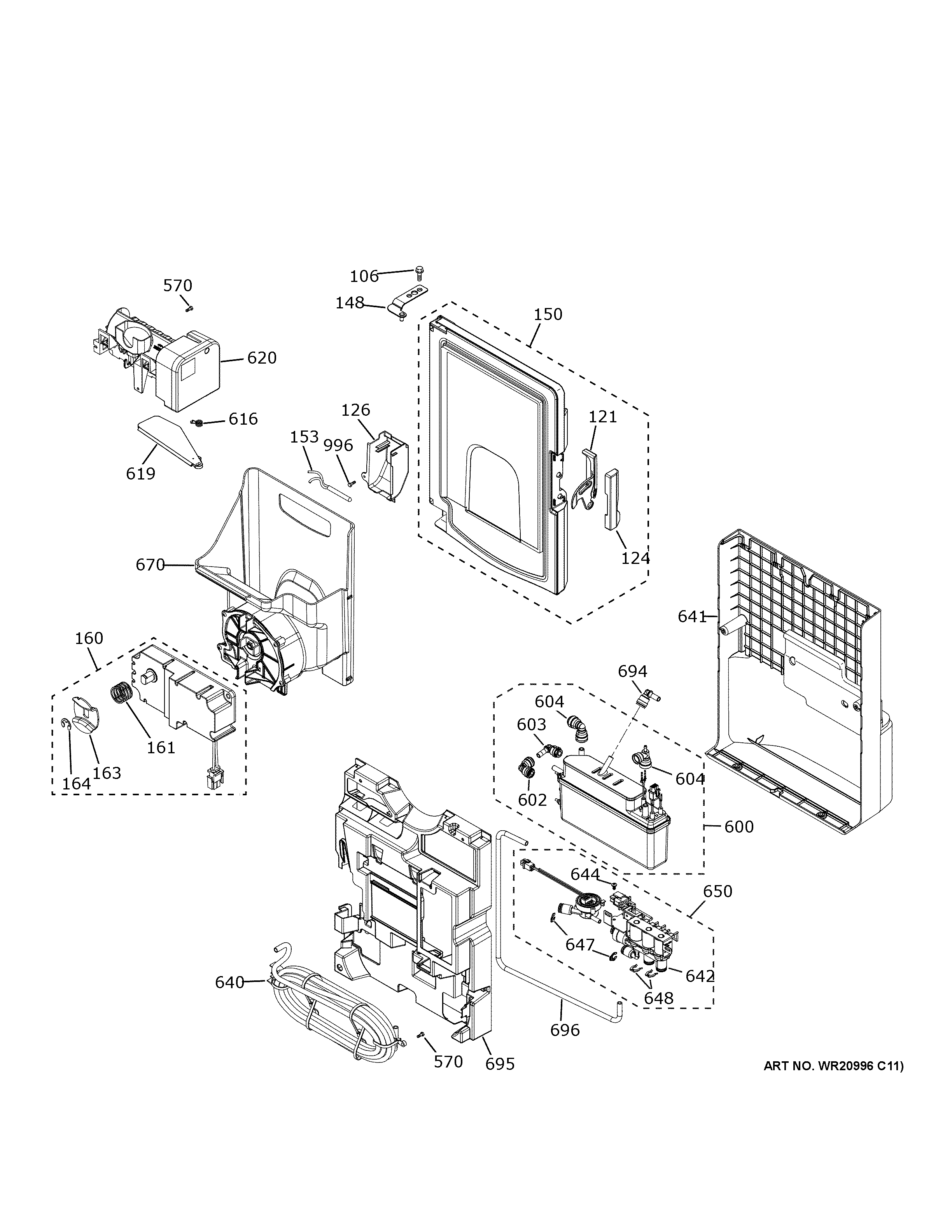

PositionProduct
106WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
121LATCH ICEBOX DOOR
124WR02X23032 GE Refrigerator Cover
126ICE BOX THERMISTOR COVER
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
150WR78X26087 GE Refrigerator Icebox Door Assembly
153WR55X10025 GE Refrigerator Temperature Sensor
160WR60X32568 GE Refrigerator Auger Motor
161WR02X13645 GE Refrigerator Clutch Spring Assembly
163WR02X13647 GE Refrigerator Clutch Coupling AM
164WR02X13648 GE Refrigerator E-Clip
570WR02X36721 GE Screw St4.0-1.4 Ab Ihxwt20 20
600WR17X26291 GE Refrigerator Tank Hot Water Assembly
602WR02X13753 GE Connector 90 Degree 5/16 Height
603WR02X13754 GE Connector 5/16 Stem Height
604WR02X13755 GE Refrigerator Connector 90 3/8-5/16 HT
616WR01X11033 GE Refrigerator Spring Feeler Arm
619WR29X10110 GE Refrigerator IM Feeler Arm
620ICEMAKER
640WR17X27627 GE Refrigerator Cold Water Coil
641WR13X24981 GE Refrigerator Cover Valve and Tank Assembly
642WR57X10102 GE Refrigerator Tri-Valve Water Assembly
644SCR M4X1.59 MCH P 10MM S
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
648WR01X11040 GE Refrigerator Quick Clip Connect 5/16
650WR57X24974 GE Refrigerator Tri-Water Valve with FM Assembly
670WR30X10174 GE Refrigerator Ice Bucket and Crusher
694WR02X24977 GE Refrigerator 5/16 Stem Connector
695WR13X25912 GE Refrigerator Housing Tray Valve Tank
696WR02X24975 GE Refrigerator 3-Way Valve Tube to HW Tank
996WR02X36717 GE Screw St4.8-1.6 Ab Trt20 19 S
