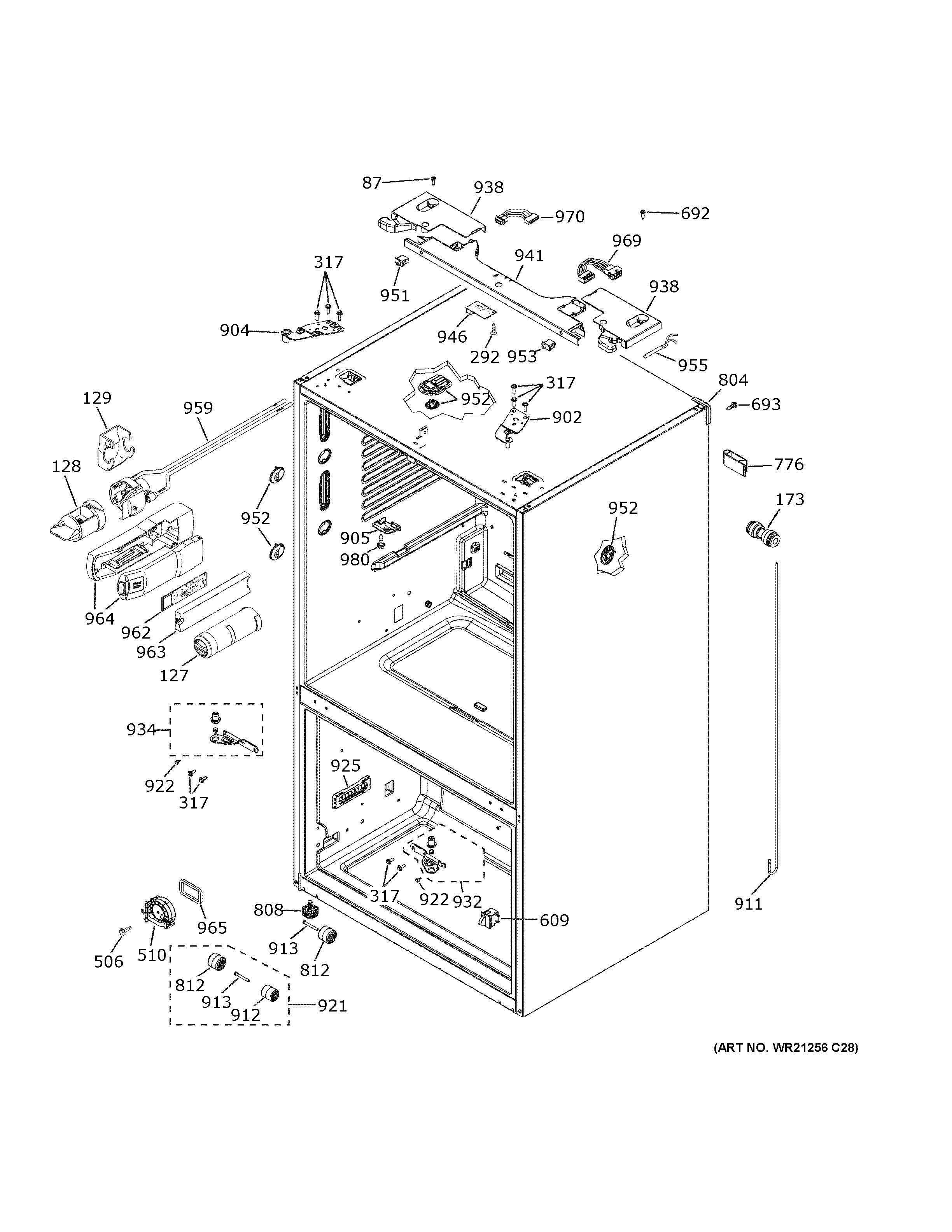

CFE28TP4MMW2 CASE PARTS

CFE28TP4MMW2 CASE PARTS

Written by

in

CFE28TP4MMW2 CASE PARTS

Products

PositionProduct
87WR02X36891 GE Screw ST3.9-1.4 Ab IHXWT20
127XWFE GE Refrigerator Water Filter
128WR17X33825 GE Bypass Filter Plug
129WR17X31815 GE Refrigerator Filter Manifold Bracket
173WR02X13738 GE Refrigerator Coupler Straight 1/4
292ETHERNET BOARD SCREW
317WR02X36714 GE Refrigerator Screw M6-1.0 T IHXW 20 S
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
510WR60X36825 GE Icemaker Fan with Thermistor
609WR23X37285 GE Light Switch
692WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
693WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
776WR02X10522 GE Refrigerator Clamp Tube
804WR02X13759 GE Refrigerator Cap Case Corner Assembly DGY
808WR01X11046 GE Refrigerator Screw Levelling Assembly
812WR02X13616 GE Front Wheel Overmold Assembly
902WR13X25910 GE Refrigerator Hinge Top Pin Assembly Right Hand
904WR13X25911 GE Refrigerator Top Left Hand Hinge Assembly
905WR01X31733 GE Refrigerator Mullion Striker
911WR02X32126 GE Refrigerator PEX Water Line
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
921WR49X10268 GE Refrigerator Front/Rear Wheel & Axle
922WR02X36985 GE Screw ST4.8-1.6 Ab PNT25 19 S
925WR02X13623 GE Refrigerator Louver Duct IM Return
932WR13X32036 GE Refrigerator Center Hinge Right
934WR13X32039 GE Refrigerator Left Center Hinge
938WR17X20164 GE Refrigerator Hinge Endcap Assembly DGY (2pk)
941WR17X13226 GE Refrigerator Middle Cover Assembly Dark Gray
946WR55X34645 GE Refrigerator Wifi and Humidity Board
952WR55X11132 GE Refrigerator LED Light Cover Assembly
953WR23X29161 GE Refrigerator Door Switch
955WR55X10025 GE Refrigerator Temperature Sensor
959FILTER MANIFOLD
962RFID BOARD
963WR02X23748 GE Refrigerator Cover Filter
964COVER WATER FILTER ASM
965WR14X10384 GE Refrigerator Fan Duct Gasket
969WR23X29156 GE Door Switch Harness
970WR23X10777 GE Refrigerator Door Case Harness
980WR01X11060 GE Scr 8-18 Ab Hex 9/16S
