CFE28UP2MCS1 BEVERAGE DISPENSER

CFE28UP2MCS1 BEVERAGE DISPENSER

Written by

in

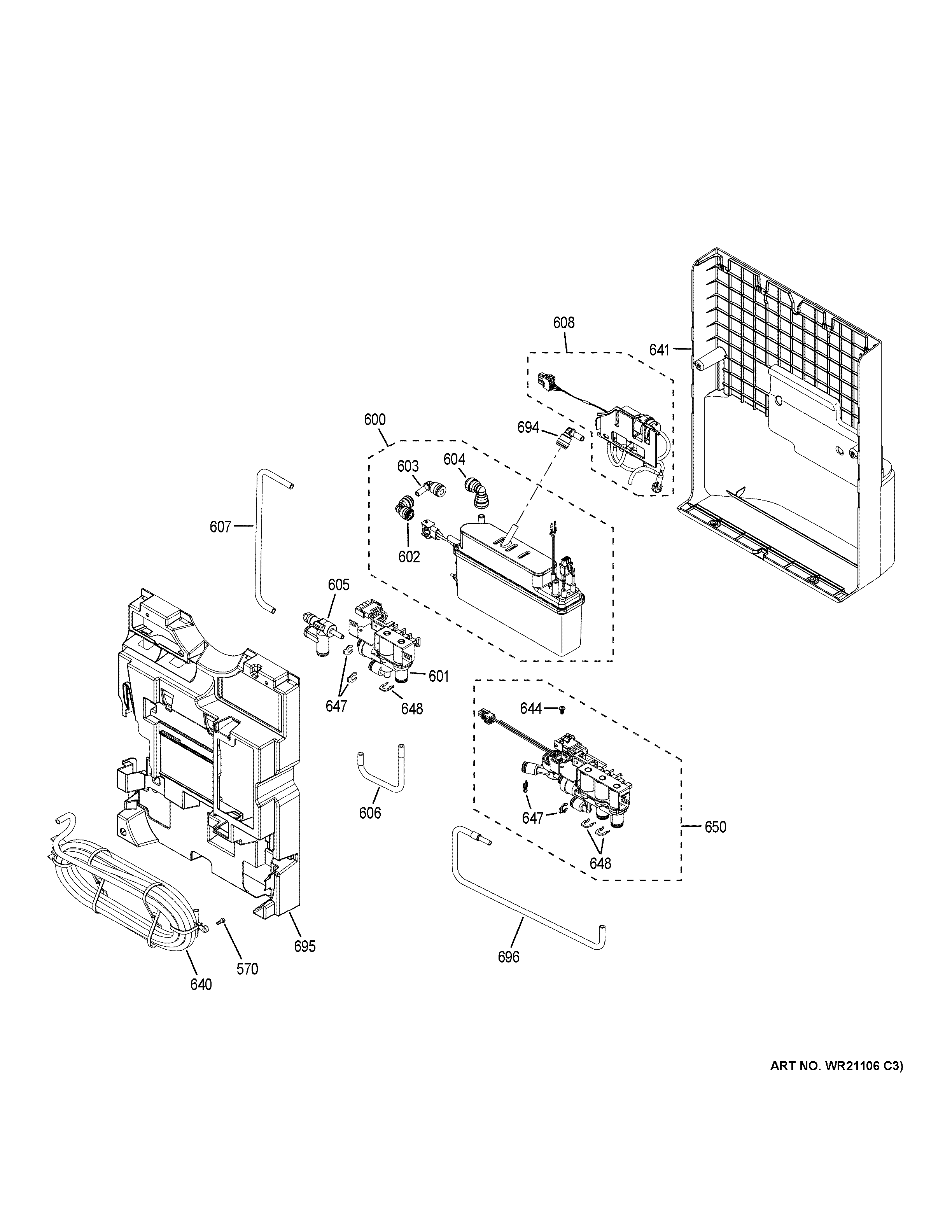

CFE28UP2MCS1 BEVERAGE DISPENSER

Products

PositionProduct
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
600WR17X25782 GE Refrigerator Single SERVE Hot Water T
601DUAL WATER VALVE
602WR02X13753 GE Connector 90 Degree 5/16 Height
603WR02X13754 GE Connector 5/16 Stem Height
604WR02X13755 GE Refrigerator Connector 90 3/8-5/16 HT
605WR01X24982 GE Refrigerator Stainless Steel Flow Control Assembly
606WR01X24987 GE Refrigerator Tube Stainless Steel FC To VLC
607WR01X24990 GE Refrigerator Stainless Steel Tube FC to HW Tank
608WR57X31545 GE Refrigerator Bracket Pump & Valve
640WR17X27627 GE Refrigerator Cold Water Coil
641WR13X24981 GE Refrigerator Cover Valve and Tank Assembly
644SCR M4X1.59 MCH P 10MM S
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
648WR01X11040 GE Refrigerator Quick Clip Connect 5/16
650WR57X25390 GE Refrigerator Tri Dummy Valve with FM Assembly
694WR02X24977 GE Refrigerator 5/16 Stem Connector
695WR13X25912 GE Refrigerator Housing Tray Valve Tank
696WR01X24985 GE Refrigerator Tube Stainless Steel Valve To
