CFE28UP2MCS1 DISPENSER DOOR

CFE28UP2MCS1 DISPENSER DOOR

Written by

in

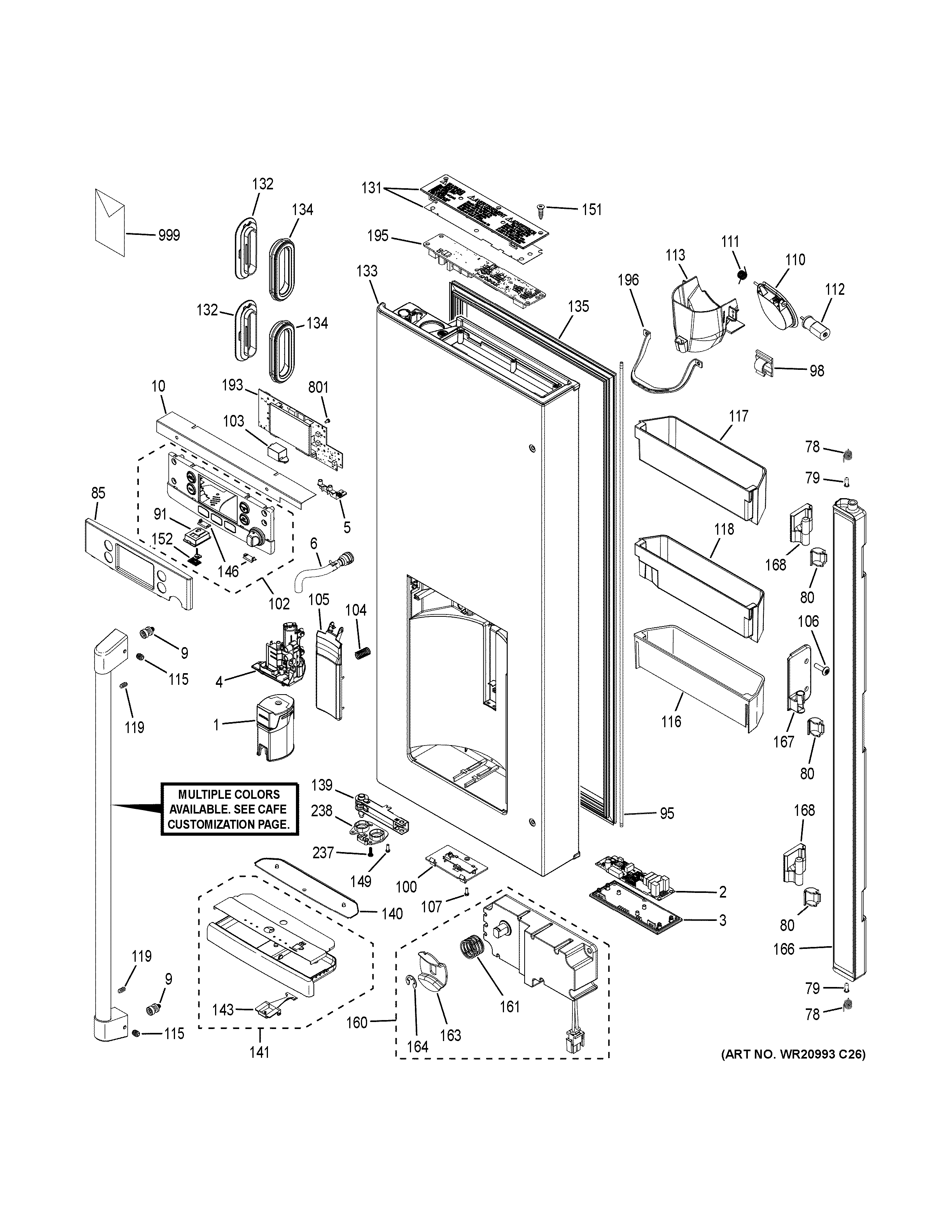

CFE28UP2MCS1 DISPENSER DOOR

Products

Position	Product
1	WR02X30247 GE Refrigerator Single Serve Brew Module
2	WR55X26546 GE Refrigerator Circuit Board Assembly
3	PCB COVER ASM
4	WR60X36685 GE Refrigerator Cafe Bracket and Motor
5	WR02X25674 GE Refrigerator Standoff Speaker
6	WR02X34048 GE Refrigerator Silicone and Mesh Tube with Clamp
9	WR01X11007 GE Refrigerator Fastener Door Handle
10	GEN WR14X10382
78	WR01X11052 SPRING HINGE MULLION
79	WR01X11053 GE Refrigerator Sleeve Spring Mullion
80	WR02X13739 GE Refrigerator Hinge Cap
85	WR17X13172 GE Refrigerator Display Cover
91	WR02X13751 GE Housing Cover USB
95	WR02X32127 GE Refrigerator PEX Water Line
98	WR01X11064 GE Refrigerator Plastic Clip
100	COVER LED FZ ASM
102	WR17X27131 GE Refrigerator Stainless Steel K-Cup Display Assembly
103	WR55X11139 GE Refrigerator Speaker
104	WR01X11027 GE Refrigerator Spring
105	WR17X13165 GE Refrigerator Front Paddle Switch Assembly
106	WR01X11054 GE Refrigerator Screw 8-18 FLP 1/2"
107	WH2X1217 GE Screw Assembly
110	WR17X13241 GE Refrigerator Door
111	WR01X11017 GE Refrigerator Duct Door Spring
112	WR60X10344 GE Refrigerator Duct Door Motor
115	WR01X20424 GE Refrigerator Screw
116	WR71X24976 GE Ice Bin Bottom Door
117	WR71X11045 GE Bin Door Shelf
118	WR71X11046 GE Refrigerator Left Hand Middle Door Ice Bin
119	WR01X27135 GE Refrigerator Screw Set
131	WR02X13741 GE Refrigerator Circuit Board Cover Assembly
132	WR14X25124 GE Refrigerator Collar Port
133	WR78X37436 GE Refrigerator Left Hand Door Single
134	WR14X10364 GE Refrigerator Port Gasket
135	WR14X29300 GE Refrigerator Door Gasket Dorian Gray
139	WR11X23034 GE Refrigerator Left Hand Door Closure Assembly
140	WR17X13174 GE Refrigerator Assembly Tray Guard
141	WR17X30435 GE Refrigerator Drip Tray Single SERVE Stain
143	GEN WR02X13747
146	WR02X13655 GE Refrigerator LED Light Shield
149	WR01X10196 GE Refrigerator Screw 8-18 HID02
151	WR01X11028 GE Screw Flat 8-18 1/2
152	COVER USB
160	WR49X10322 GE Refrigerator Ice Bucket and Motor Kit
161	WR02X13645 GE Refrigerator Clutch Spring Assembly
163	WR02X13647 GE Refrigerator Clutch Coupling AM
164	WR02X13648 GE Refrigerator E-Clip
166	WR17X13240 ARTICULATING MULLION, GRAY
167	WR13X10984 GE Refrigerator Hinge Center Mullion
168	WR13X10985 GE Refrigerator Fresh Food Door Hinge Assembly
193	WR55X34170 GE Refrigerator Cafe Display Board Single SE
195	WR55X44125 GE Refrigerator Door Control Board
196	WR17X30650 GE Refrigerator Double Tube Ice Funnel
237	WR01X11032 GE Refrigerator Screw
238	WR02X13634 GE Refrigerator Door Stop Assembly RH/LH
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
999	PM MINI MANUAL AND WIRING
