CFE28UP2MES1 FRESH FOOD SHELVES

CFE28UP2MES1 FRESH FOOD SHELVES

Written by

in

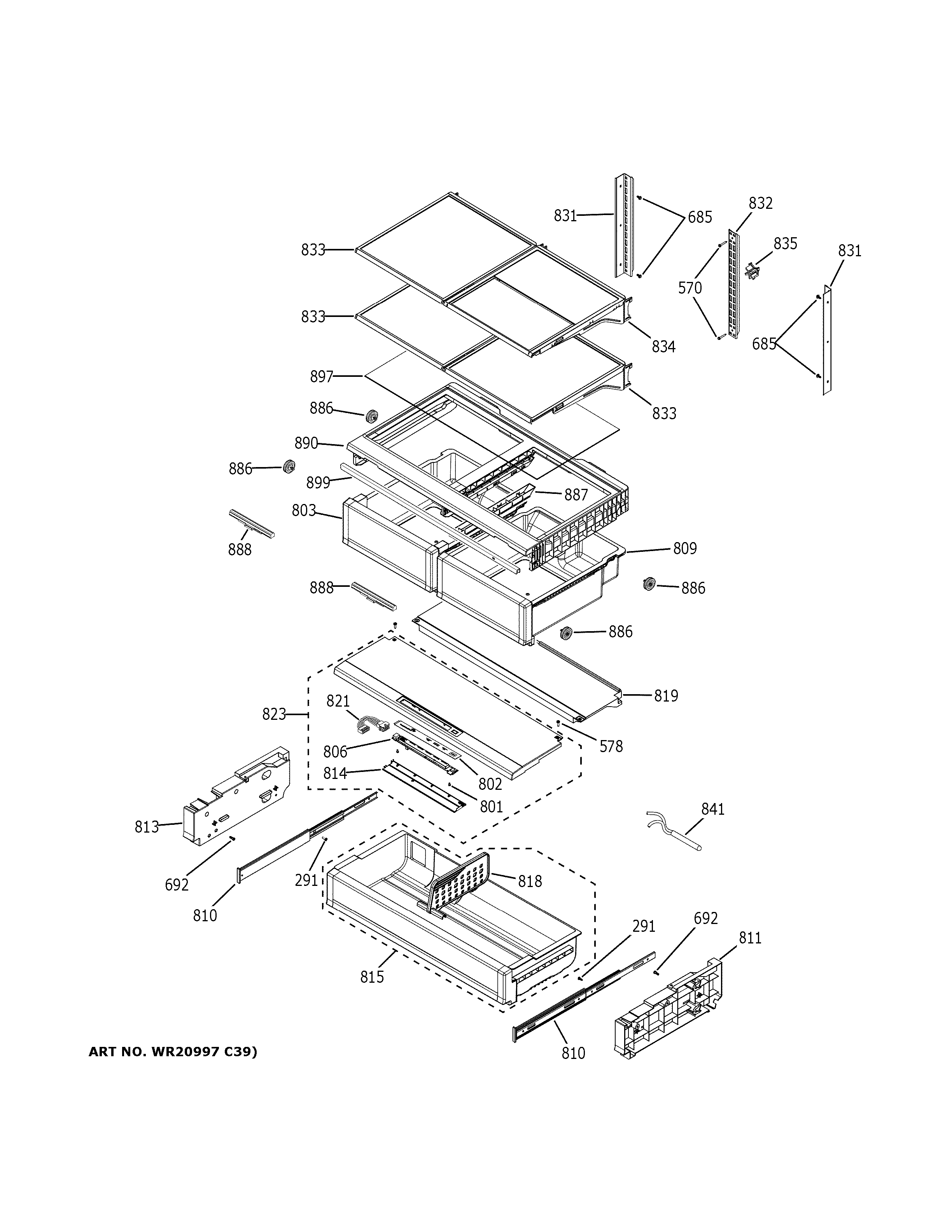

CFE28UP2MES1 FRESH FOOD SHELVES

Products

PositionProduct
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
578WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
692SCREW
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
802WR04X23038 GE Refrigerator Meat Pan Overlay Assembly
803WR32X32033 GE Refrigerator Vegetable Pan
806WR55X31590 GE Deli Pan Board
809WR32X32034 GE Refrigerator Vegetable Crisper Pan
810SLIDE ASM MP LH
811WR72X10445 GE Right Side Support
813WR72X10446 GE Support Left Side
814WR32X23048 GE Refrigerator Meat Pan Diffuser
815WR32X32032 GE Refrigerator Adjustable Temperature Drawer
818WR17X13074 GE Refrigerator Meat Pan Divider
819WR72X31329 GE Refrigerator Deli Pan Top Rear Cover
821HARNESS MEAT PAN & SENSOR
823WR32X30866 GE Refrigerator Deli Pan Board and Top Cover
831WR72X21071 GE Refrigerator Side Track
832WR72X10429 GE Refrigerator Center Track
833WR32X31605 GE Refrigerator Shelf
834WR32X32030 GE Refrigerator Quick Space Shelf
835WR02X13679 GE Refrigerator Track Spacer
841WR55X10025 GE Refrigerator Temperature Sensor
886WR02X13658 GE Refrigerator Roller Assembly
887WR72X10431 GE Refrigerator Guide Roller Vegetable Pan
888WR17X24925 GE Refrigerator Damper Vegetable Pan
890WR32X10864 GE Refrigerator VEG. Top Frame Assembly
897WR32X10865 GE Refrigerator Crisper Drawer Glass Cover
899WR02X21803 GE Refrigerator Bar Reinforcement
