CFE28USHCSS ICE MAKER & DISPENSER

CFE28USHCSS ICE MAKER & DISPENSER

Written by

in

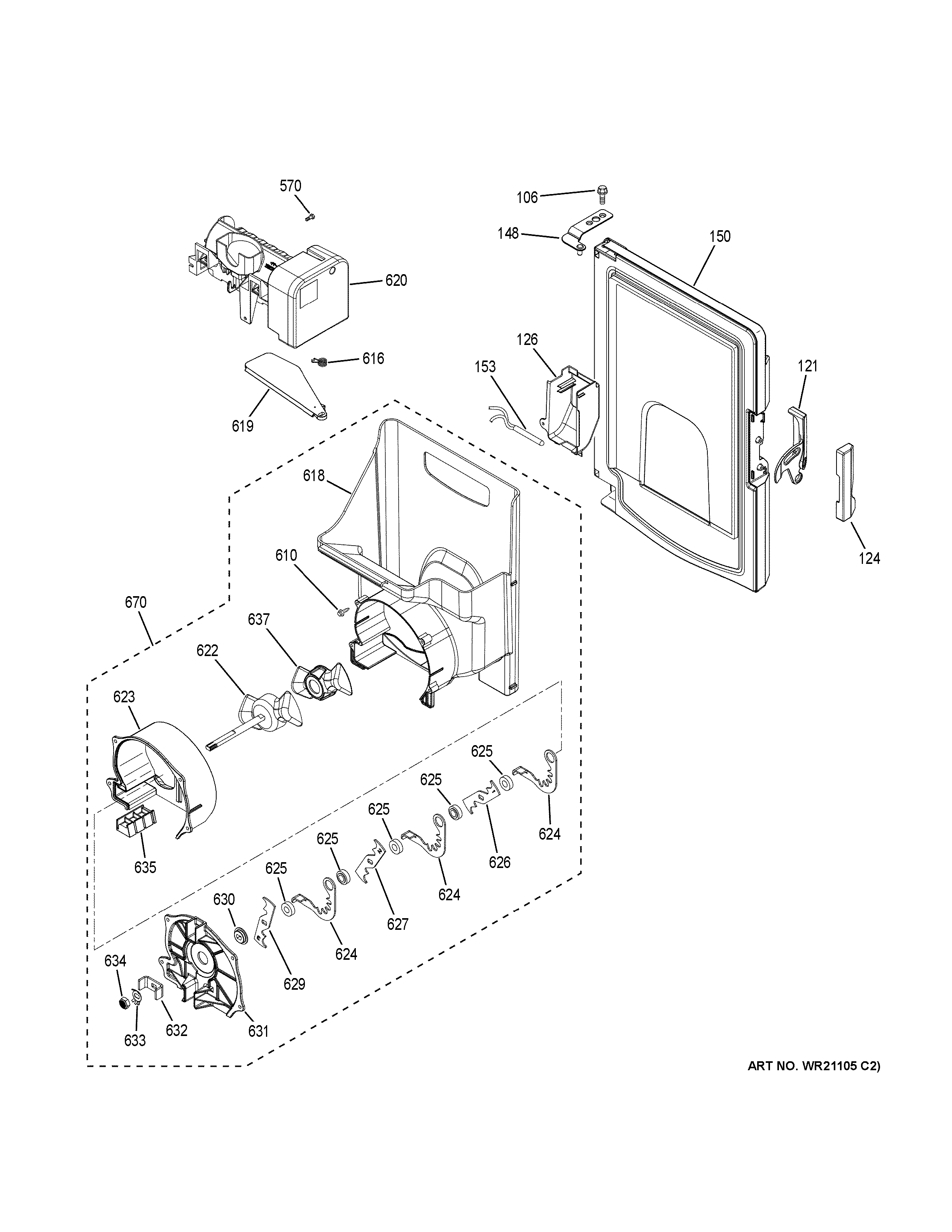

CFE28USHCSS ICE MAKER & DISPENSER

Products

PositionProduct
106WR01X11054 GE Refrigerator Screw 8-18 FLP 1/2"
121LATCH ICEBOX DOOR
124WR02X23032 GE Refrigerator Cover
126ICE BOX THERMISTOR COVER
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
150WR78X26087 GE Refrigerator Icebox Door Assembly
153WR55X10025 GE Refrigerator Temperature Sensor
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
610BOSS SCR 10-14.5 1/2 ICE
616WR01X11033 GE Refrigerator Spring Feeler Arm
619WR29X10110 GE Refrigerator IM Feeler Arm
620ICEMAKER
622AGITATOR ASM
627MOVING BLADE CRUSHER
629MOVING BLADE CRUSHER
630SPACER CRUSHER END
632COUPLING BUCKET
633WR01X11018 GE Refrigerator Washer Lock
634WR30X10174 GE Refrigerator Ice Bucket and Crusher
635HOLDER STATIONARY BLADE
637WR02X13681 GE Agitator Insert
