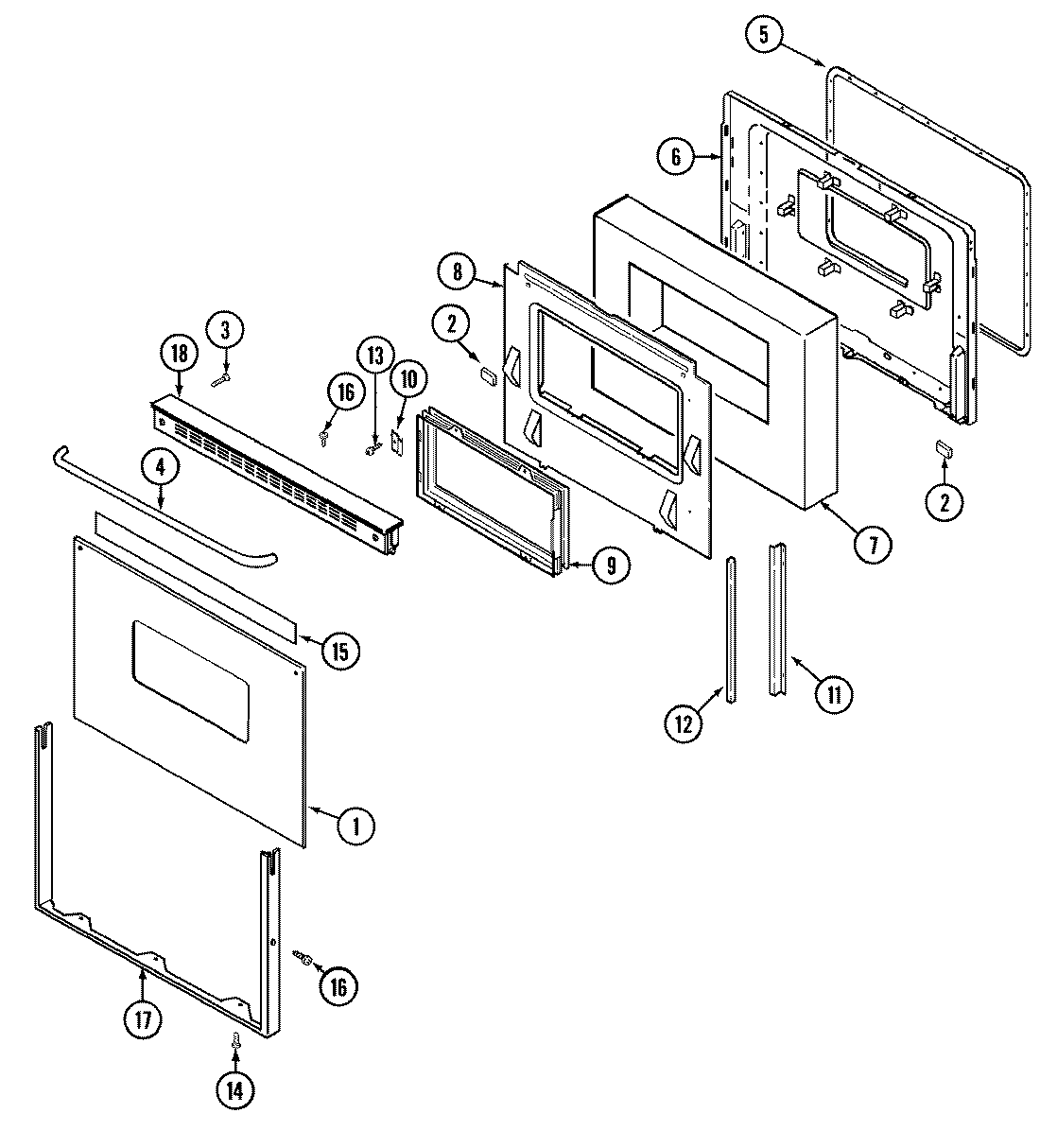

CFE9000ACB 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P361-60
2	MAY 8010P085-60
3	SCREW
5	GASKT-DOOR OVEN
6	MAY 7103P136-60
6	WP7103P114-60 Whirlpool Snap Nut
6	NUT, SNAP (ROUND-WHT)
6	MAY 2402W202-19
6	MAY 2402W209-19
7	MAY 7701P149-60
8	MAY 3601F236-51
9	MAY 7907P021-60
10	MAY 3805F002-34
11	MAY 3818F052-51
12	MAY 7208P002-60
13	MAY 74001449
14	MAY 7101P290-60
15	MAY 8270P078-60
16	WP98008545 Whirlpool Screw
17	MAY 7706P309-60
17	MAY 7706P294-60
18	MAY 7706P305-60
18	MAY 7744P128-60
