CFE9000BCB 03 – DOOR (SER. PRE. 12)

CFE9000BCB 03 – DOOR (SER. PRE. 12)

Written by

in

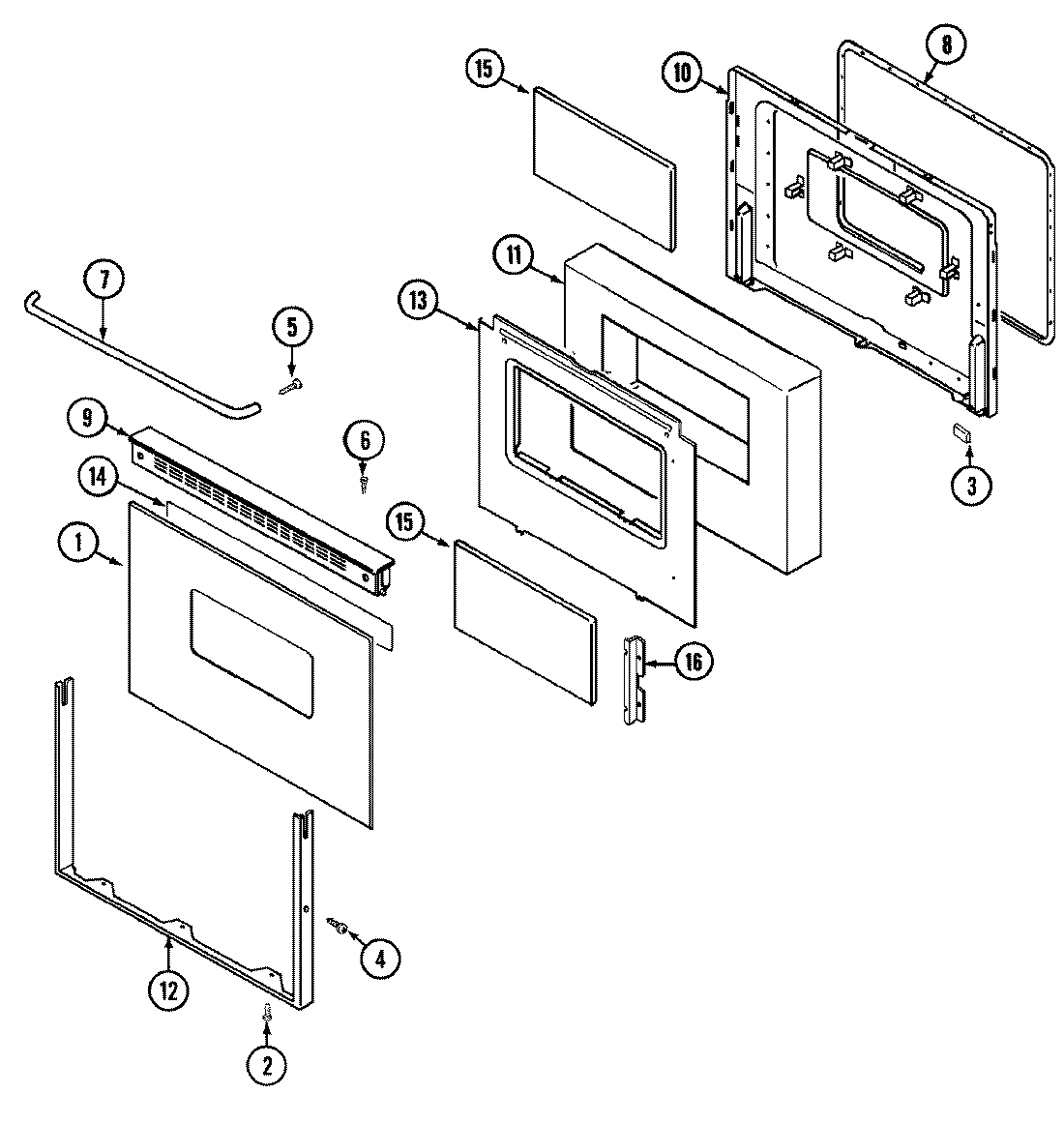

CFE9000BCB 03 – DOOR (SER. PRE. 12)

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
5SCREW
6WP98008545 Whirlpool Screw
7MAY 7701P149-60
8GASKT-DOOR OVEN
9MAY 7706P305-60
10MAY 74003244
10MAY 7103P136-60
10WP7103P114-60 Whirlpool Snap Nut
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
11MAY 74001842
12MAY 7706P309-60
13MAY 74001843
14TAPE, FOIL (3“ WIDE)
15MAY 74001841
16SCREW
16MAY 74001844
