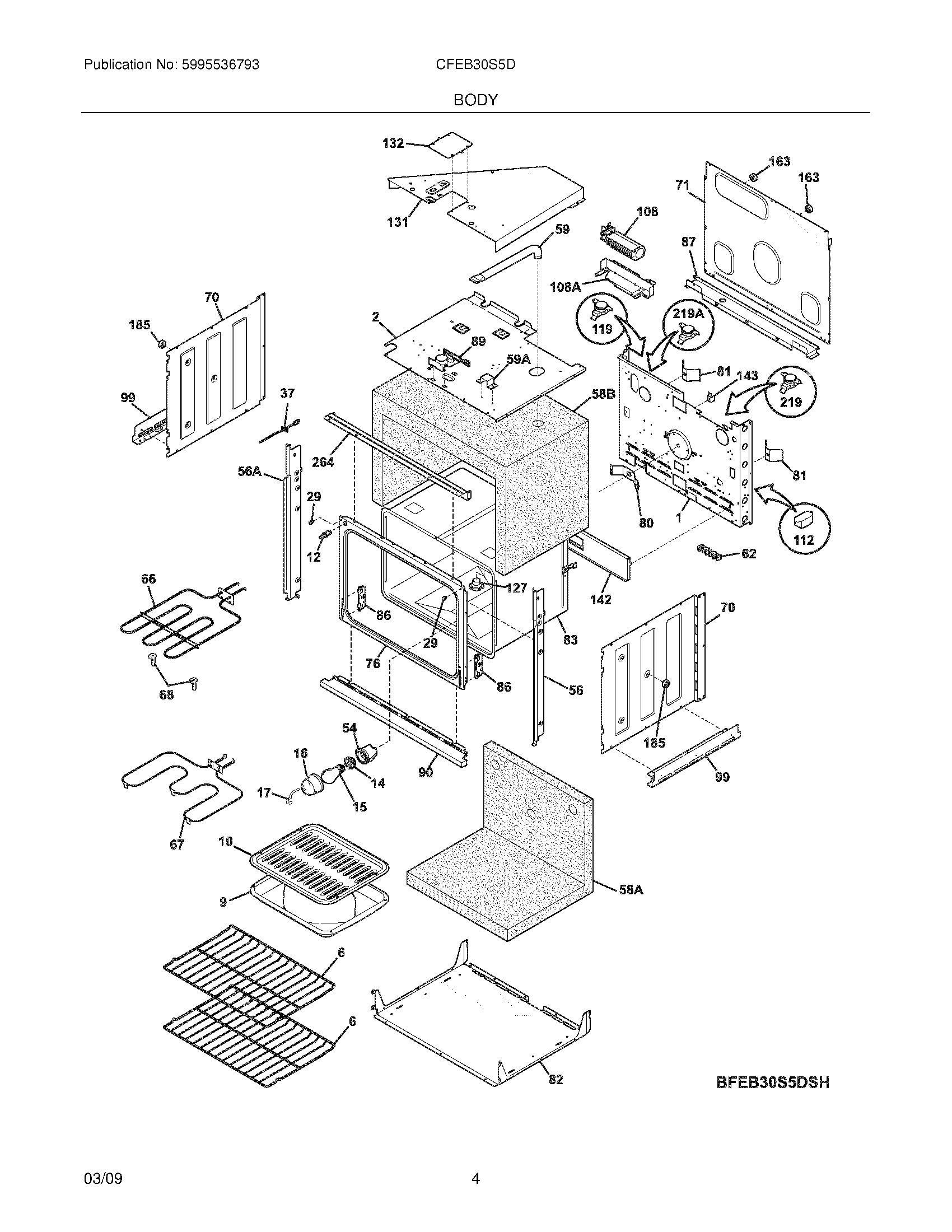

CFEB30S5DB8 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NIWCI 318231754
NI5304480396 Frigidaire Screw
NI5303323139 Frigidaire Oven Screw
NI5304506983 Frigidaire Harness Assembly
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318370375
NI5304461333 Frigidaire Oven Screw
NIWCI 318268099
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304436875 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
1WCI 318259220
2WCI 318258902
6WCI 318345207
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
54WCI 318222400
56AWCI 318903705
56WCI 318903704
58BInsulation,oven wrapper ,back/bottom
58AWCI 318386100
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318255401 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261403
86318561100 Frigidaire Receptacle
87WCI 318260600
89318261230 Frigidaire Oven Motor
90WCI 318259701
99318256201 Frigidaire Oven Bracket
108318073028 Frigidaire Oven Motor
108WCI 318251300
112WCI 318112703
119318004900 Frigidaire Thermal Switch
127318317100 Frigidaire Adapter Assembly
131WCI 318272901
132318003000 Frigidaire Plate
142WCI 318123910
143318172904 Frigidaire Bracket
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
219318003624 Frigidaire Oven High Limit Thermostat
219318003614 Frigidaire Thermostat
264WCI 318257701
