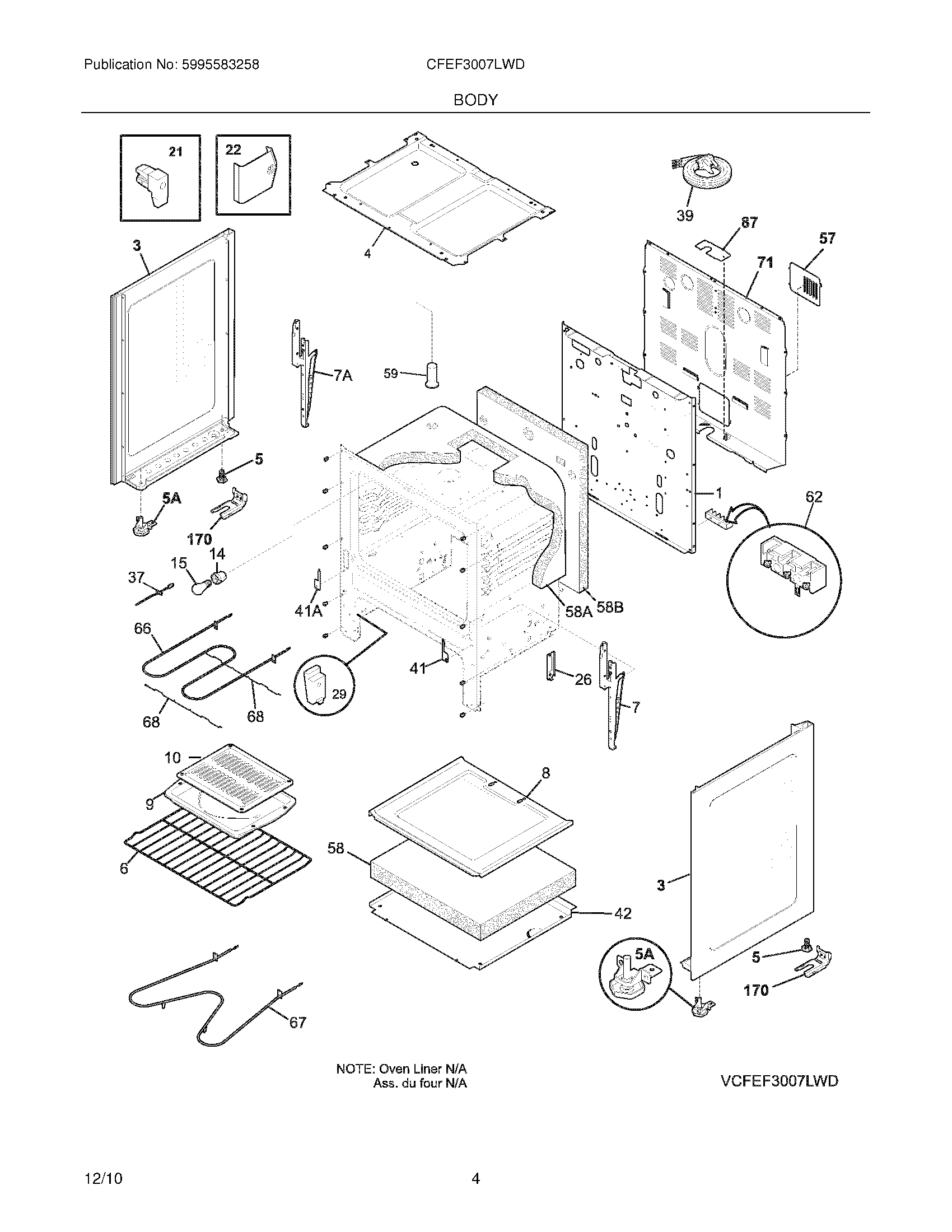

CFEF3007LWD 05 – BODY

CFEF3007LWD 05 – BODY

Written by

in

CFEF3007LWD 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316001017 Frigidaire Screw
NI316210800 Frigidaire Button Plug
NISPACER, SHIELD, REAR WALL
NIWCI 316581300
NI316418901 Frigidaire Oven Screw
NIWASHER-BLACK
NI316205500 Frigidaire Oven Nut
NI5304516151 Frigidaire Oven Harness
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NIWCI 316444100
NI5303289910 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1WCI 316201300
3316400143 Frigidaire Panel
3316400142 Frigidaire Panel
45304522901 Frigidaire M Burner Box
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
7WCI 316566210
7AWCI 316566211
8PANEL, SUMP, OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
29807047102 Frigidaire Oven Front Drawer Glide
37316233903 Frigidaire Range Oven Temperature Sensor
39WCI 318113111
41AWCI 316233500
41WCI 316233400
42SHIELD, WOOL, LOWER
57316457801 Frigidaire Oven Cover
58A316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59316073605 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66316203200 Frigidaire Oven Broil Element 2400W
67316225001 Frigidaire Stove Range Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316422304
87316081202 Frigidaire Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
