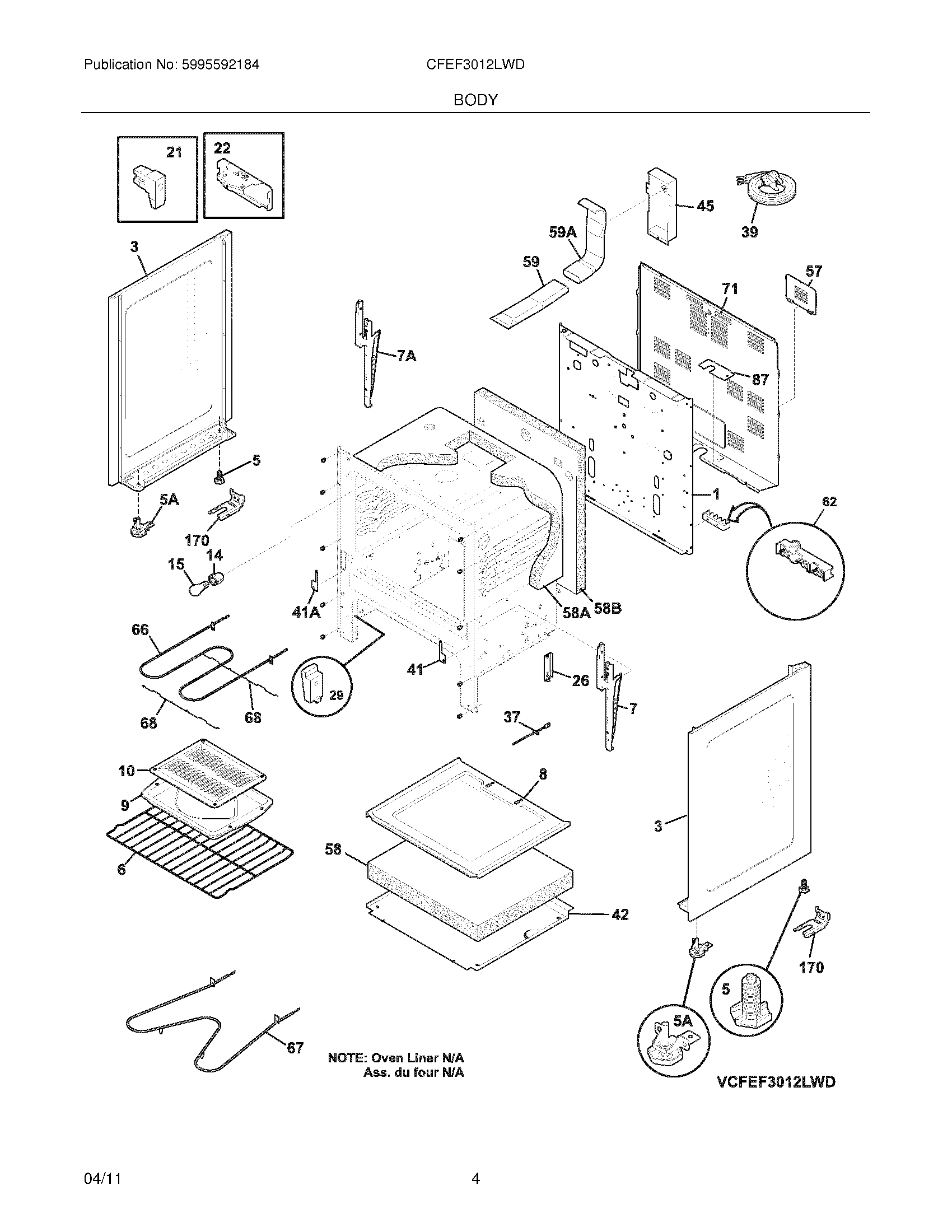

CFEF3012LWD 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316210800 Frigidaire Button Plug
NISPACER, SHIELD, REAR WALL
NI316001017 Frigidaire Screw
NI316205500 Frigidaire Oven Nut
NI5304517513 Frigidaire Harness
NI316418901 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIWASHER-BLACK
NI5303289910 Frigidaire Oven Screw
NIWCI 316444100
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316201300
3316400143 Frigidaire Panel
3316400142 Frigidaire Panel
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316067902 Frigidaire Oven Rack
7AWCI 316566211
7WCI 316566210
8PANEL, SUMP, OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
29807047102 Frigidaire Oven Front Drawer Glide
37316233903 Frigidaire Range Oven Temperature Sensor
39WCI 318113111
41WCI 316233400
41AWCI 316233500
42SHIELD, WOOL, LOWER
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58B316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208201 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66316203200 Frigidaire Oven Broil Element 2400W
67316225001 Frigidaire Stove Range Oven Bake Element
68316203400 Frigidaire Oven Support
71316283204 Frigidaire Oven Shield
87316081202 Frigidaire Bracket
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
