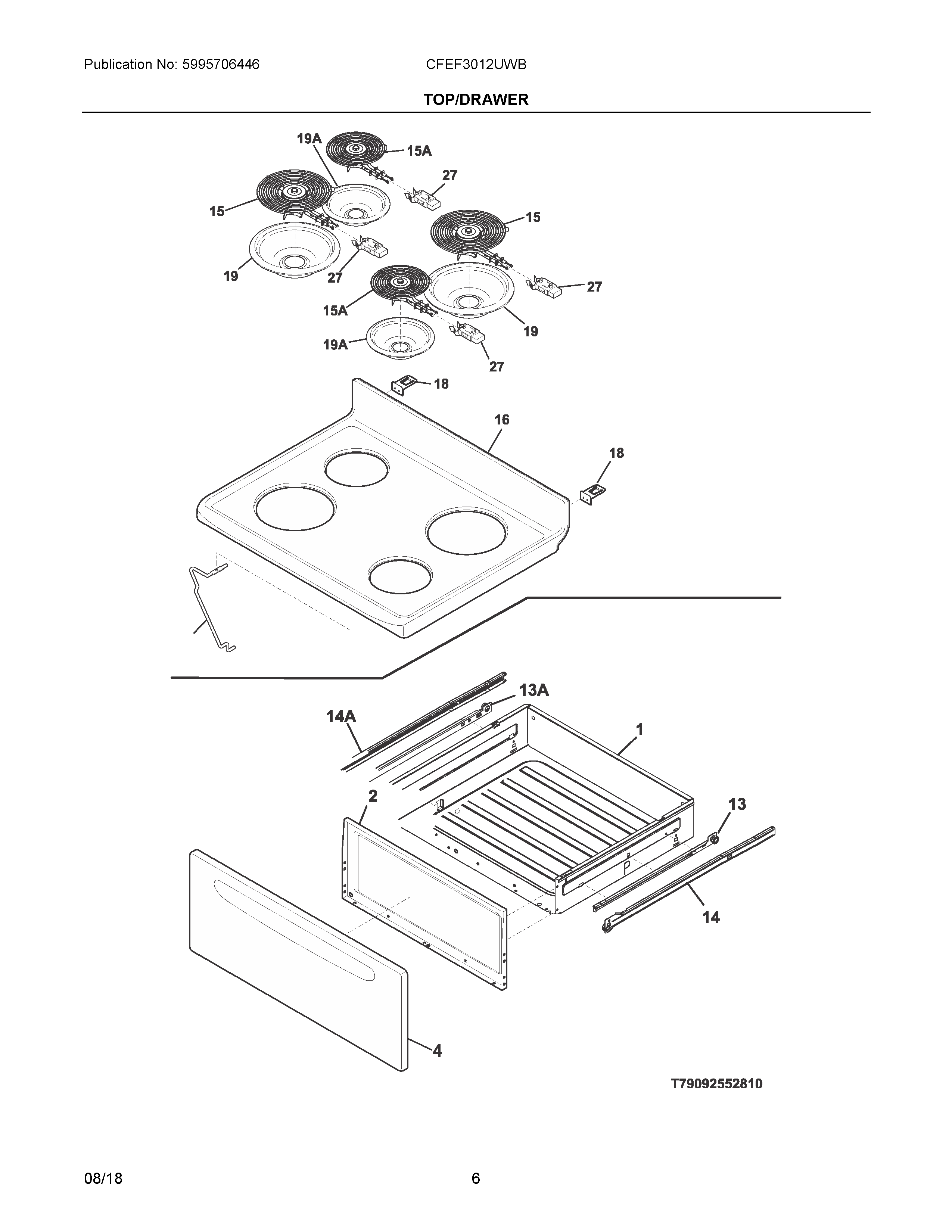

CFEF3012UWB 04 – TOP/DRAWER

CFEF3012UWB 04 – TOP/DRAWER

Written by

in

CFEF3012UWB 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316021132 Frigidaire Screw
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304511288 Frigidaire Oven Liner
4PANEL, DRAWER, WHITE
115304517906 Frigidaire Oven Bracket
13A5304518333 Frigidaire Oven Glide
135304518334 Frigidaire Oven Glide
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
155304516159 Frigidaire Oven Range Limiter Element 8"
15A5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
165304531767 Frigidaire Maintop
17316057601 Frigidaire Oven Rod
18316580800 Frigidaire Hinge Bracket
19AA316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
275304516152 Frigidaire Oven Wiring Harness
695303288565 Frigidaire Screw
