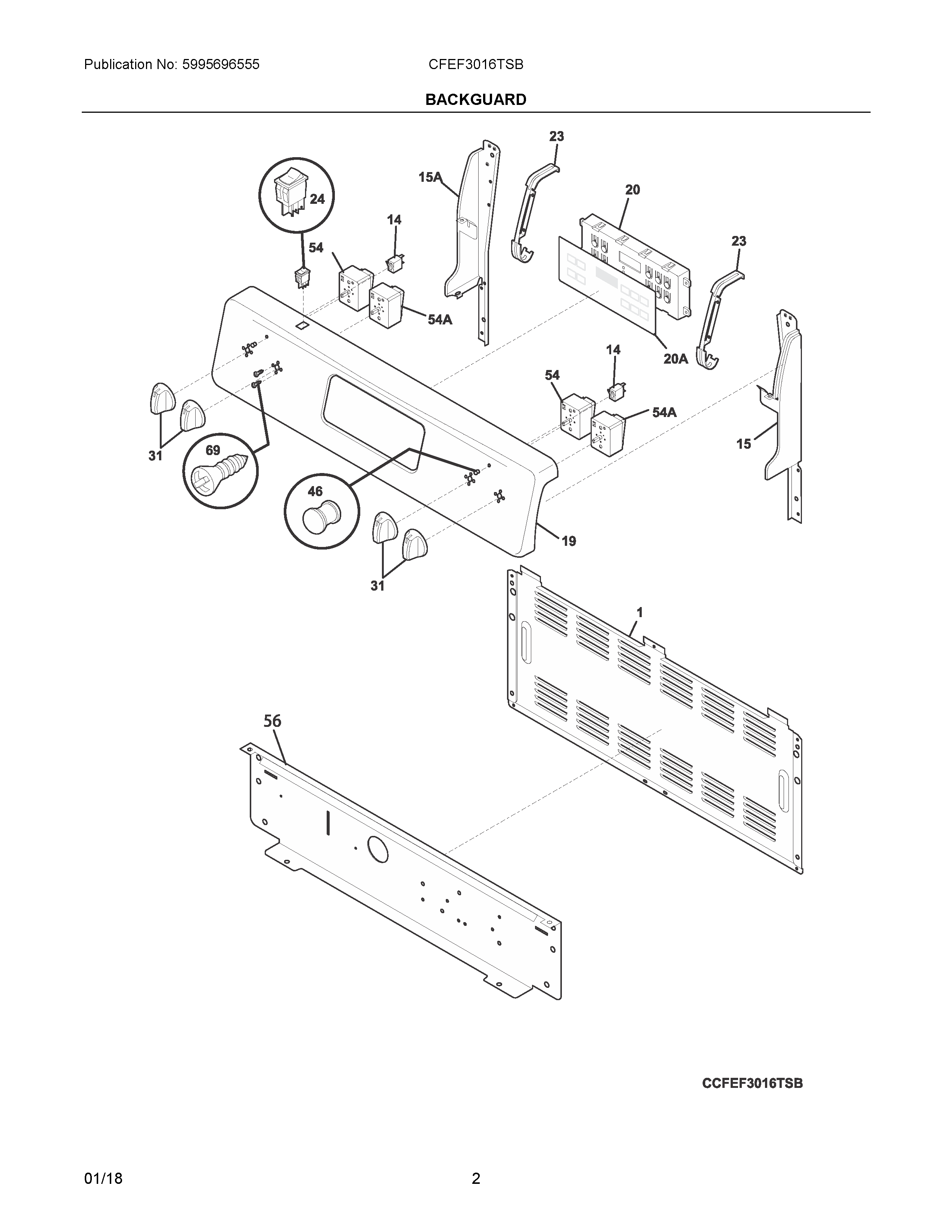

CFEF3016TSB 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	SERVICE TECH SHEET, W/WIRING DIAGRM
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316281802 Frigidaire Oven Shield
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	316602105 Frigidaire Oven Endcap
15	316602104 Frigidaire Oven Endcap
19	PANEL, BACKGUARD, STAINLESS, W/OVERLAY
20A	OVERLAY
20	5304532117 Frigidaire ES300 SC Electric Controller Assembly
23	316441600 Frigidaire Bracket-Clock Mounting
24	5304527841 Frigidaire Oven Rocker Switch (Black)
31	5304508956 Frigidaire Oven Knob
46	WCI 316437900
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
56	316234045 Frigidaire Oven Shield
69	5303288565 Frigidaire Screw
