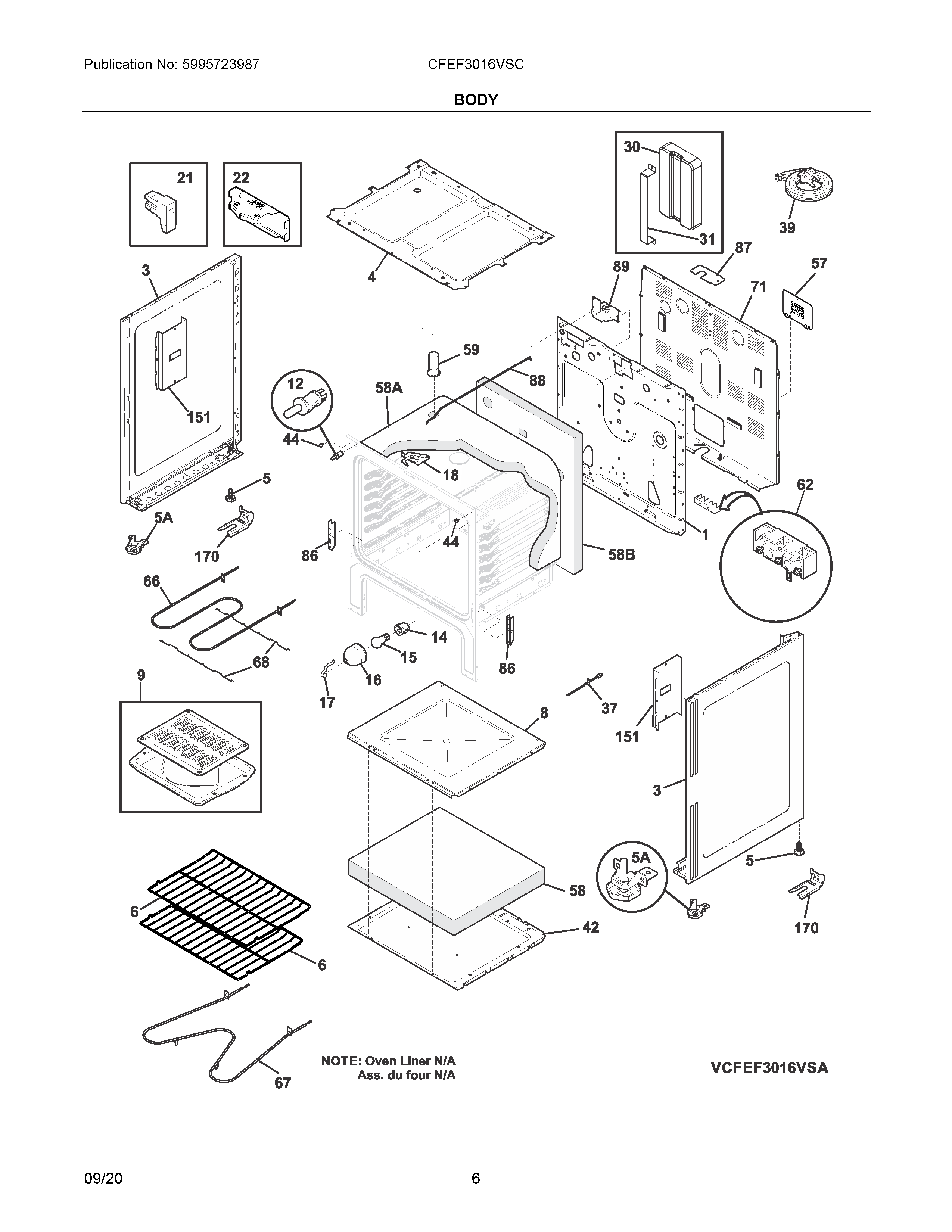

CFEF3016VSC 03 – BODY

CFEF3016VSC 03 – BODY

Written by

in

CFEF3016VSC 03 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316021109 Frigidaire Oven Screw
NIClip,wiring harness ,green ,main top
NI316418901 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIA316418900 Frigidaire Oven Screw
NI316279600 Frigidaire Screw
NIA316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIB316116000 Frigidaire Screw
NI316021132 Frigidaire Screw
NI316282700 Frigidaire Oven Screw
NI5304516158 Frigidaire Oven Harness
NI316260800 Frigidaire Screw-SHOULDER
NI316089500 Frigidaire Oven Screw
NIC5303289910 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316506000 Frigidaire Oven Bracket
1316401806 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
45304522901 Frigidaire M Burner Box
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400601 Frigidaire Oven Range Bottom Panel
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
30COUNTERWEIGHT, CONCRETE BLOCK
31BRACKET, CONCRETE BLOCK
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316400701 Frigidaire Oven Shield
44316517600 Frigidaire Oven Spacer
57316283600 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58A316406604 Frigidaire Insulation
58B316406500 Frigidaire Insulation
59316073606 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316404002 Frigidaire Support Assembly
71316283204 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87316081202 Frigidaire Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
151316404601 Frigidaire Oven Shield
