CFEF3017USA 04 – TOP/DRAWER

CFEF3017USA 04 – TOP/DRAWER

Written by

in

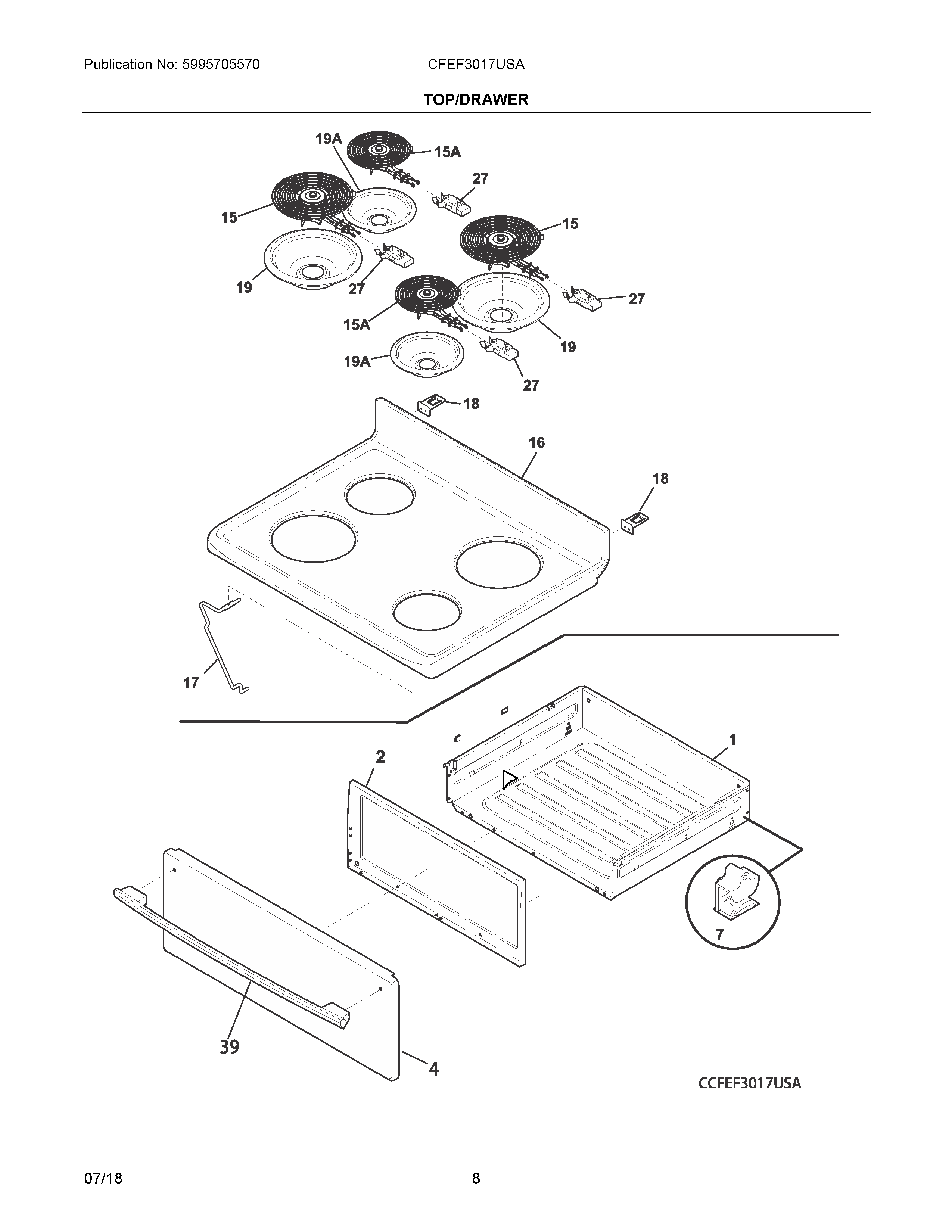

CFEF3017USA 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304510525 Frigidaire Oven Panel
7316407402 Frigidaire Range Drawer Glide
85304490938 Frigidaire Glide Assembly
15A5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
155304516159 Frigidaire Oven Range Limiter Element 8"
16MAIN TOP, BLACK
17316057601 Frigidaire Oven Rod
18316580800 Frigidaire Hinge Bracket
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275304516152 Frigidaire Oven Wiring Harness
395304511565 Frigidaire Oven Handle
695303288565 Frigidaire Screw
