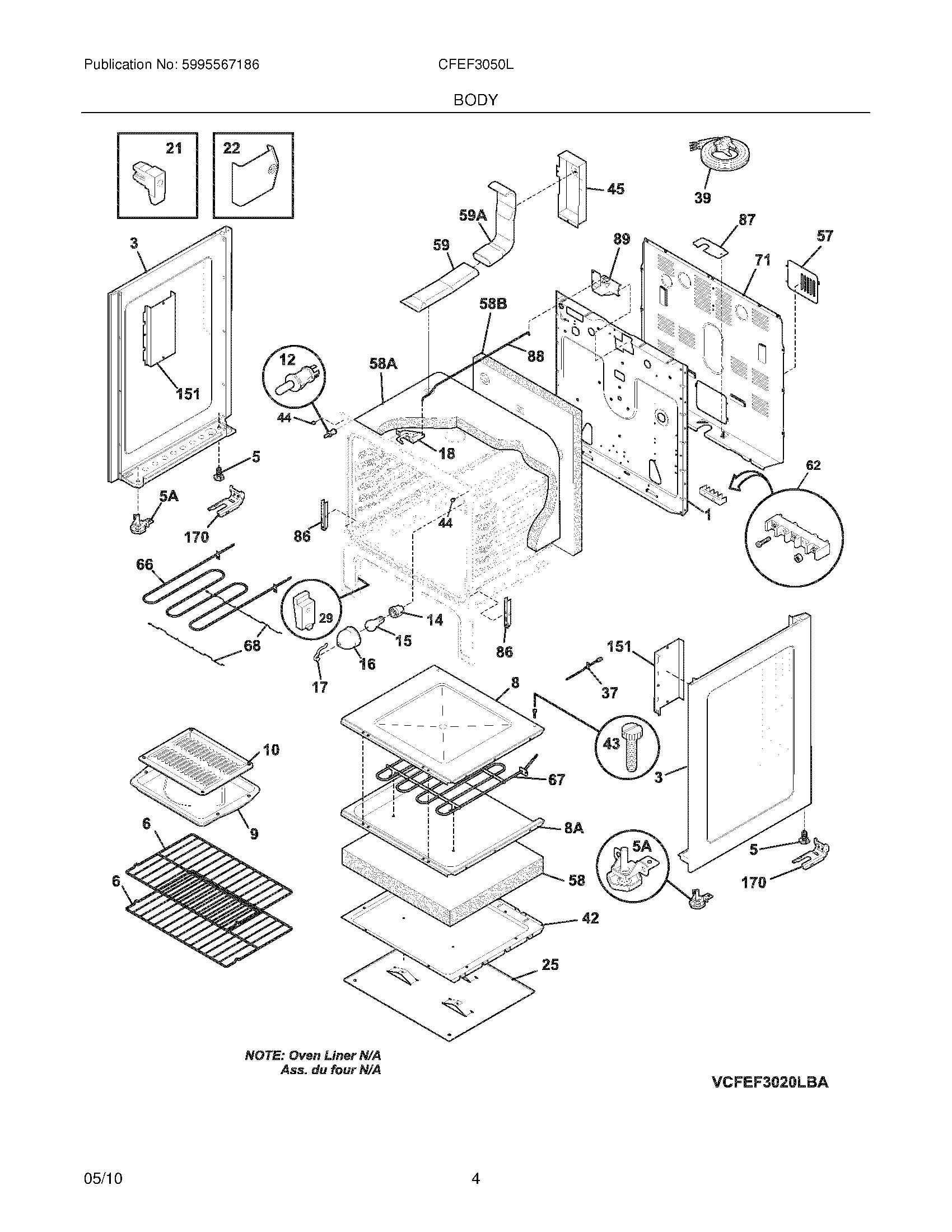

CFEF3050LSA 05 – BODY

CFEF3050LSA 05 – BODY

Written by

in

CFEF3050LSA 05 – BODY

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NIWCI 316580209
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316064600 Frigidaire Oven Support
NI5303285179 Frigidaire Oven Door Screw
1WCI 316401802
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316496201 Frigidaire Oven Rack
8AWCI 316411104
8316400601 Frigidaire Oven Range Bottom Panel
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22WCI 316567600
25316406200 Frigidaire Oven Shield
29807047102 Frigidaire Oven Front Drawer Glide
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316407700 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
57316457801 Frigidaire Oven Cover
58316403802 Frigidaire Insulation
58A316406604 Frigidaire Insulation
58B316406500 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208401 Frigidaire Oven Vent Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66BROIL ELEMENT
67316413800 Frigidaire Oven Range Bake Element
68316404002 Frigidaire Support Assembly
71WCI 316422304
86316441300 Frigidaire Receptacle
87316081202 Frigidaire Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
151WCI 316404600
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
