CFEF3052TSD 04 – TOP/DRAWER

CFEF3052TSD 04 – TOP/DRAWER

Written by

in

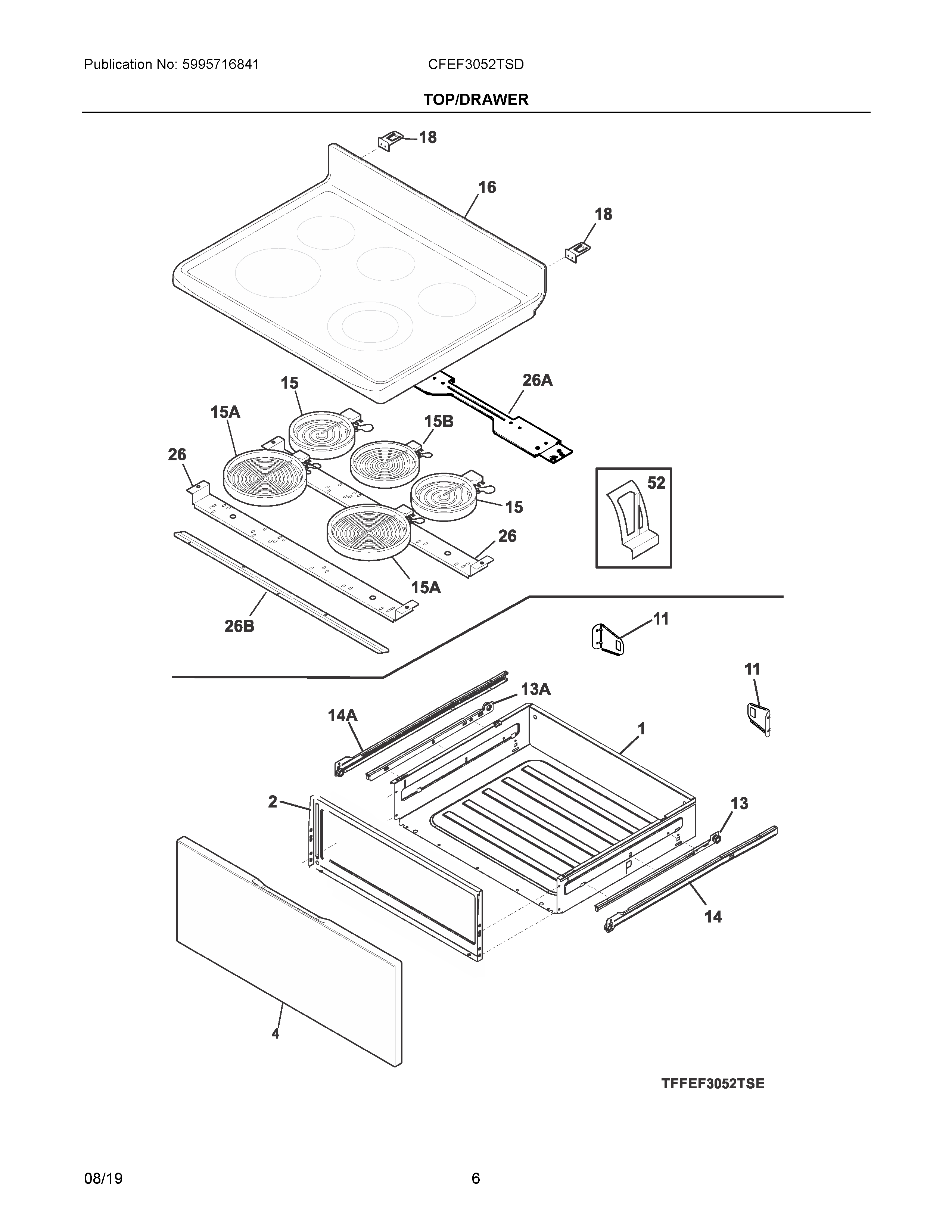

CFEF3052TSD 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304516197 Frigidaire Harness
NI316089500 Frigidaire Oven Screw
NI5308014215 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304511288 Frigidaire Oven Liner
45304509172 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
135304518334 Frigidaire Oven Glide
13A5304518333 Frigidaire Oven Glide
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B5304521951 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
15A5304533520 Frigidaire Element
165304513835 Frigidaire Oven Main Top Glass
18316580800 Frigidaire Hinge Bracket
265304512926 Frigidaire Channel
26A316498200 Frigidaire Oven Bracket
26B316607600 Frigidaire Bracket
52316461700 Frigidaire Oven Clip Assembly
